Build&Code Plus Ebotics : Arduino discovery kit

The Build&Code Plus electronics kit comes with a variety of electronic components to help you build simple, intermediate and advanced projects and learn about Arduino. The kit is suitable for both children and adults. It can be used at home as well as in STEAM (science, technology, engineering, arts and math) related educational institutions.

Arduino is an open source electronic platform that uses simple hardware and software to make it easy to use. It is the most popular platform for creating immersive and home automation projects. The Build&Code Plus electronics kit is for those who want to learn to program in the Arduino programming language.

Build&Code Plus: Free online resources

Access the Build&Code Plus activities HERE, which are designed to help you get familiar with the Arduino programming language and learn how to manage the included electronic components.

Because the Build&Code UNO board is open source, you can find a wealth of free guides and exercises online to help you get the most out of the kit's electrical components. If you have any questions, you can also visit the online Arduino groups.

Build&Code Plus: technical specifications

• Build&Code UNO board (Microcontroller ATmega328P)
• Operating voltage: 5 V
• Input voltage (recommended): 7-12 V
• Input voltage (limit): 6-20 V
• 14 digital I/O pins (6 of them provide PWM output)
• 6 digital I/O pins PWM
• 6 analog output pins
• DC current per I/O pin: 20 mA
• DC current per 3.3 V pin: 50 mA
• Clock frequency: 16 MHz
• Dimensions: 68 x 53 mm
• Weight : 25 g
• Programmable with Arduino IDE and various visual block programming software derived from Scratch
• Compatible with Mac, Windows and Linux

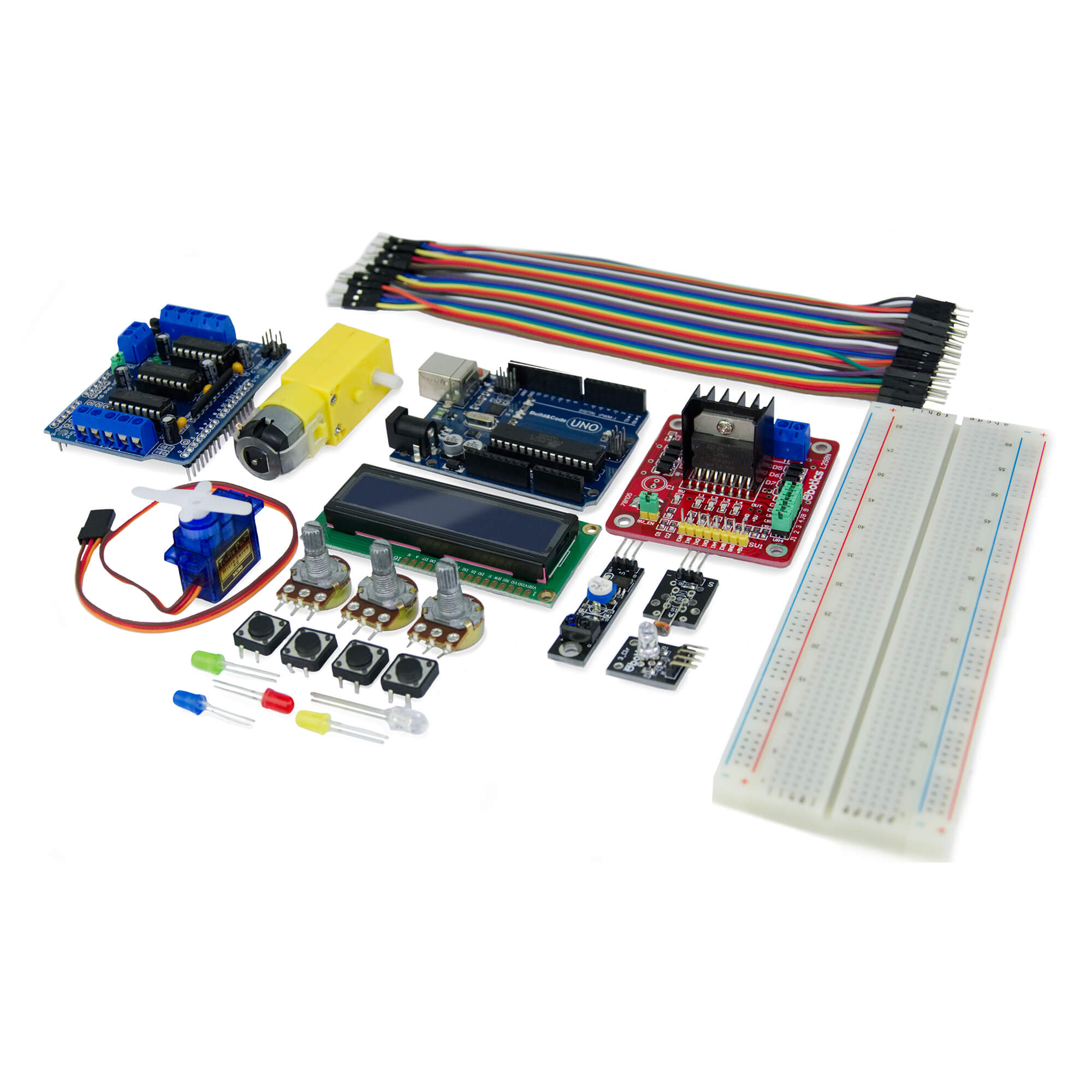

Ebotics Build&Code Plus: contents of the box

• 1 Build&Code UNO R3
• 1 gyroscope sensor
• 1 buzzer
• 1 micro servomotor
• 1 experimentation board with 830 points without soldering
• 1 DC motor
• 40 wires 20 cm 1p-1p male - male
• 1 L293D motor chip
• 1 LCD module 1602
• 6 photoresistors
• 1 analog temperature sensor
• 1 9 V battery connector
• 1 platform for Build&Code UNO R3
• 5 BC547 transistors
• 2 Mosfet transistors IRF520
• 3 potentiometers 10 kΩ
• 10 push buttons
• 1 RGB LED
• 1 white LED
• 8 green LEDs
• 8 red LEDs
• 8 yellow LEDs
• 3 blue LEDs
• 5 LEDs 1N4007
• 5 diodes 1N4007
• 20 resistors 220 Ω
• 5 resistors 560 Ω
• 5 resistors 1 kΩ
• 5 resistors 4,7 kΩ
• 20 resistors 10 kΩ
• 5 resistors 1 MΩ
• 5 resistors 10 MΩ
• 5 capacitors 100 µF
• 5 capacitors 100 nF
• 5 capacitors 100 pF
• 2 optocouplers 4N35
• 1 USB Type A - USB Type B cable
• 1 L293D control shield 2 DC motors
• 1 L298N Dual Bridge DC stepper controller
• 1 ultrasonic distance sensor
• 1 black - white sensor (line tracking)
• 1 RGB LED module
• 2 light sensor shields
• 40 wires 20 cm 1p-1p female - male
