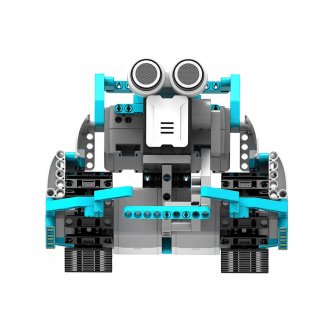

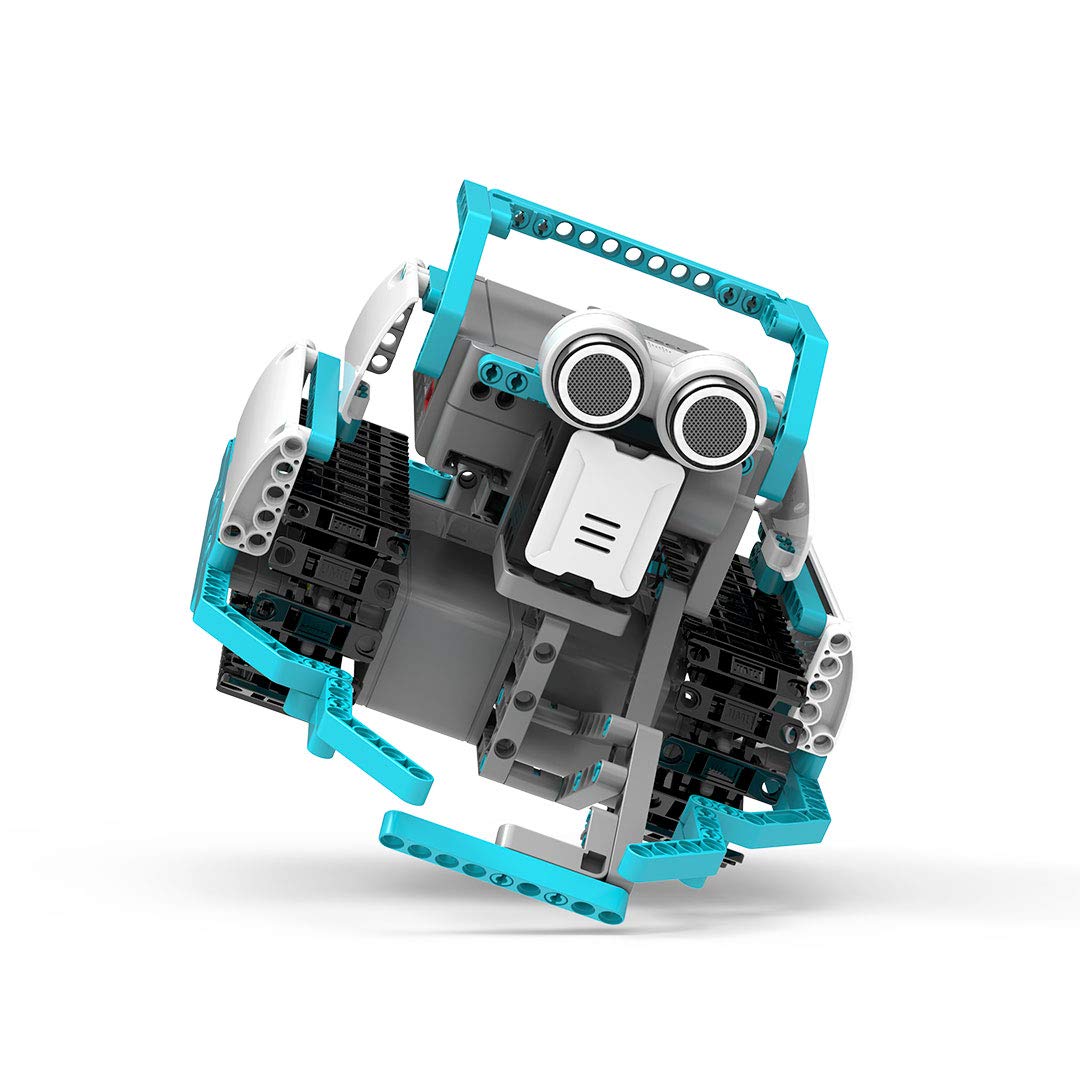

JIMU Robot Scorebot Educational Robot
The Ubtech Scorebot Programmable Educational Robot is an interactive robot capable of playing football. Like the heroes of football fields, the Scorebot robot can shoot, score, dribble and has been officially approved by the Manchester City football team. He will become the football buddy of all children's dreams.
261 parts to create your robot, program it with a Blocky language and learn STEM while having fun.
Scorebot Ubtech: programmable educational robot that plays football
Ubtech is the exclusive robotics partner of the Manchester City football team. The brand has therefore created the Scorebot programmable educational robot, whose movements and possibilities are directly inspired by the sporting spirit of this Ligue 1 football team.
The construction of the Scorebot robot is very visual and intuitive, thanks to the free JIMU robot application. The robot manufacturing experience is intended to be immersive and simplified, in order to be accessible to novices in robotic construction. Just follow the steps for a more entertaining experience. The robot is delivered with 261 plug-in parts, a servomotor, two DC motors, an infrared sensor and of course a football!
The possibilities offered by the Scorebot robot and its programming are numerous:
- 261 plug-in parts, 1 infrared sensor, 1 robotic servomotor with fluid movements and 2 DC motors with fast movements for true STEM training
- Program the robot to dribble, shoot and shoot objects, avoid obstacles and more by using Blockly blocking in the free JIMU application
- Create custom actions with the PRP function (Installation, Recording, Playback)
- No tools required - our 3D animated 360° construction instructions make it easy to assemble robots
- Recommended for children 8 years and older
The PRP memory programming mode allows you to create your own actions, save them with the application and activate them with the application and robot. An excellent tool for beginner programmers.
Technical characteristics of the Scorebot JIMU robot
2A Operation: Temperature
5 ° C
60 ° C CPU master chip: ARM processor
Cortex
M4 32 bits, 64 MHz Memory: 32Mbit Communication: UART & BLE Peripheral interface Charging port: USB Switching port: 3PIN * 1 Motor and servo port and sensor: 3PIN * 8 Battery Type of battery: lithium battery Voltage: 7.4V Servo Quantity: 1pcs Output torque: 4kg.cm Working voltage: 6.5
9.6V Working current: 80
200mA Locked rotor current: 1700mA Speed: 0.1sec / 60 ° Accuracy: without load 1/3 °, load 1 ° Lifetime: 150H Motor Quantity: 2pcs Working voltage: 7.4 V DC (6 ~ 10 V DC) No-load current: ≤180mA Locked rotor current: ≤1.5A Output torque: ≥2kgf.cm No-load speed: 140 ± 10% rpm APP Suppor Android version 5.0 and higher; iOS version 9.0 and higher Accessory Quick Start Guide * 1, USB cable * 1
- 261 PLUG-IN PARTS WITH CONNECTORS
- 1 ROBOTIC SERVOMOTOR WITH FLUID MOVEMENTS
- 2 DC MOTORS WITH FAST MOVEMENTS
- 1 INFRARED SENSOR
- 1 SOCCER BALL
- 1 MAIN CONTROL BOX
- 1 USB CHARGING CABLE
