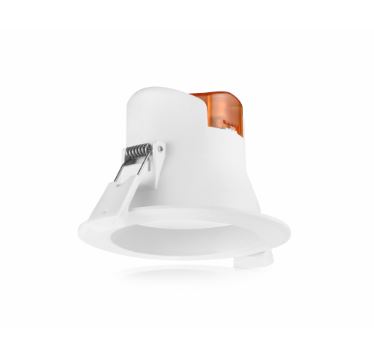

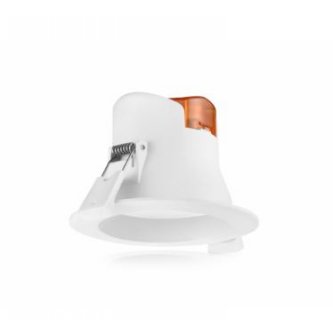

Spotlight GreenLed Downlight IP 44

GreenLed Recessed Spotlight 7W/4 000K And 17W/4 000K
Expert Elec

Downlight luminaire with IP44 protection. Application: wet rooms, changing rooms, porches, canopies. Protection against electric shocks.

Available in 7W / 4 000K or 17W / 4 000K.

> Read more
Order
Site Reference : RA_EXP014
Manufacturer Reference : GLT-DWN-IP44-7W-4KT

Out of stock

Fixed recessed spotlight GreenLed Downlight IP 44

  • Mounting: Can be installed in a false ceiling
  • Power supply: Power supply to the leds by a 50 to 180 mA constant current system (depending on the model) supplied
  • Included: TRIAC dimmable, compatible with Legrand ECO Celian model dimmer code 067083 / or Clipsal LED dimmer
  • Option: BBC waterproof seal, making the downlight RT2012 compatible​

Electrical data

  • LED light source
  • Number of light sources 1
  • Rated voltage 230 V
  • LED type SMD 2835

Luminous data

  • Light color: White
  • Light rendering index: 80
  • Light distribution: 90°.
  • Lighting class: I
  • LED degradation: B10
  • Drop in luminous flux over time: L80
  • Diode lifetime: > 40000 h (Flow maintenance after 40 000h of 90%)
  • Mac Adam: SDCM 5

Mechanical data

  • Mounting type: flush-mounted
  • Flush mounting material: White plastic perimeter type RAL 9003

Certificates and marking

  • Protection class II
  • Energy class A+++
  • CE Certificate

Informative data:

  • Color: White
  • Working temperature range: -20 to +40°C

Protection ratings:

  • IP44
  • K06

Variants :

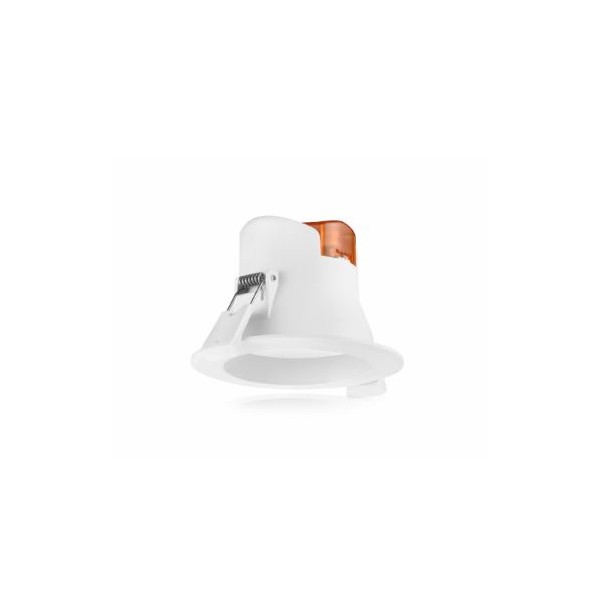

SPOT 7W / 4000K

  • Light source power: 7W
  • Luminous flux of the luminaire (lm): 590
  • Dimmable: TRIAC
  • Color temperature (k): 4000
  • Dimensions outside diameter: 92
  • Dimensions Thickness: 63,5
  • Drilling diameter: 68-80
  • Protection level: IP44
  • Constant current: 50mA​

SPOT 17W / 4000K

  • Light source power: 17W
  • Luminous flux of the luminaire (lm): 1670
  • Dimmable: TRIAC
  • Color temperature (k): 4000
  • Dimensions outside diameter: 174
  • Dimensions Thickness: 78,5
  • Drilling diameter: 144-155
  • Protection level: IP44
  • Constant current: 100mA​
