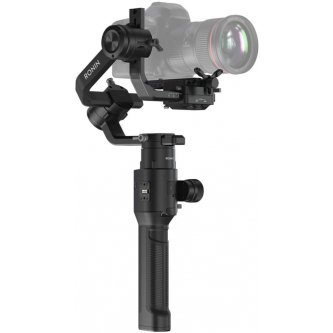

DJI Ronin S Stabilizer

3 Axis Foldable Stabilizer for DSLRs
DJI

The Dji Ronin S stabilizer was created for DSLRs and slightly heavier DSLRs. DJI has seriously addressed the subject and carefully thought about the construction of this stabilizer: foldable stabilizer, rear arm slightly mounted differently from the gimbal, simple and convenient way to mount and balance the camera based on the lever and clamp system, extra tightened handle, which can be an instant deployable tripod, compressed polystyrene case for transport...

The DJI Ronin S stabilizer is available in normal or essential version: see the differences in the tab "Product content".

> Read more
Order
Site Reference : RA_PDA092
Manufacturer Reference : AR0037773

Out of stock

Stabilizer DJI Ronin S

Setting up and balancing a camera as heavy as the Canon EOS 6D on the DJI Ronin-S stabilizer will take no more than 4 to 5 minutes for the first time. After memorizing the settings everything will go even faster.

The different specifics of the DJI Ronin S :

  • Cardan: 3 axes
  • Compatibility: DSRL and digital cameras with interchangeable optics (without mirror)
  • Maximum load: 3.6 kg
  • Communication: Bluetooth 4.0 (with mobile application)
  • Communication with the camera: RSS or USB-C cable
  • Maximum rotation range of the tilt axis: 360 degrees
  • Maximum range of rotation of the roller axis: 360 degrees
  • Maximum range of rotation of the panoramic axis: 360 degrees
  • Battery: integrated (2400 mAh LiPo)
  • Battery life: approx. 12 hours
  • Dimensions: 202 x 185 x 486 mm
  • Weight (without camera): 1.86 kg (4.5 lbs)
  • Additional functions: integrated tripod, profile switch, three operating modes, focus control dial, RSS and USB-C socket for camera control



DJI Ronin S



The control panel is similar to those of the Osmo family of stabilizers with a trigger/recorder and a well-designed joystick to control the gimbal. A button marked with an M will allow you to easily switch between 3 different user profiles. The device can record your preferred settings for particular parameters of the gimbal operation (control speed, Smoothtrack sensitivity...). Dji Ronin-S also has a special sports profile, activated by holding down the same M button.

The DJI Ronin S stabilizer also has a front release, like the previous Osmo stabilizers, which allows :

  • Temporarily lock the cardan shaft position
  • Switch quickly and smoothly between the three operating modes (vertical, horizontal and suspended)
  • Activate camera centering



DJI Ronin S: Highlights

  • Maximum operating speed: 75 km / h
  • Load capacity: 3.6 kg
  • Battery life: 12 hours
  • Imagine, capture and create: DJI's Ronin-S offers video creators the ability to create spontaneous moments with clarity, fluidity and a refreshing perspective. The SmoothTrack function applies to all 3 axes. The Ronin-S has Upright, Underslung and Sport modes.
  • Professional stability: The Ronin-S's detachable and modular design makes it easy to carry in a travel backpack. Thanks to the quick-release design, you can easily mount the camera on the gimbal.
  • Effortless fluidity: The operation of the Ronin-S is simple and intuitive. The motors offer a high torsional stiffness, which allows an active stabilization in accelerated movement.
  • Camera compatibility: Ronin-S supports most DSLR and mirrorless cameras. See the list of compatible cameras here.
  • Innovative design: The innovative design of the Ronin-S raises the camera above the axis of rotation, making the camera screen clear and always in focus.
  • All-in-one control: SmoothTrack technology allows one-handed camera movement. You can switch between user modes by clicking the M button and capture fast moving objects in Sport mode.

Connection with peripherals:

  • Camera support dimensions: Maximum depth from the centre of gravity to the base of the camera: 98 mm; Maximum height from top to bottom of the chamber: 150 mm; Maximum width: 205 mm
  • Accessory port: mechanical: 1/4"-20, 3/8"-16 mounting; M4 mount
  • Power: RB1-2400mAh-14.4V; Type 18650 LiPo; Capacity 2400 mAh; Energy 34,56 Wh
  • Connections: Bluetooth 4.0; USB-C

DJI Ronin S normal version

  • DJI Ronin-S
  • Handle BG37 (integrated battery)
  • Camera mounting plate
  • 3x screws 1/4"-20
  • Lens holder
  • Camera support
  • USB-C cable
  • Self-gripping strap for cardan shaft
  • Storage case
  • Handle/extended tripod (plastic)
  • Focusing wheel
  • IR RSS control cable
  • Multi-camera control cable (type C)

DJI Ronin S version Essentials

  • DJI Ronin-S
  • BG37 Grip (integrated battery)
  • Camera mounting plate
  • 3x screws 1/4"-20
  • Lens holder
  • Camera lift
  • USB-C cable
  • Self-gripping strap for cardan shaft
  • Storage case
  • Handle/extended tripod (plastic)
