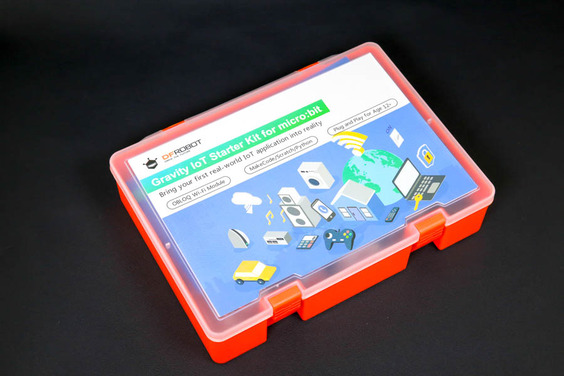

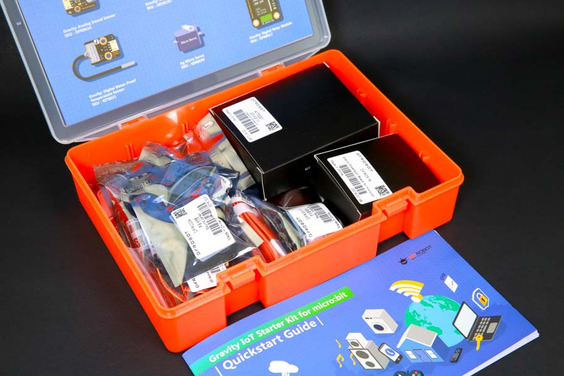

Gravity: IoT Starter Kit for micro:bit
The IoT Starter Kit is an all-in-one package that allows micro:bit novices to quickly get started building Internet of Things applications. The kit includes a micro:bit microcontroller, a Wi-Fi module and seven sensors/actuators often used in real-world IoT applications.
In the MakeCode block editor, you can effortlessly configure the Wi-Fi connection, program your micro:bit and finally interface with your smart devices. To make things even easier and more enjoyable. EasyIoT is a free educational IoT platform that allows members to share and visualise data. This starter kit is compatible with hundreds of DFRobot Gravity Series modules, allowing you to create unlimited IoT applications.
Gravity: IoT Starter Kit for micro:bit
The IoT Starter Kit is an all-in-one package that allows micro:bit novices to quickly get started building Internet of Things applications. The kit includes a micro:bit microcontroller, a Wi-Fi module and seven sensors/actuators often used in real-world IoT applications.
In the MakeCode block editor, you can effortlessly configure the Wi-Fi connection, program your micro:bit and finally interface with your smart devices. To make things even easier and more enjoyable. EasyIoT is a free educational IoT platform that allows members to share and visualise data. This starter kit is compatible with hundreds of DFRobot Gravity Series modules, allowing you to create unlimited IoT applications.
Micro:bit with Internet connectivity
- The package includes a plug-and-play Obloq Wi-Fi module that brings Internet access to the micro:bit.
- Simply enter your Wi-Fi name and password in the code fields to start your Internet connection.
- Obloq GitHub page: github.com/DFRobot/pxt-Obloq
In addition to EasyIoT, Obloq also supports HTTP commands, which allows access to more web applications.
Example: IFTTT webhooks: https://ifttt.com/maker_webhooks
EasyIoT platform
- EasyIoT is a free educational IoT platform for data exchange and visualisation. EasyIoT is accessible through the web browser of your smart device.
- EasyIoT works in a similar way to micro:bit radio communication. The message published on this topic will be received by all micro:bits and smart devices of the same topic. Meanwhile, the communication will be stored in the cloud for later review.
- Messages can be sent and received.
- Data visualisation graphics.
Real-life IoT applications
- The starter kit comes with 7 ready-to-use modules that are widely used in real-life IoT applications.
- Example: controlling and monitoring the air conditioning of a house via the Internet.
Gravity: IoT Starter Kit for micro:bit features and resources
Specificities
- Power supply: MicroUSB (5V)
- Operating voltage: 5V
- Maximum current: 1500mA
- Working temperature: 0-60 ℃
- Package size: 250*190*57 mm /9.84 * 7.5 *2.24 inches
- Weight: 492g

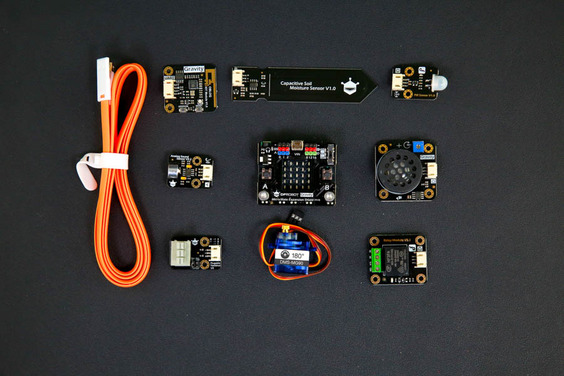

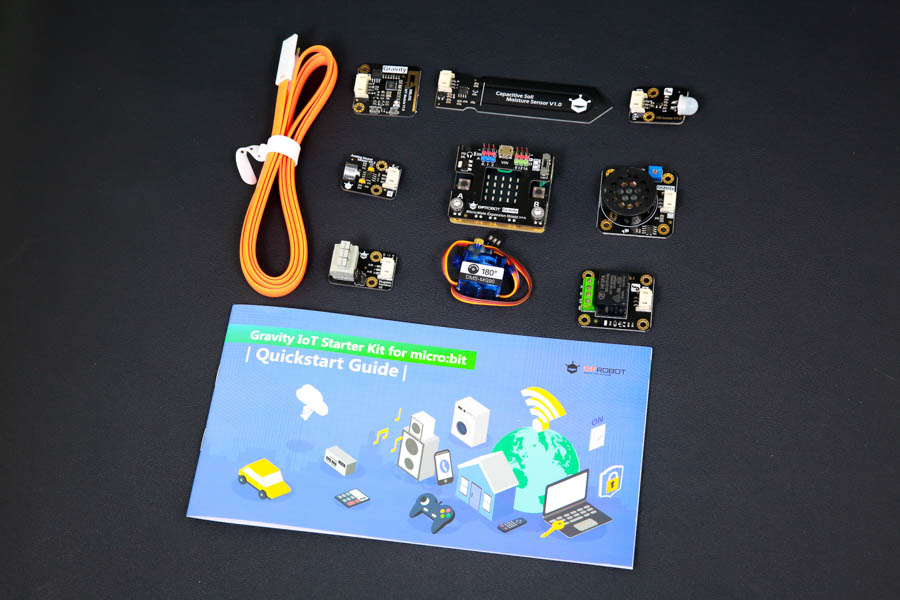

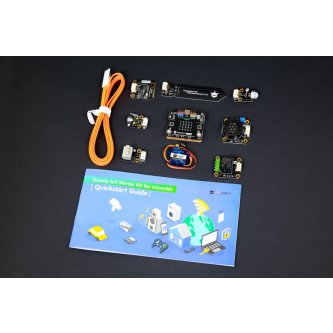

Resources
- QuickStart Guide*1
- micro:bit *1
- Micro:Mate Expansion Board*1
- Obloq Wi-Fi Module*1
- Analog Capacitive Soil Moisture Sensor *1
- Waterproof DS18B20 Sensor Kit *1
- Digital PIR (Motion) Sensor*1
- Digital 5A Relay Module*1
- Digital Speaker Module*1
- Analog Sound Sensor For Arduino*1
- 9g Metal Gear Micro Servo *1
