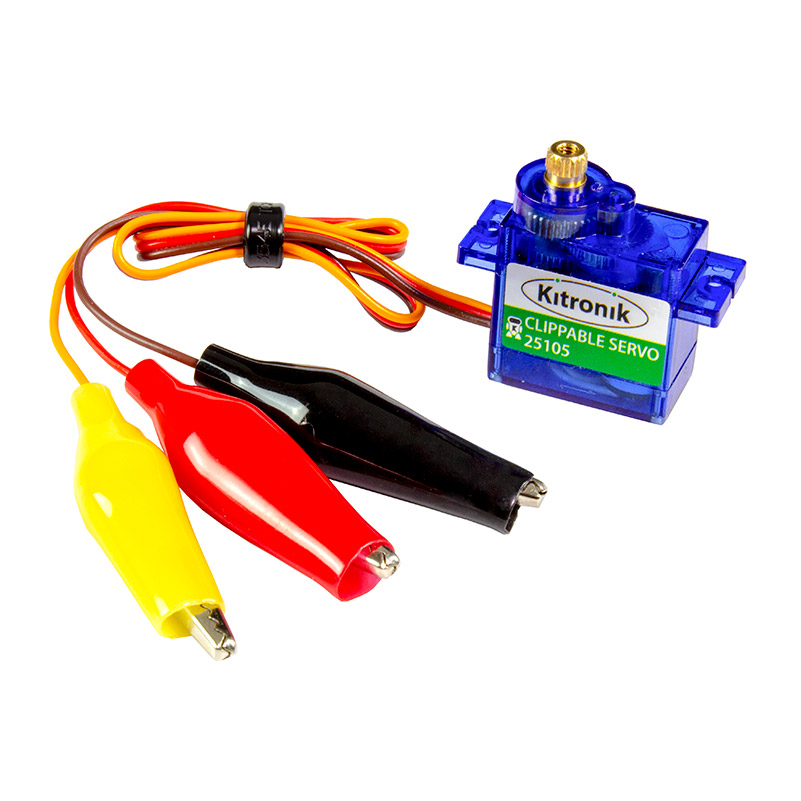

Kitronik Clippable Servo

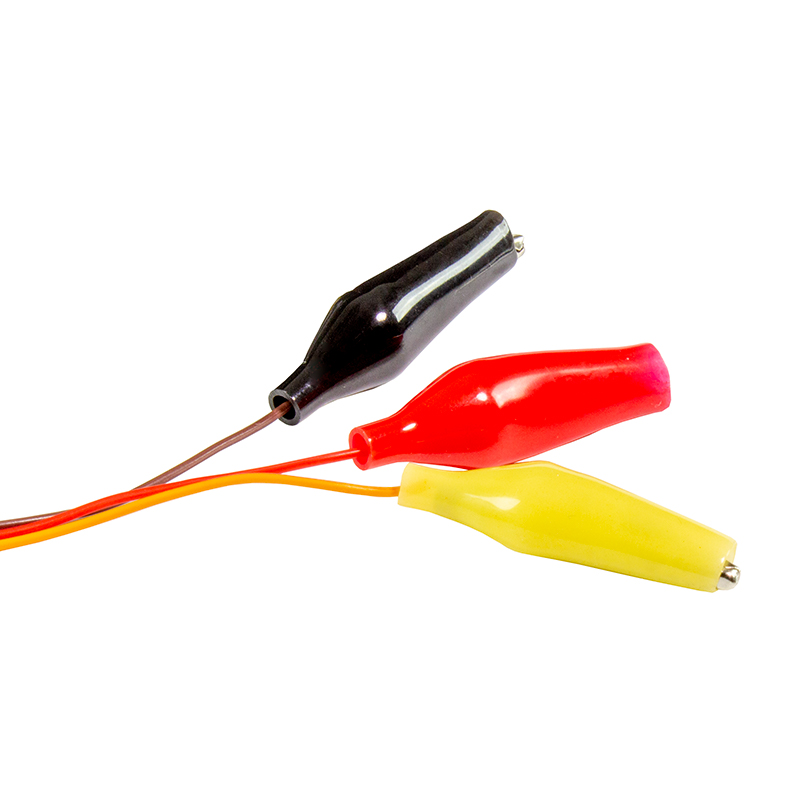

The normal pin header on this new clippable servo has been replaced with incredibly handy crocodile clips. This enables it to be utilized in projects with additional clippable connection points, such as those that employ the Kitronik Klip Motor Driver.
The 180-degree rotation servo is based on the Feetech FS90MG-CL and has metal gears, which are more dependable and durable than plastic versions. The servo is rated to operate between 4.8V and 6V, resulting in output torque ranging from 1.8kg to 2.2kg. A separate power source is necessary if the clippable servo is utilized in micro:bit applications. Power may be drawn straight from the Klip motor driver board if you use the Kitronik Klip Motor Driver.
Clippable servo by Kitronik
The normal spindle head of this new clip-on servo has been replaced with incredibly convenient alligator clips. This allows it to be used in projects with additional clip-on connection points, such as those using Kitronik's Klip Motor Driver.
The 180 degree rotation servo is based on the Feetech FS90MG-CL and has metal gears, which are more reliable and durable than plastic versions. The servo is designed to operate between 4.8 and 6 V, with a torque output of between 1.8 and 2.2 kg. A separate power supply is required if the clip-on servo is used in micro:bit applications. Power can be taken directly from the Klip motor driver board if using the Kitronik Klip motor driver.
The servo can rotate about 180 degrees, or about 90 degrees in each direction, and is compatible with any standard 180 degree servo code/library. It can be programmed using MakeCode or Python editors, making it suitable for beginner and expert level microbit applications.

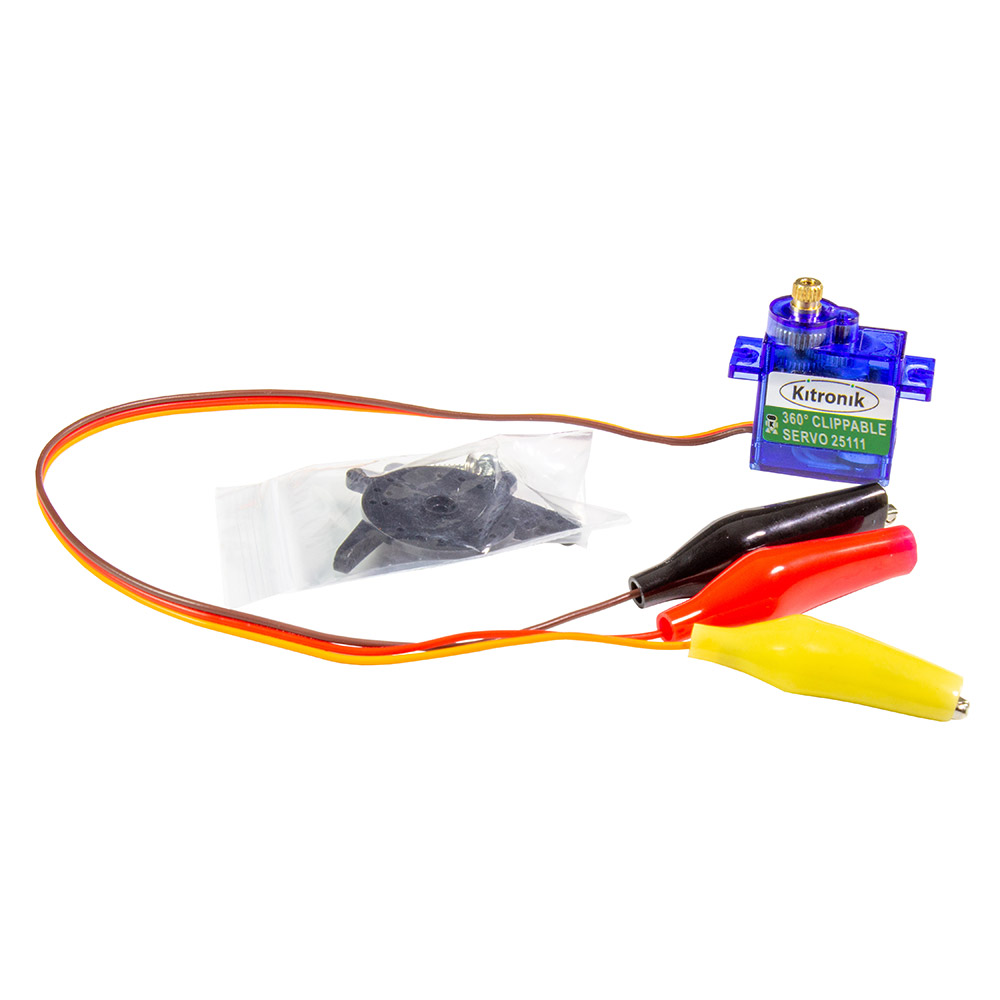

The servos come with four horns and the necessary accessories, so you should be able to incorporate them into your projects with ease and without the need to build custom horns.
Please bear in mind that this servo needs a separate power source from the micro:bit that controls it. Trying to power this servo directly from the micro:bit is likely to cause irreversible damage to the micro:bit.
- The normal pin head on the clip-on servo has been replaced by incredibly handy alligator clips.
- Small and compact, but with a high power output of 1.8kg at 4.8V and 2.2kg at 6V.
- Metal gears for durability and strength.
- It can be programmed using MakeCode or Python editors.
- Suitable for RC models and robotics projects.
- There are 180 degrees of rotation, 90 degrees in each direction.
- Operating voltage 4.8V - 6V
- Kitronik's clip-on micro:bit accessories, such as the Kitronik Klip Motor Driver, can be used with it.
Kitronik clip-on servo: content and resources
Contents :
- 1 x Kitronik Clippable Servo with 4 horns and fixings.
Resources :
- 1 x Kitronik Clippable Servo with 4 horns and fixings.
