Kitronik Linear Actuator Kit

Linear Actuator Kit Kitronik

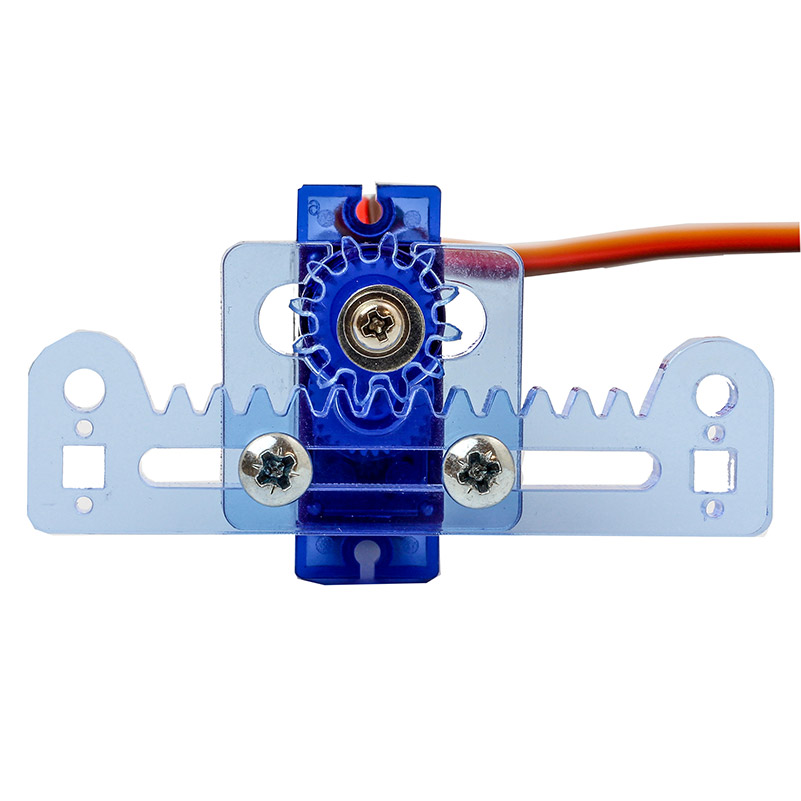

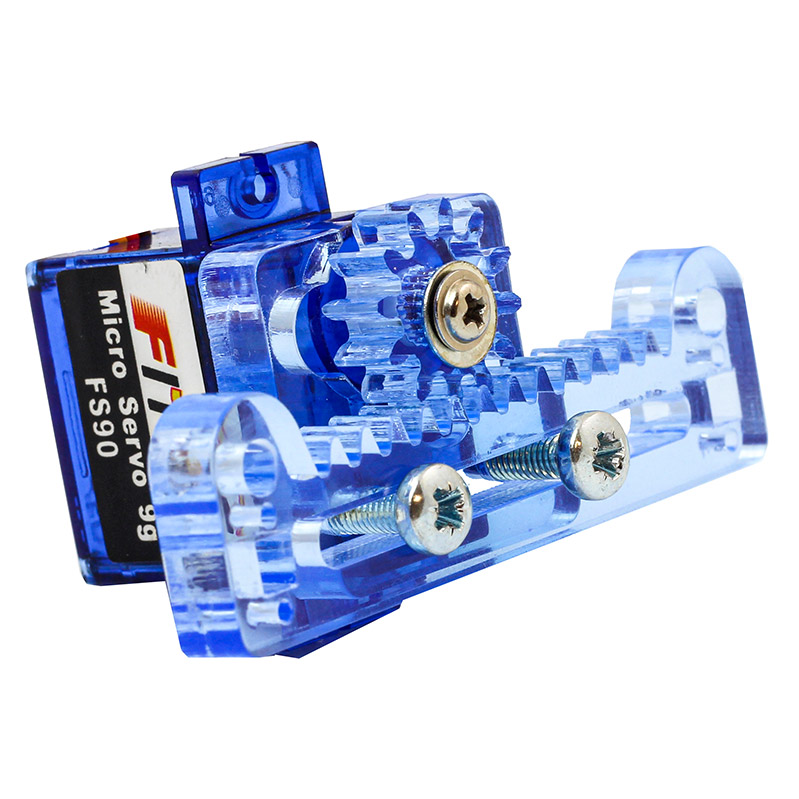

This innovative linear actuator transforms the circular movement of a 180 degree servo (supplied) into a straight movement in one direction and then the other. It can be attached to a project and move horizontally or vertically.

Linear actuators are useful for a wide range of applications including robotics, automatic button switching, steering racks for buggies, a model railway switch, diorama animation, etc. Linear actuators are also widely used in industrial and consumer items, including valves, cams, floppy disk drives and optical disc drives, to name a few.

The linear actuator is made from 5mm clear blue Perspex sheet, which is also used in our Klaw servo-powered clamp. At each end of the rack there are a variety of mounting holes, including a 3mm hole, a 3mm square, and typical servo horn holes suitable for wire (1mm diameter), and it has approximately 20mm of movement. It has a gear ratio of 2:3, and the associated servo has a stall torque of 1.5kg/cm at 6V and 1.3kg at 4.8V.

• The linear actuator transforms the circular motion of a 180 degree servo (supplied) into straight line motion.
• It is supplied with a 180 degree FS90 servo and mounting hardware.
• Robotics, switching, animated displays and other applications benefit from this technology.
• For use with microbit, Arduino or RaspberryPi boards.

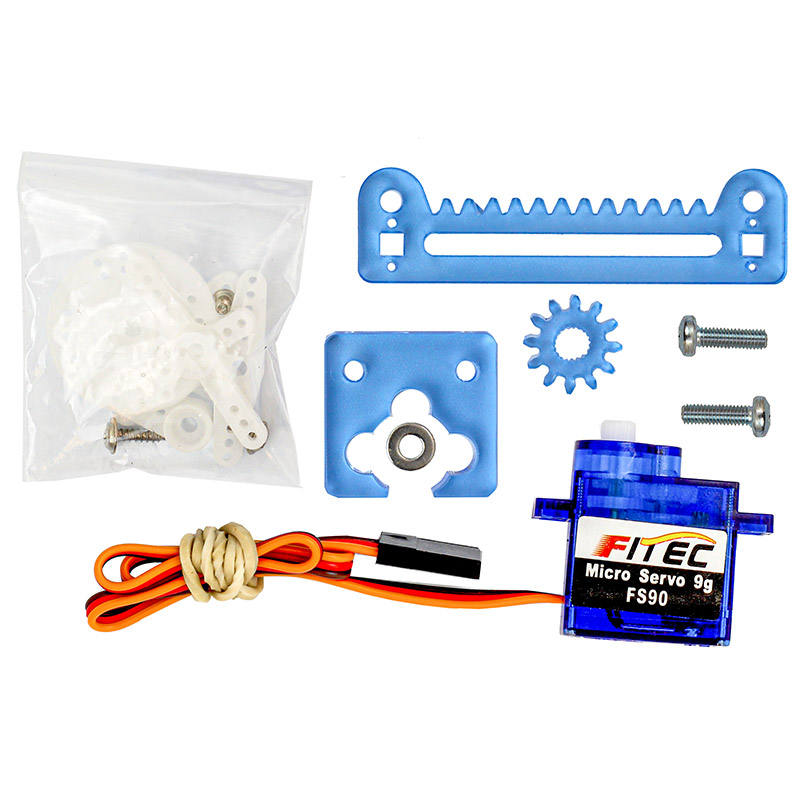

Kitronik linear actuator kit: contents

• Linear Actuator Laser Cut Parts.
• 1 x Micro 180 Degree Servo and fixings.
• 2 x M3x 10 Pozi PanSteel M/C.
• 1 x M3 Form A Steel Washer.
• Linear Actuator assembly Instructions.
• Small Phillips Screwdriver required
