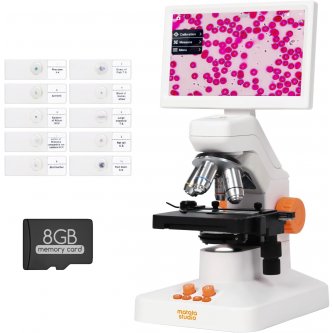

Digital Microscope MT3-5 MatataStudio
The MatataStudio MT3-5 is a digital microscope featuring a rotatable 7-inch IPS touchscreen, four objectives and digital magnification of up to 1600x, equipped with an 8MP camera, dual LED lighting and a precise mechanical X-Y stage.
HDMI, USB and Wi-Fi connectivity with the MatataXplore app for advanced measurement and data export to Excel.
MatataStudio MT3-5 7-inch 1600x WiFi touchscreen digital microscope for classrooms and laboratories

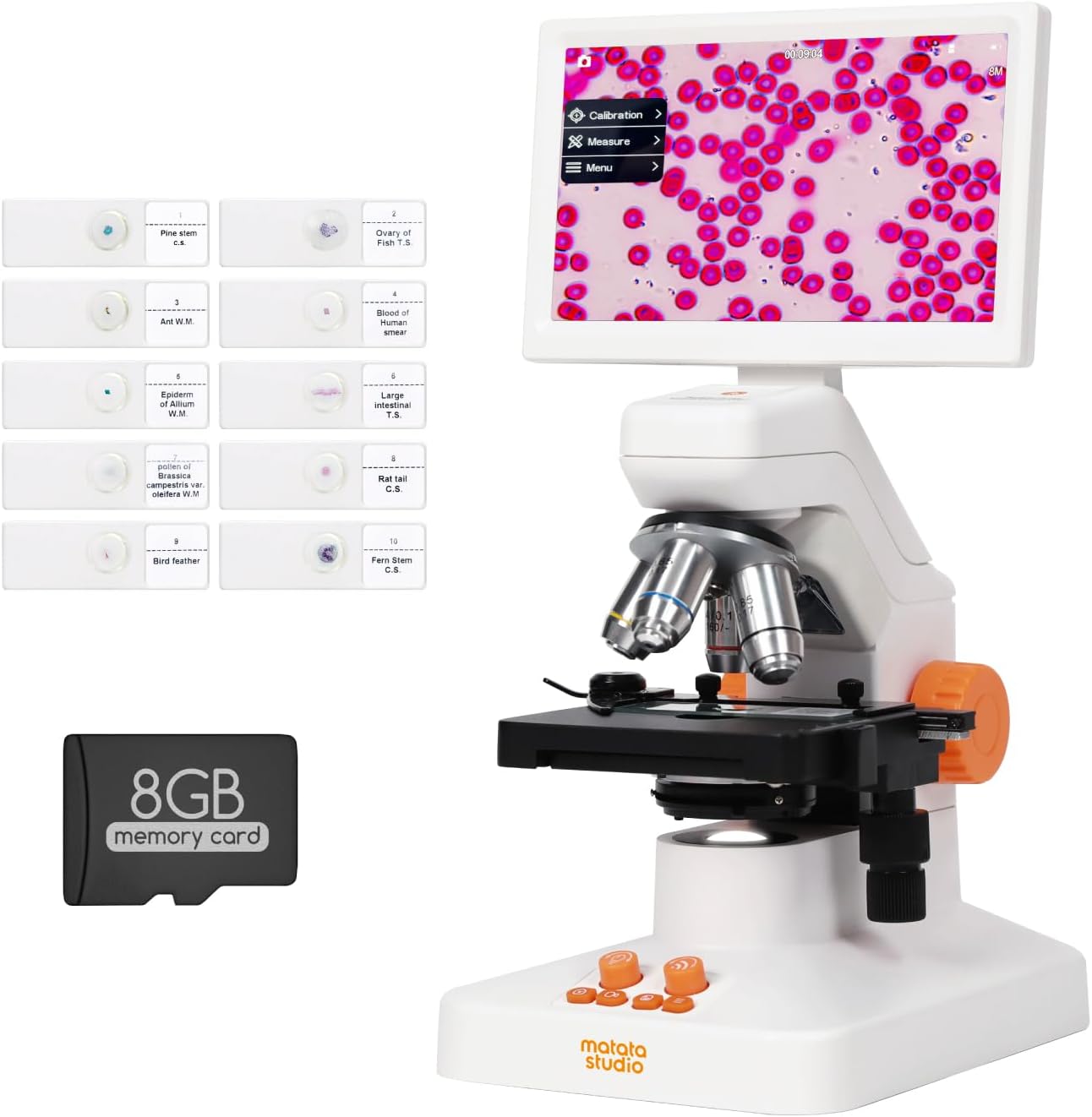

The MatataStudio MT3-5 is a digital biological microscope featuring a 7-inch 1080P IPS touchscreen that rotates 135° for easy sharing of observations. It can be used straight away without any installation. Equipped with four objectives (4x, 10x, 40x and 60x) and an 8MP sensor, it achieves a maximum digital magnification of 1600x displayed on screen, allowing you to observe living cells, bacteria, pollen or paramecia. Its mechanical X-Y stage with 1.0 mm resolution allows for precise sample positioning.2>
The dual LED lighting system (top transmitted light, bottom incident light) allows for the observation of both opaque objects and transparent samples. It offers a touch-based measurement function directly on the screen or via the MatataXplore app to measure radius, length, angle and distance, with data export to Excel. It takes photos and videos in 1080p HD and connects via HDMI, USB or Wi-Fi to a phone, computer, tablet, television or projector; it is compatible with Android, Windows and iOS. Its actual viewing angle is 178°.
MatataStudio MT3-5 digital microscope, 7-inch touchscreen, 1600x magnification, 8MP camera and Wi-Fi for laboratories and classrooms.
What the MT3-5 offers for scientific observation in the classroom and laboratory

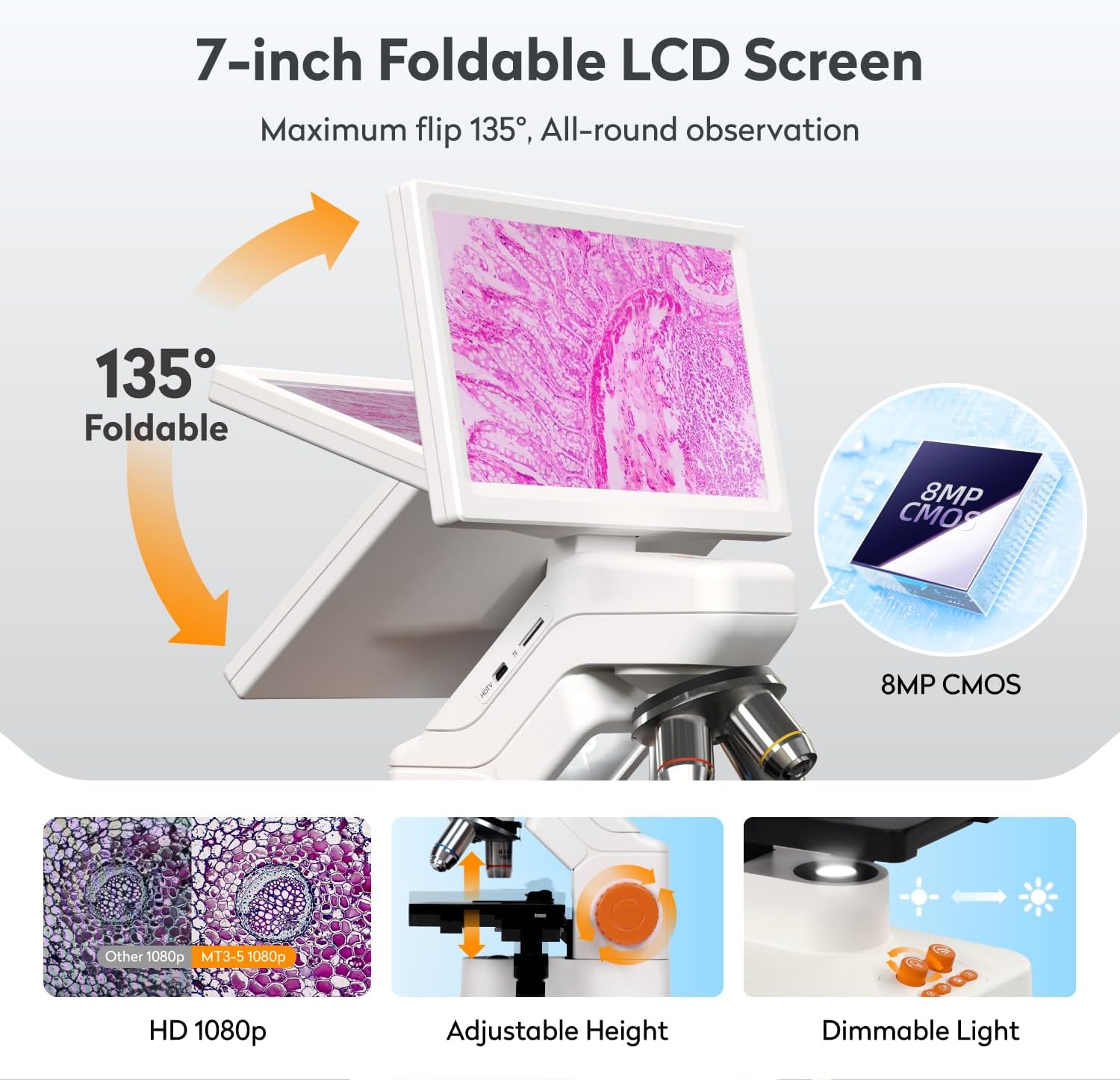

- 7-inch 1080P IPS touchscreen, rotatable by 135°, for sharing observations without an eyepiece

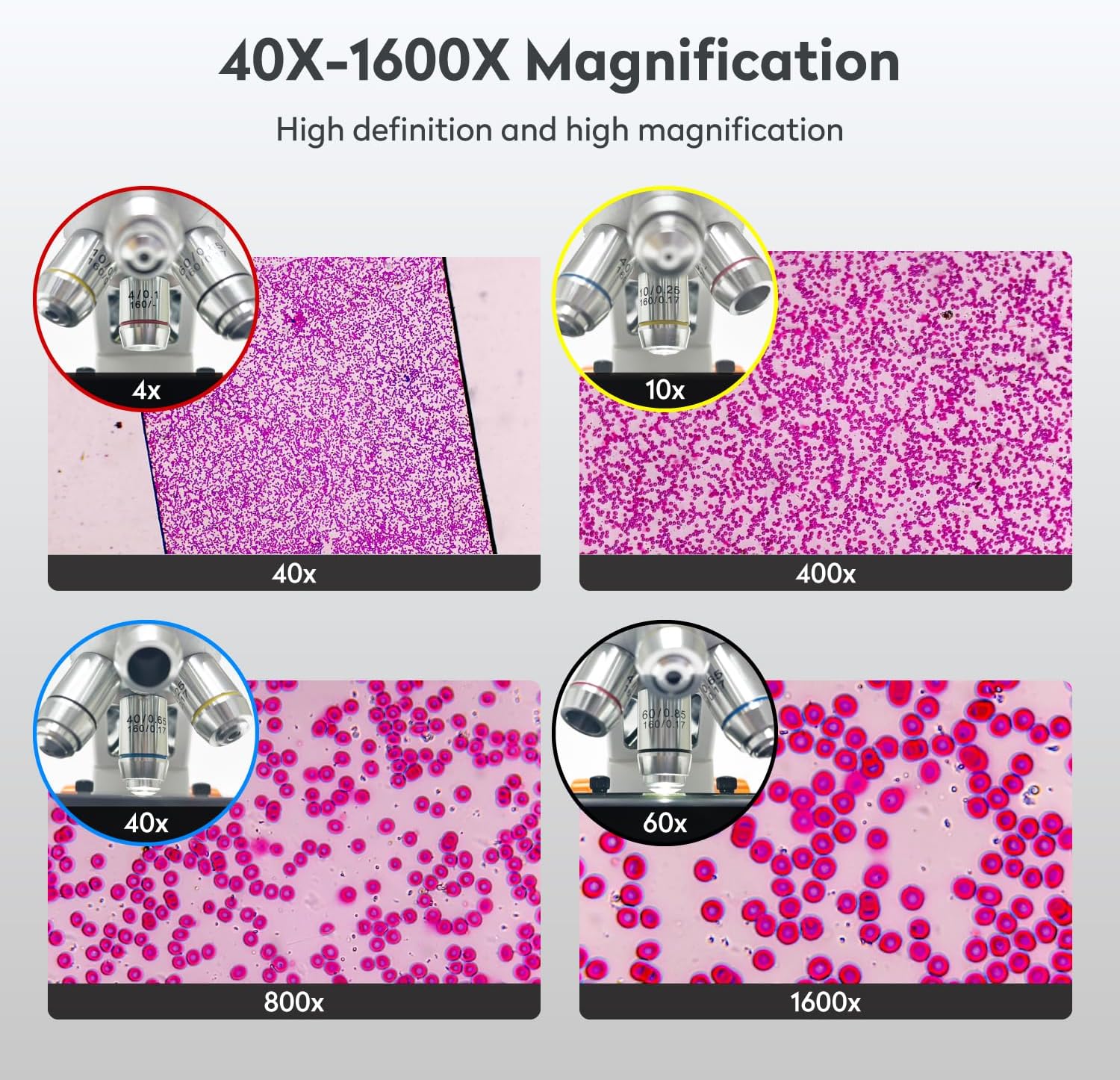

- 4 achromatic objectives (4x, 10x, 40x, 60x) with digital magnification up to 1600x
- Built-in 8MP camera for 1080P HD photos and videos

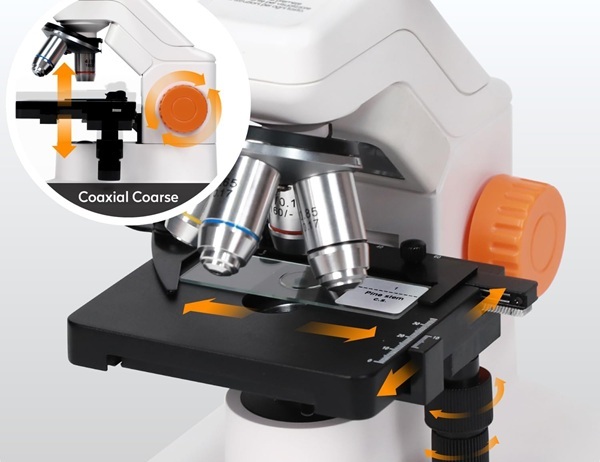

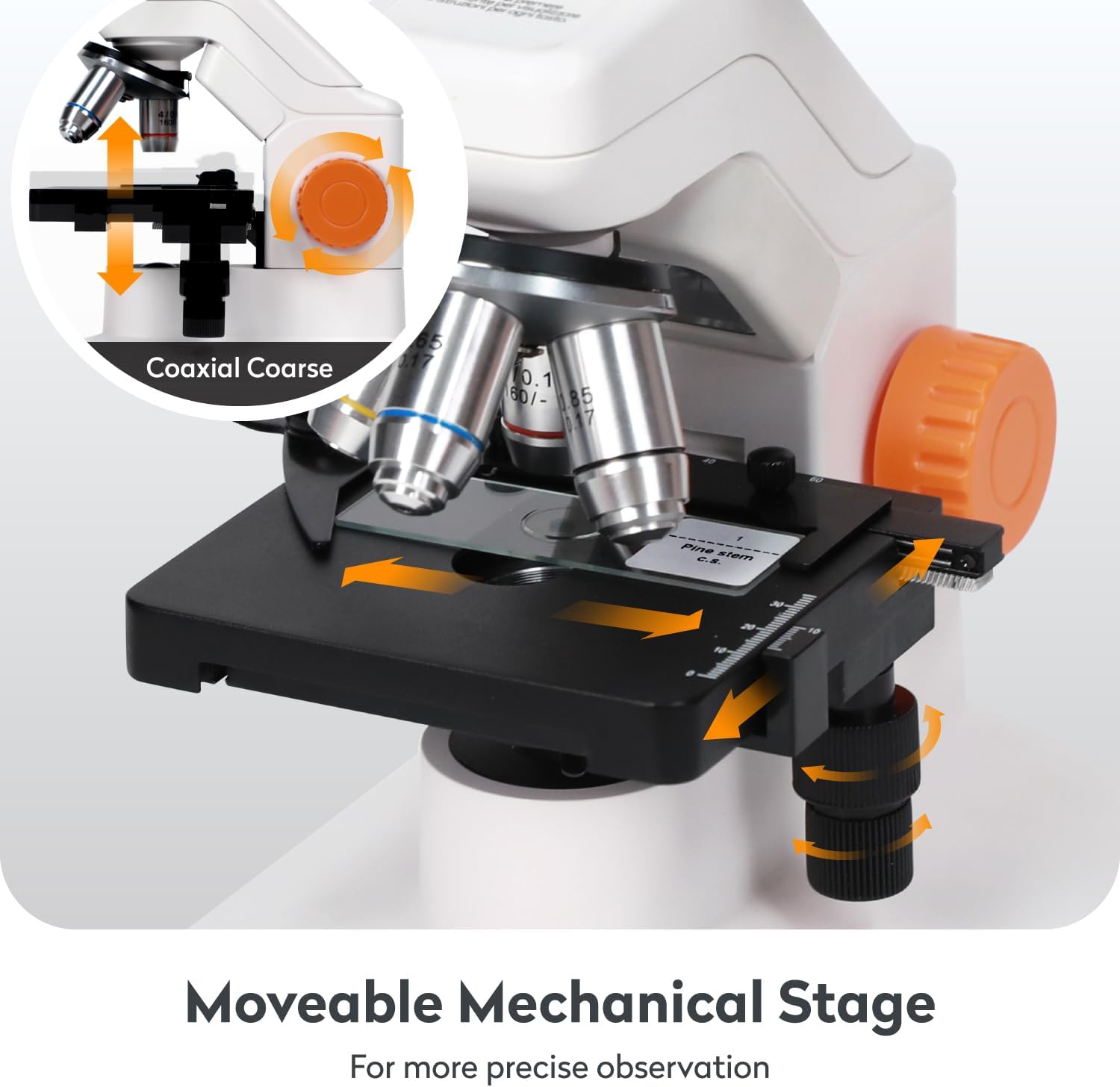

- Mechanical X-Y stage with 1.0 mm resolution for precise sample positioning

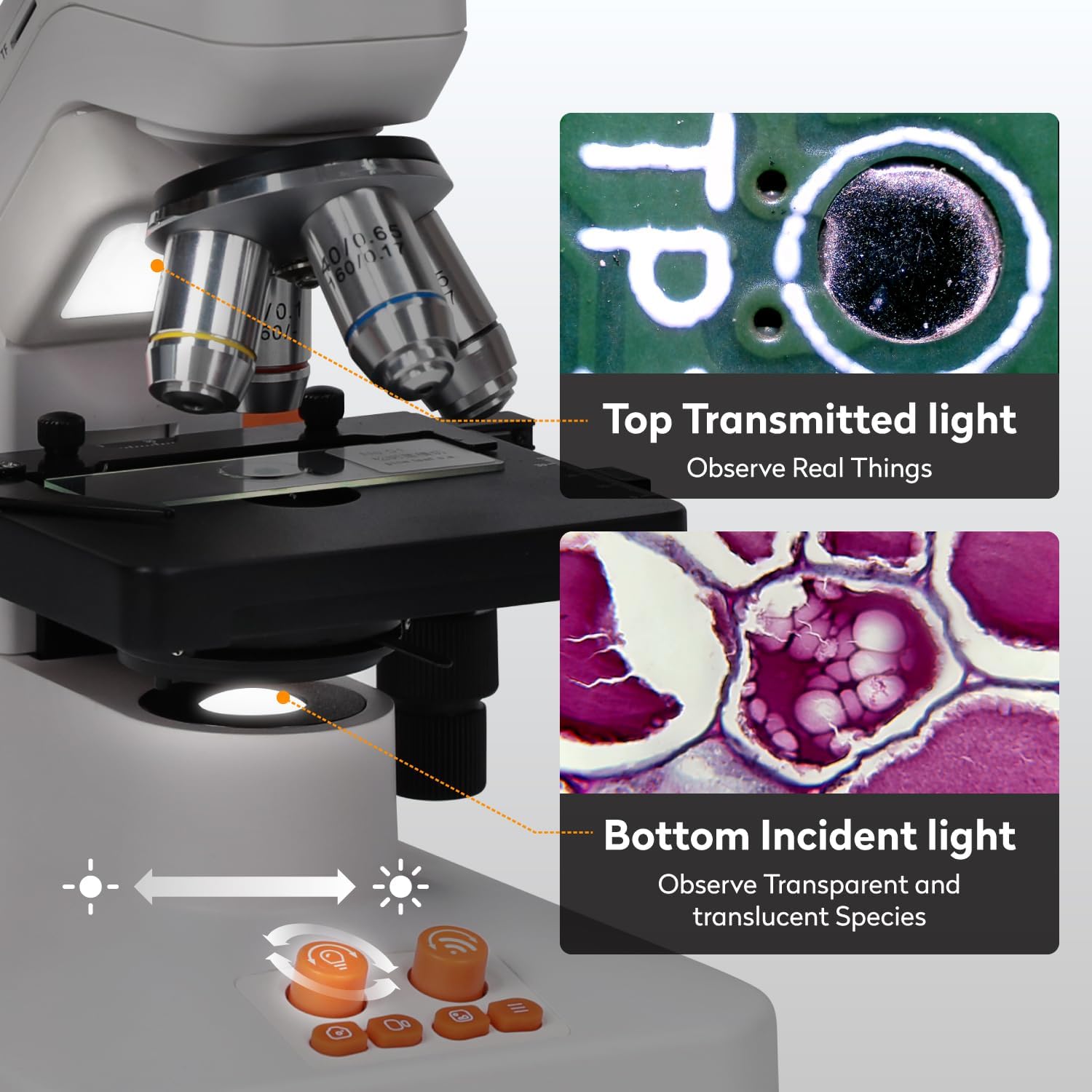

- Dual adjustable LED illumination: transmitted light for opaque objects, incident light for transparent samples

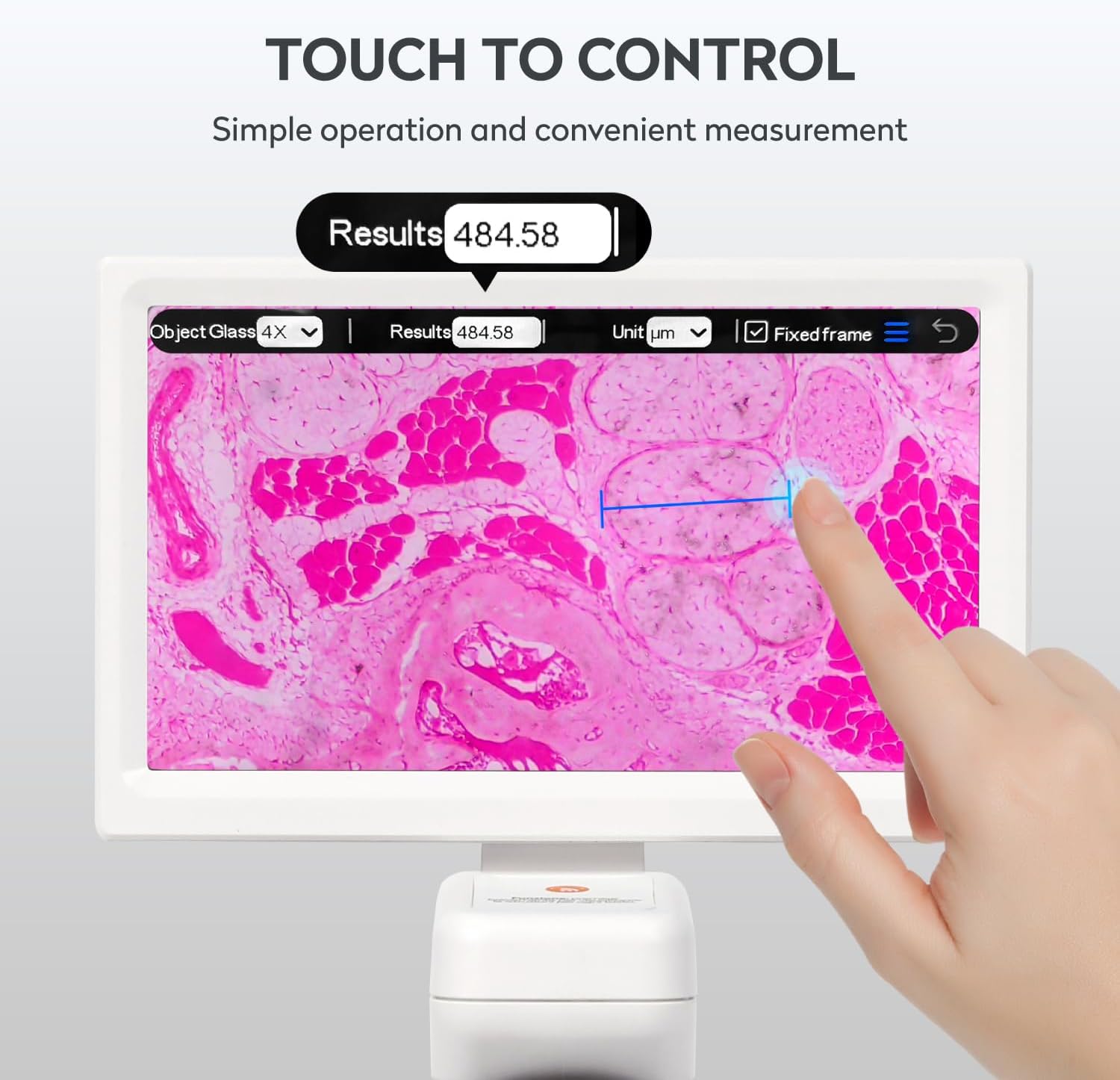

- Direct on-screen touch measurement or advanced measurement via the MatataXplore app with Excel export

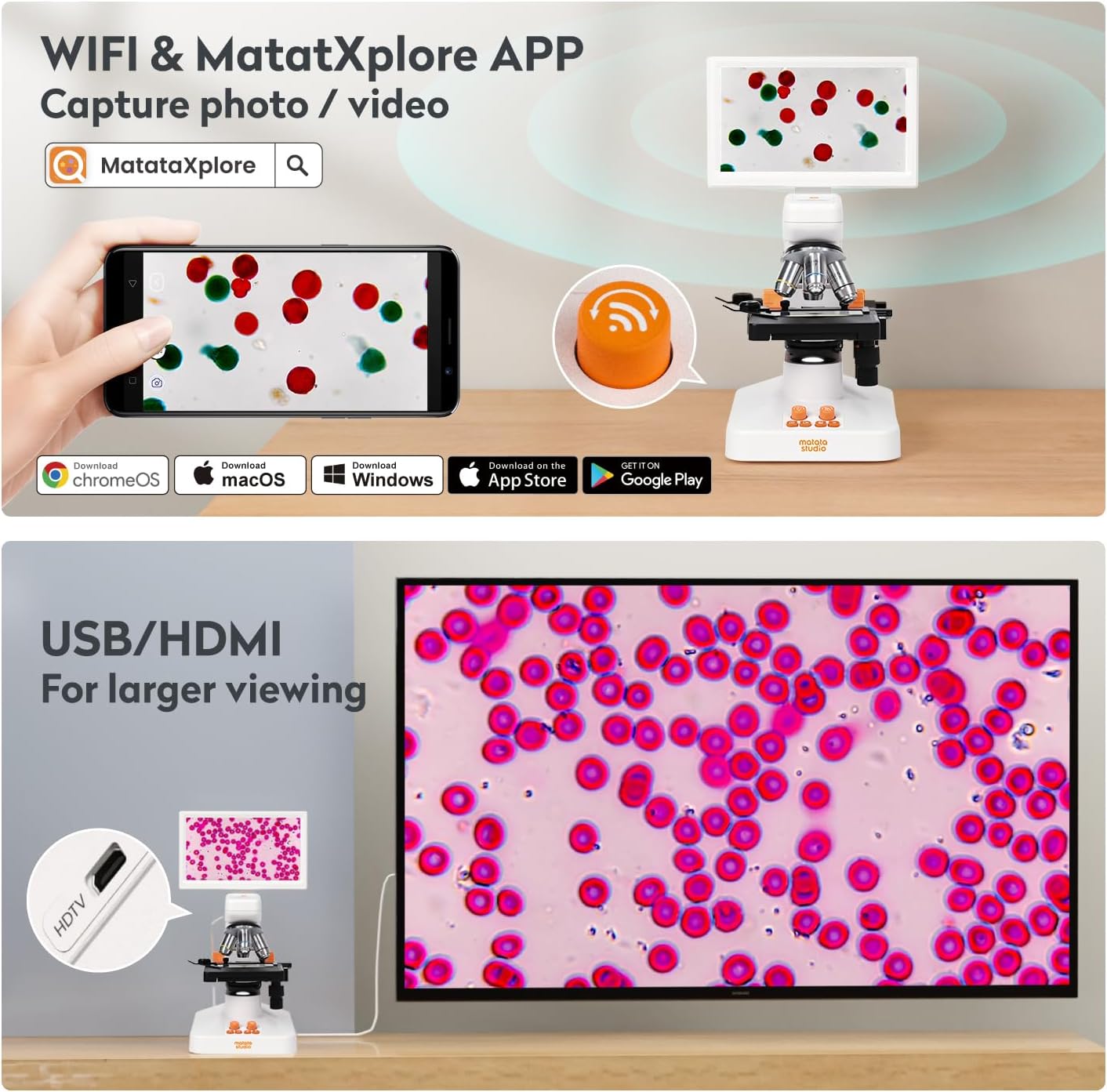

- HDMI, USB and Wi-Fi connectivity; compatible with Android, Windows and iOS
- 178° real viewing angle for wide-angle observation
- No installation required; ready to use straight out of the box
In the classroom, pupils place a sample on the stage, adjust the focus using the coaxial wheel and observe directly on the touchscreen without having to look through an eyepiece. They measure the size of a cell by touching two points on the screen, capture a 1080p photo and share it in real time via Wi-Fi on the MatataXplore app for group analysis or export to Excel.
Technical specifications of the MatataStudio MT3-5
- Model: MT3-5 1600x 8MP
- Screen: 7-inch 1080p IPS touchscreen, rotates 135°
- Maximum magnification: 1600x
- Objectives: 4x, 10x, 40x, 60x (achromatic)
- Camera: 8MP
- Actual field of view: 178°
- Stage: mechanical X-Y, 1.0 mm resolution
- Illumination: dual LED (transmitted and incident), adjustable
- Measurement: on-screen touch and advanced via the MatataXplore app (Excel export)
- Connectivity: HDMI, USB, Wi-Fi
- Compatibility: Android, Windows, iOS, smartphone, PC, tablet, television
- Power supply: battery-powered
- Material: metal and plastic
- Colour: white
- Brand: MatataStudio
