Digital Microscope MT3-4 MatataStudio
The MatataStudio MT3-4 is a digital microscope with a 7-inch rotatable IPS screen, three objectives and digital magnification of up to 1200x, equipped with a 5MP camera, dual LED lighting and a precise 3D mechanical stage.
Supplied with 10 pre-sharpened blades, a storage case and a built-in 2000 mAh battery for immediate use.

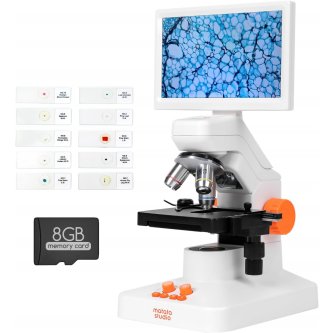

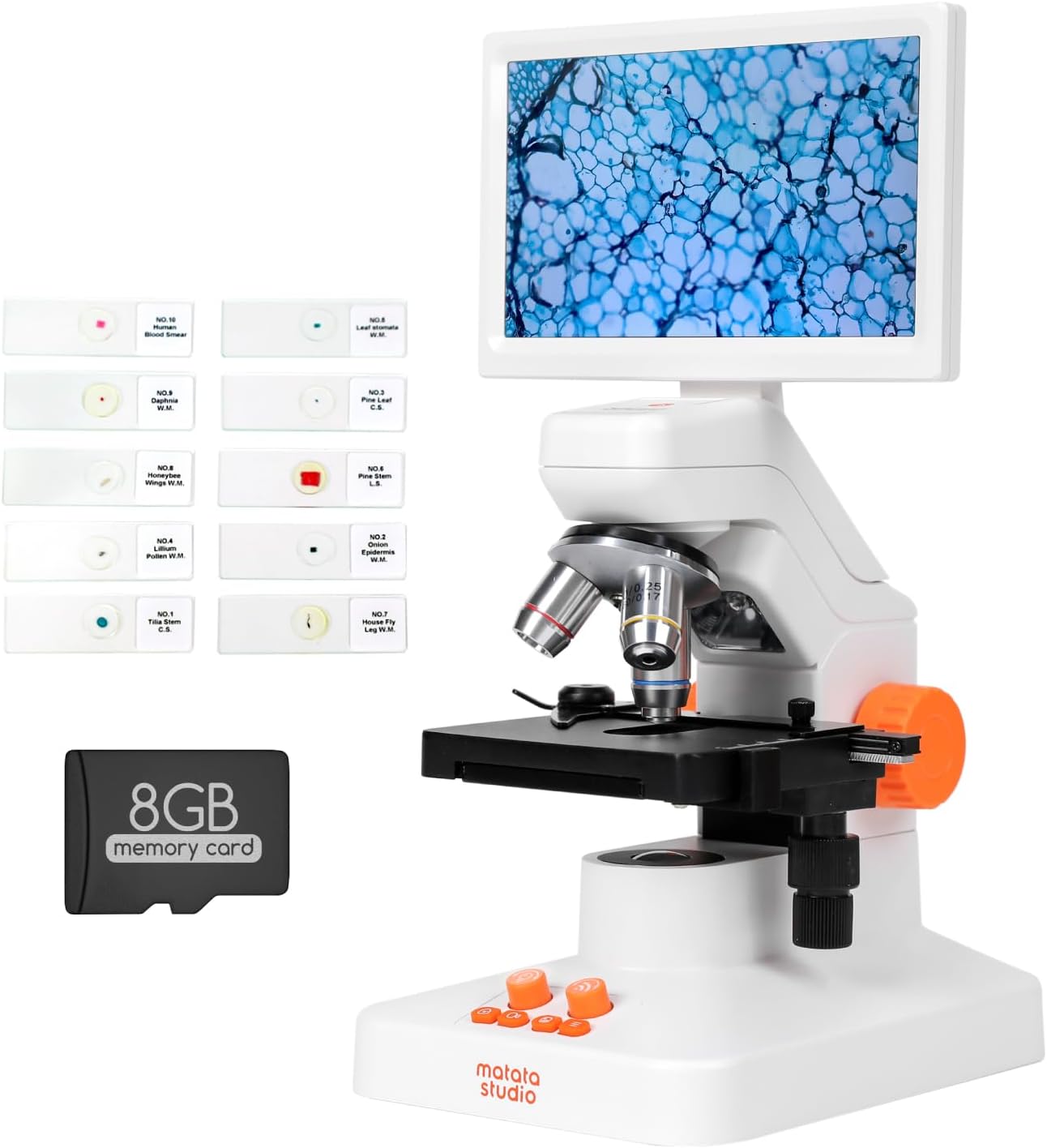

MatataStudio MT3-4 7-inch IPS screen 1200x digital microscope with carrying case and 10 slides
The MatataStudio MT3-4 is a digital biological microscope with a 7-inch IPS screen that rotates through 135°, displaying sharp images for easy sharing of observations. Equipped with three objectives (4x, 10x, 40x) and a 5MP sensor, it achieves a maximum digital magnification of 1200x for observing fixed or living cells, bacteria, stamps, plants or skin. Its 3D mechanical stage facilitates precise sample movement, and the measurement function allows you to assess the size of the objects being observed.
The dual LED lighting (top transmitted light, bottom incident light) allows for the observation of both opaque objects and transparent specimens. It takes photos and videos via the built-in 5MP sensor, which can be viewed using the MatataXplore app, and connects via HDMI, USB or Wi-Fi to a phone, PC, tablet or television, compatible with Android, Windows and iOS. Its built-in 18650 2000 mAh battery ensures it can be used in the field. It comes with 10 prepared slides and a storage case for immediate use straight out of the box.
MatataStudio MT3-4 digital microscope, 7-inch IPS screen, 1200x magnification, 5MP camera, Wi-Fi, 10 slides and carrying case included.
What the MT3-4 offers for scientific observation in the classroom and at home

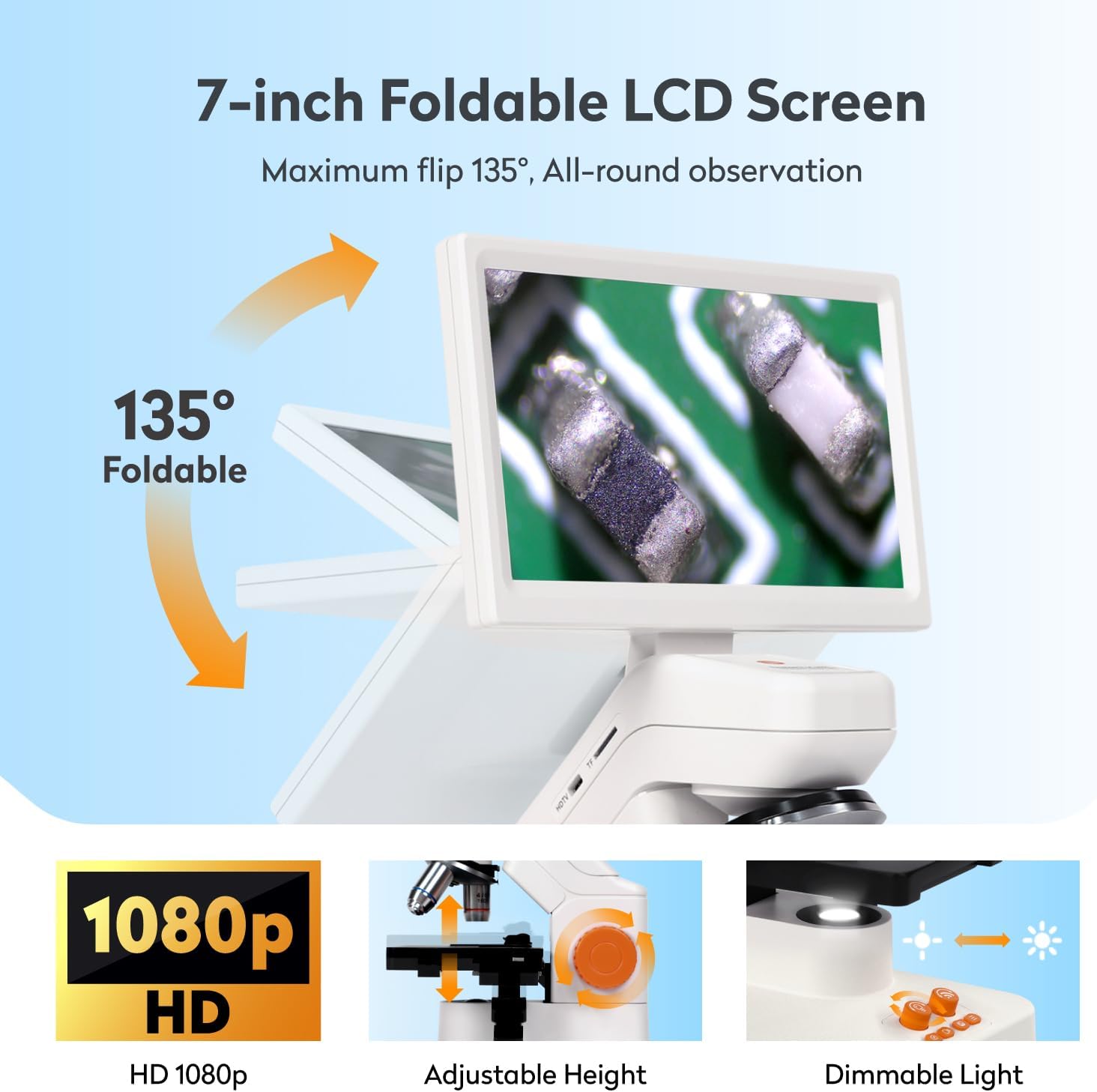

- 7-inch IPS screen, rotatable through 135°, for sharing observations without an eyepiece

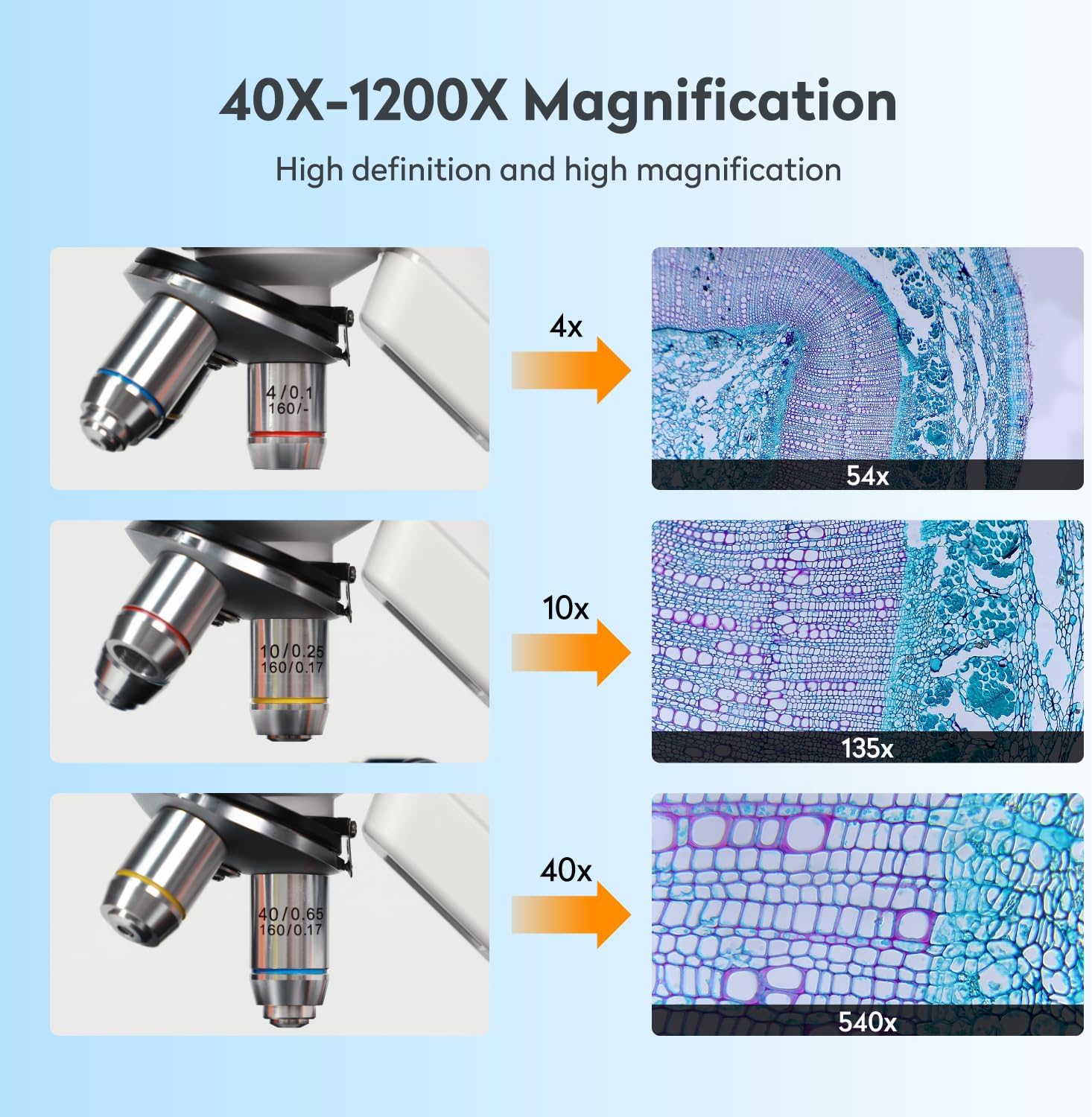

- 3 achromatic objectives (4x, 10x, 40x) with digital magnification up to 1200x
- Built-in 5MP camera for photos and videos that can be viewed via the MatataXplore app

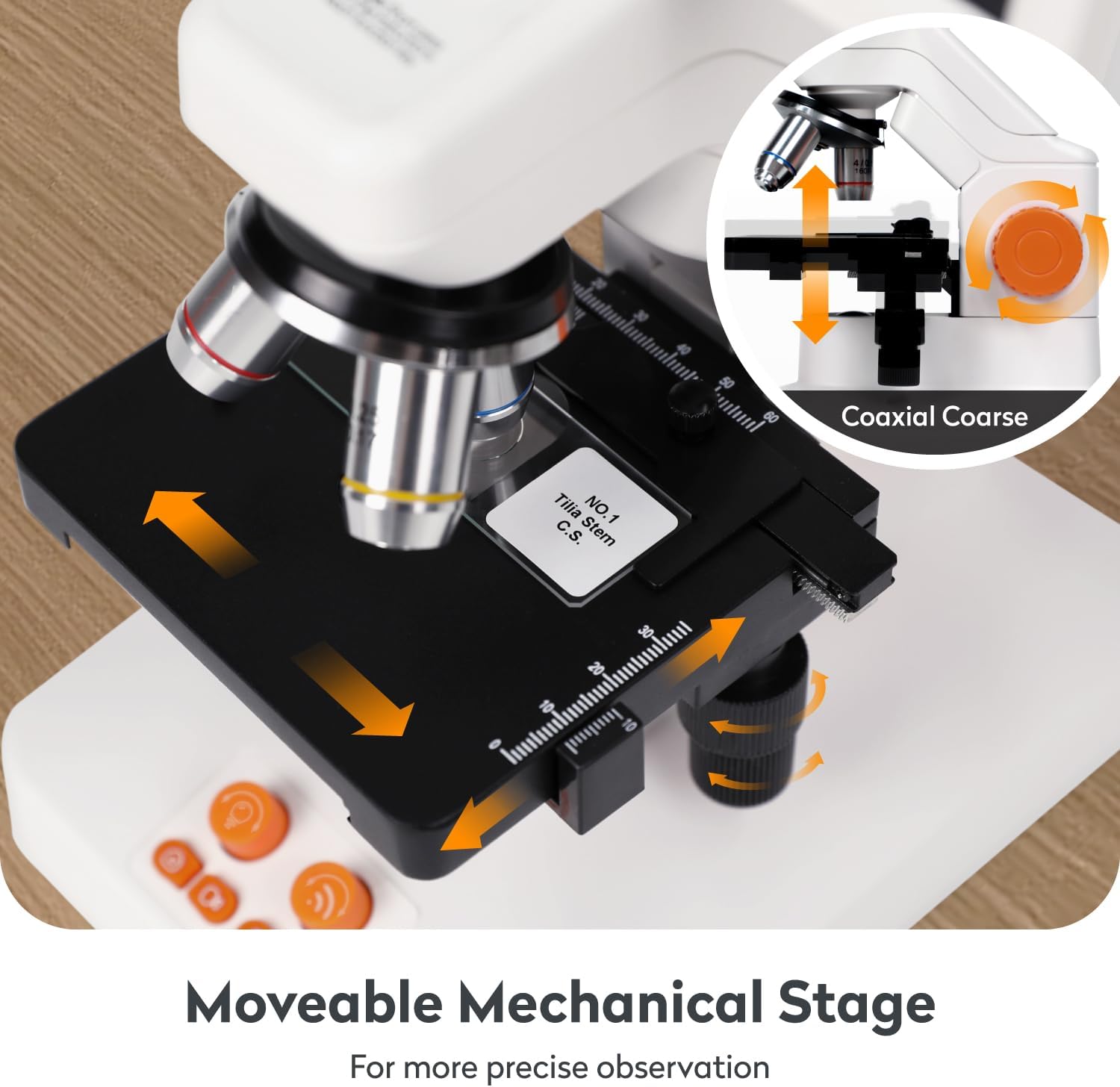

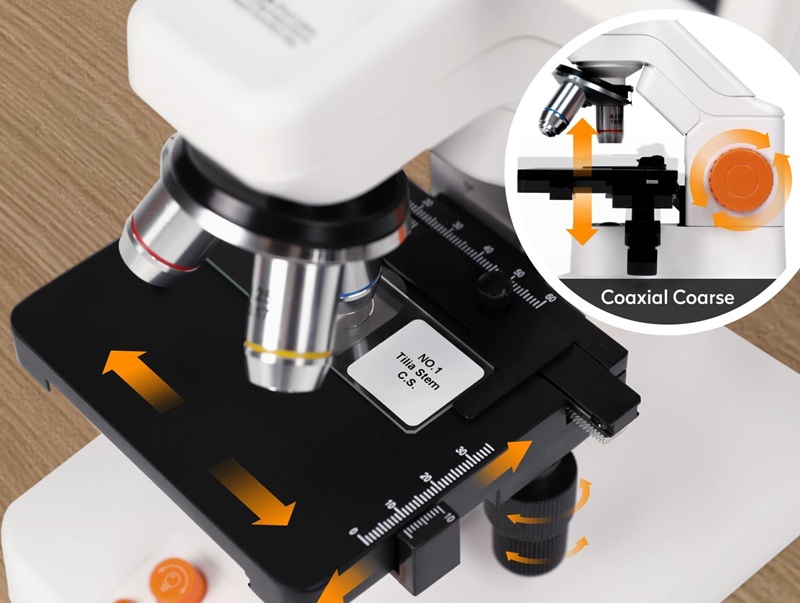

- 3D mechanical stage for precise sample positioning

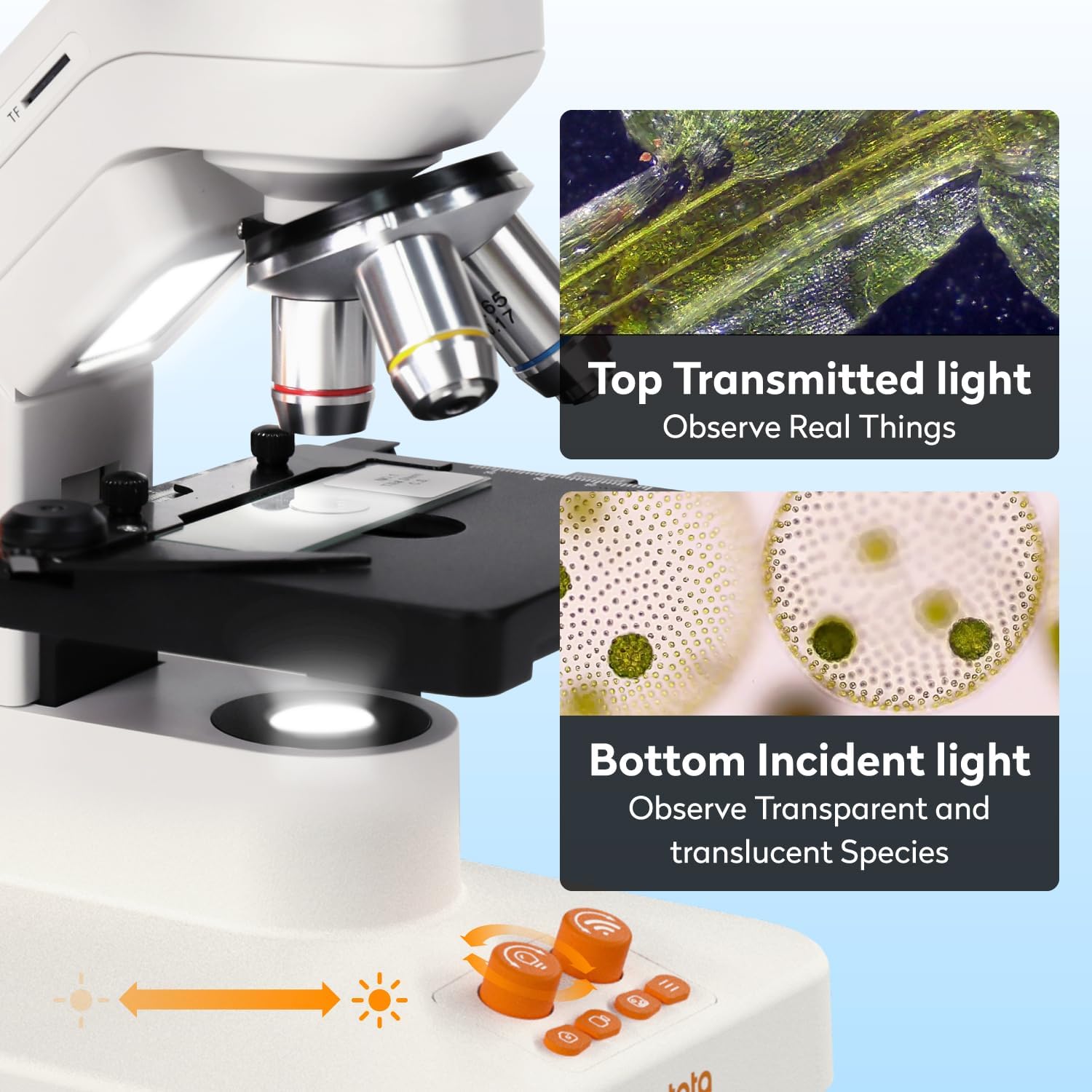

- Dual adjustable LED lighting: transmitted light for opaque objects, incident light for transparent specimens
- Simple measurement function to assess the size of observed objects

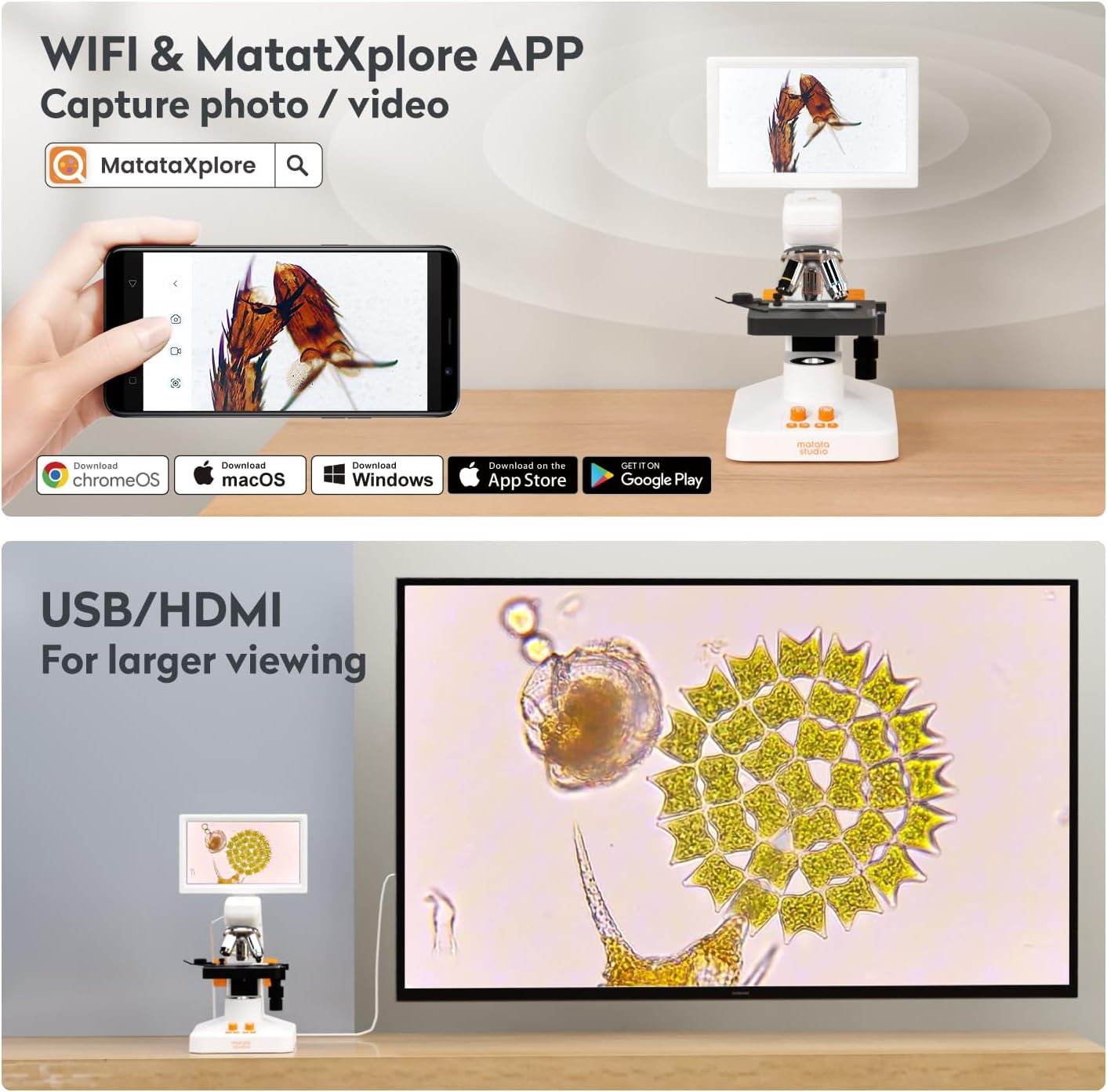

- HDMI, USB and Wi-Fi connectivity compatible with Android, Windows and iOS
- Built-in 18650 2000 mAh battery for use without being permanently plugged in
- 10 prepared slides and a storage case included so you can get started straight away
At home or in the classroom, pupils place a prepared slide on the stage, adjust the focus using the coaxial focus wheel and observe directly on the screen without having to share an eyepiece. They measure the size of an observed structure using the measurement function, take a photo via the MatataXplore app and store it in the storage case with the rest of the equipment between sessions.
Contents of the MatataStudio MT3-4 box
- 1 MT3-4 digital microscope
- 10 prepared slides
- 1 storage case
Technical specifications of the MatataStudio MT3-4
- Model: MT3-4 1200x 5MP
- Optical design: biological
- Screen: 7-inch IPS, rotates 135°, foldable
- Maximum magnification: 1200x (minimum 40x)
- Objectives: 4x, 10x, 40x (achromatic)
- Camera: 5MP
- File formats: JPG (photo), MOV with MJPEG codec (video)
- Actual field of view: 178°
- Stage: 3D mechanical
- Lighting: dual LED (transmitted and incident)
- Measurement: simple linear measurement function
- Connectivity: HDMI, USB, Wi-Fi
- Compatibility: Android, Windows, iOS, smartphone, PC, tablet, television
- Battery: 18650, 2000 mAh built-in
- Dimensions: 15 x 30 x 20 cm
- Material: metal and plastic
- Colour: white
- Brand: MatataStudio
