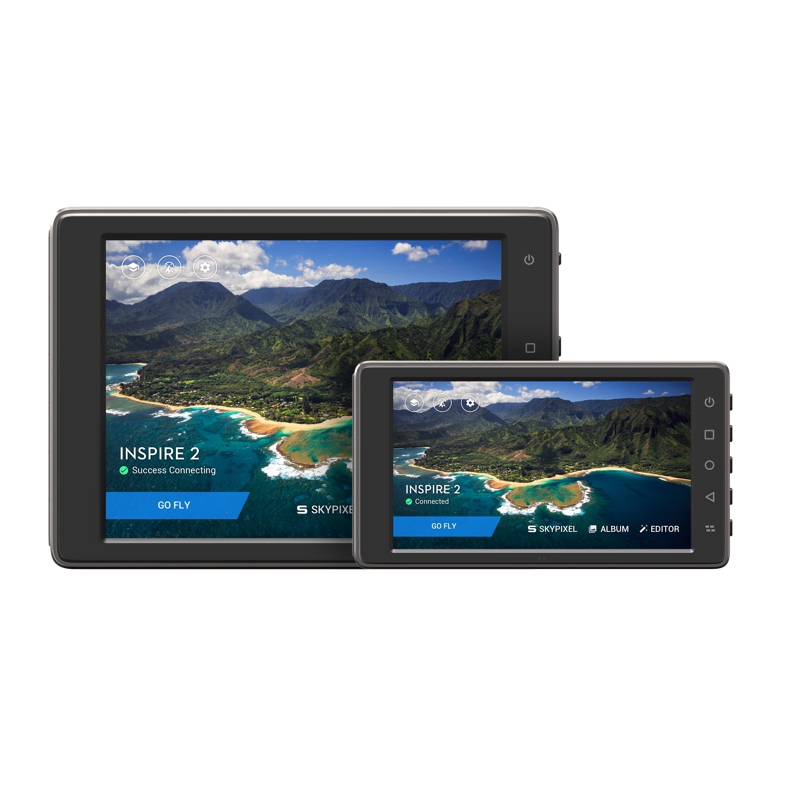

DJI Crystalsky Full HD Screen

Screen and Remote Control for Onboard Camera on Drone
DJI

The DJI CrystalSky monitor was created to view the image of a camera onboard a drone from the outside, an alternative solution to the smartphone. Its ultra bright screen allows it to be visible even in full sunlight. Thanks to the cooperation with the DJI GO application, it is compatible with the Phantom 3 , Phantom 4 , Inspire 1 , Inspire 2 , Matrix 600 , with Cendence control equipment, as well as with Osmo and Osmo +. It is also possible to use the monitor with a Mavic UAV via a USB connection and Phantom 4K and Standard via WiFi network.

The DJI monitor is available in 3 models: DJI Crystalsky 5.5 inch, DJI Crystalsky 7.85 inch 1000 cd/m² and DJI Crystalsky 7.85 inch 2000 cd/m².

> Read more
Order
Site Reference : RA_PDA098
Manufacturer Reference : AR0033673

+ -
Available
Shipped within 2 to 8 Days
799,00 €

DJI CrystalSky: high brightness full HD display

The brightness of 2000 cd/m² means that DJI's CrystalSky screen is four times brighter than most conventional mobile devices (twice as bright for the 1000 cd/m² model). The image is clear and sharp and the colours are intense. The dedicated sunlight readability enhancement mode has been developed to display the image in real time in full sunlight.

Due to software access restrictions on smartphones and tablets, video coding can be problematic. When viewing photos or videos from the camera, there may be image instability, long delays, etc. The CrystalSky monitor decoder provides a smooth live image with minimal delay.



DJI CrystalSky



The operating system, designed from scratch, removes unnecessary Android applications and services and is also resistant to viruses and unwanted software. As a result, DJI CrystalSky displays deliver optimal performance at all times. The integrated DJI GO application gives you access to all the functions of DJI devices.

An external 2S 4920 mAh battery gives CrystalSky monitors a longer life than mobile devices. In addition, the discharge rate is controlled, even at low temperatures. Autonomy is 4 to 5 hours for 7.85-inch CrystalSky screens and 5 to 6 hours for 5.5-inch CrystalSky screens.

Thanks to two Micro SD card slots, the capacity of the device can be easily expanded. Recorded material can also be transferred directly to the monitor and the Micro SD card can be used as a backup medium. The DJI CrystalSky monitors support H.264 and H.265 video encoding, allowing playback of files in 30 and 60 frames. The video signal can also be output via the HDMI port.

  • The HDMI port allows you to output video with up to 4K resolution to FPV glasses or other devices.
  • Built-in dual-band WiFi gives you the ability to connect to WiFi networks or hotspots.
  • The device is also compatible with 4G dongles and USB sticks thanks to the USB-A port.
  • When connected to the Internet, the CrystalSky monitor accesses system updates, live streaming, photo and video sharing, data synchronization and other options.
  • Built-in Micro USB and USB-C ports allow you to connect the monitor to control equipment and other devices.

Most mobile devices are designed to operate at moderate temperatures. DJI's CrystalSky's external battery is designed for extreme temperatures. The device is capable of operating even at low temperatures down to -20°C and positive temperatures up to 40°C due to the internal cooling system.



DJI CrystalSky: technical features

5.5" DJI CrystalSky High Brightness Display

  • Touch screen, with IPS matrix
  • Resolution 1920x1080
  • Luminosity 1000cd/m²
  • Android operating system
  • Application DJI GO, DJI GO 4, DJI Driver
  • 32GB ROM + 4GB RAM
  • Connectors HDMI,MicroSD,Micro-USB, USB-C
  • Connection WIFI:2.4G,5.2G&5.8G 802.11b、802.11g、802.11n(HT20)、802.11a 4G
  • GPS/GLASS
  • Operation Gyroscope
  • How the compass works
  • Speaker Operation
  • Light sensors Operation
  • Microphone support
  • Built-in 980 mAh battery, 3.7V
  • External battery 4920 mAh,7.6V (removable)
  • Operating temperature -20℃ to 40℃
  • Video decoding in 4K H.264 4k 30fps / H.265 4k 60fps
  • Dimensions without battery 153,76*84,94*19mm
  • Dimensions with battery 153,76*84,94*39,6mm
  • External battery 90*45*26mm​

DJI CrystalSky 7.85" High Brightness display 1000 cd/m²

  • Touch screen, with IPS matrix
  • Resolution 2048X1536
  • Luminosity 1000cd/m²
  • Android operating system
  • Application DJI GO, DJI GO 4, DJI Driver
  • 64GB ROM + 4GB RAM
  • Connectors HDMI,MicroSD,Micro-USB, USB-C
  • Connection WIFI:2.4G,5.2G&5.8G 802.11b、802.11g、802.11n(HT20)、802.11a 4G
  • GPS/GLASS
  • Operation Gyroscope
  • How the compass works
  • Speaker Operation
  • Light sensors Operation
  • Microphone support
  • Built-in 980 mAh battery, 3.7V
  • External battery 4920 mAh,7.6V (removable)
  • Operating temperature -20℃ to 40℃
  • Video decoding in 4K H.264 4k 30fps / H.265 4k 60fps
  • Dimensions without batteries 208.6*147.8*17mm
  • Dimensions with battery 208.6*147.8*34.75mm
  • External battery 90*45*26mm

DJI CrystalSky 7.85" High Brightness display 2000 cd/m²

  • Touch screen, with IPS matrix
  • Resolution 2048X1536
  • Brightness 2000cd/m²
  • Android operating system
  • Application DJI GO, DJI GO 4, DJI Driver
  • 128GB ROM + 4GB RAM
  • Connectors HDMI,MicroSD,Micro-USB, USB-C
  • Connection WIFI:2.4G,5.2G&5.8G 802.11b、802.11g、802.11n(HT20)、802.11a 4G
  • GPS/GLASS
  • Operation Gyroscope
  • How the compass works
  • Speaker Operation
  • Light sensors Operation
  • Microphone support
  • Built-in 980 mAh battery, 3.7V
  • External battery 4920 mAh,7.6V (removable)
  • Operating temperature -20℃ to 40℃
  • Video decoding in 4K H.264 4k 30fps / H.265 4k 60fps
  • Dimensions without batteries 208.6*147.8*17mm
  • Dimensions with battery 208.6*147.8*34.75mm
  • External battery 90*45*26mm​

DJI CrystalSky 5.5"

  • CrystalSky x1 Monitor
  • Battery x1
  • Battery Recharge Platform x1
  • Caution charger not included

DJI CrystalSky 7.85" 1000 cd/m²

  • CrystalSky x1 Monitor
  • Battery x2
  • Battery Recharge Platform x1
  • Caution charger not included

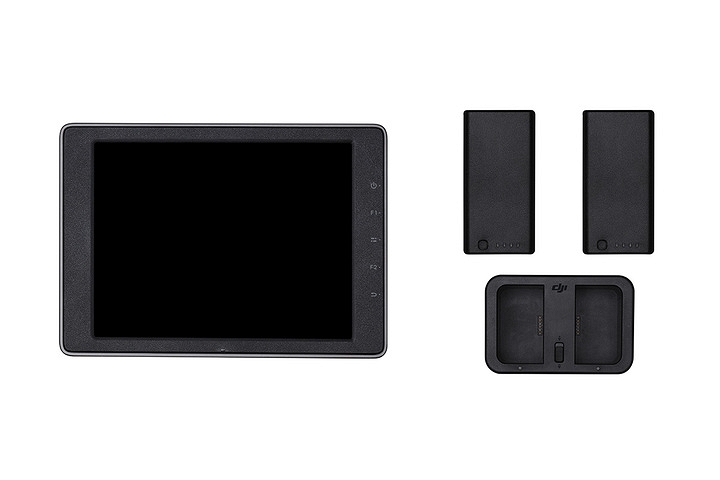

DJI CrystalSky 7.85" 2000 cd/m²

  • CrystalSky x1 Monitor
  • Battery x2
  • Battery Recharge Platform x1
  • Caution charger not included
