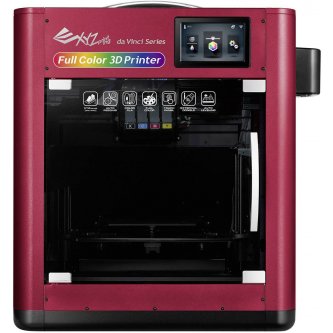

3D Printer Da Vinci Color

3D color printer XYZ Printing
XYZ Printing

Da Vinci Color is the world's first full-color 3D FFF printer that uses CMYK inkjet technology to create quality full-color 3D prints. The Da Vinci Color 3D printer uses CMYK inkjet cartridges to apply color to prints made with a color-absorbing PLA filament. These colors can be combined endlessly to create millions of colors.

Layer resolution from 100 to 400 microns, print size 200 x 200 x 150 mm and print speed 180 mm / second.

> Read more
Order
Site Reference : RA_TTS079
Manufacturer Reference : Da_Vinci_COLOR

+ -
Available
Shipped within 2 to 8 Days
2 899,99 €

Da Vinci Color 3D Printer by XYZ Printing​

With the da Vinci Color 3D Printer, you will be able to make 3D prints by playing with colors. It comes with high-performance software to allow you to create your creations in the color you like and to transform traditional 2D color prints into 3D models.

A 2nd generation chip is attached to the ring of the filament spool, which transfers material data to the 3D printer. This automatically establishes the optimized material profile and lets you know how much filament remains.

  • New PLA 3D colour inkjet filament: allows the absorption of ink droplets and allows the da Vinci Color 3D printer to make colour prints. This durable media is designed to provide consistent print quality.
  • Outstanding inkjet technology enables colour printing and efficient printing at high speed. No need to worry about washed colours in hand-painted models, da Vinci Color Printer prints are water-resistant.

The control panel of the Da Vinci Color printer is a 5-inch LCD touch screen. The print platen is automatically levelled. Thanks to CMYK inkjet technology, the ink drops attach themselves to the PLA filament which absorbs the colors, allowing the da Vinci Color to create prints of different colors by combining the ink drops on the filament.



3D Printer Da vinci Color XYZ Printing

Da Vinci Color 3D printer: technical specifications

Printing properties

  • Positioning accuracy XY: X/Y 12.5 mícrons
  • Printing Technology: 3D textured color inkjet printing Fused Filament Fabrication (FFF) 3D manufacturing
  • Maximum storage area (WxDxA): 200 x 200 x 150 mm
  • Layer resolution: 100 - 400 microns
  • Positioning accuracy Z: Z: 0.0004 mm
  • Printing software: XYZmaker Suite
  • Supported file formats: .stl, .3mf, .obj, .igs, .stp, .ply, .amf, .nkg (.stl), .3cp​

Meterial

  • Material Compatibility: 3D color inkjet PLA / PLA / Antibacterial PLA / Resistant PLA / PETG / * XYZ carbon fiber / * High quality metallic PLA (* Extruder option)
  • Filament diameter: 1.75 mm
  • Ink type: Separate ink cartridge (CMYK)

Extruder

  • Nozzle diameter: 0.4 mm
  • Number of nozzles: 1
  • Drive speed: 180 mm / s

Print tray

  • Print Tray: Easy to remove / metallic
  • Levelling: YES
  • Calibration: AUTO

Material

  • Filament feeding system: YES
  • Stepper motors 1.8 ° HB
  • User Interface: 5" LCD Touch Screen
  • Language: Multilingual
  • Connectivity: USB 2.0 cable, WiFi 802.11 b / g / n, USB flash drive​

System requirements

  • Operating Systems: Windows 7 / 8 / 8.1 / 10 (64-bit) & MacOS 10.12 / 10.13 / 10.14
  • Minimum Hardware Requirements: For PC: Intel® Core CPU ™ 4th generation with i5 processor or higher / RAM: 8 GB / Hard Disk Space: 20 GB or more & For MAC: RAM: 8 GB / Hard Disk Space: 20 GB or more

Operational requirements

  • Operating temperature: 15 ~ 30 °C
  • Power requirements: 100V ~ 240 V 240 W
  • Operating humidity: 30 ~ 60% RH (non-condensing)
  • Storage temperature - Ink cartridge: 15 ~ 35 °C

Size and weight of the 3D printer

  • Product dimensions (WxDxH): 600 x 581 x 640 mm
  • Product weight: 32 kg
  • Packed dimensions (WxDxH): 710 x 700 x 820 mm
  • Packed weight: 43 kg
