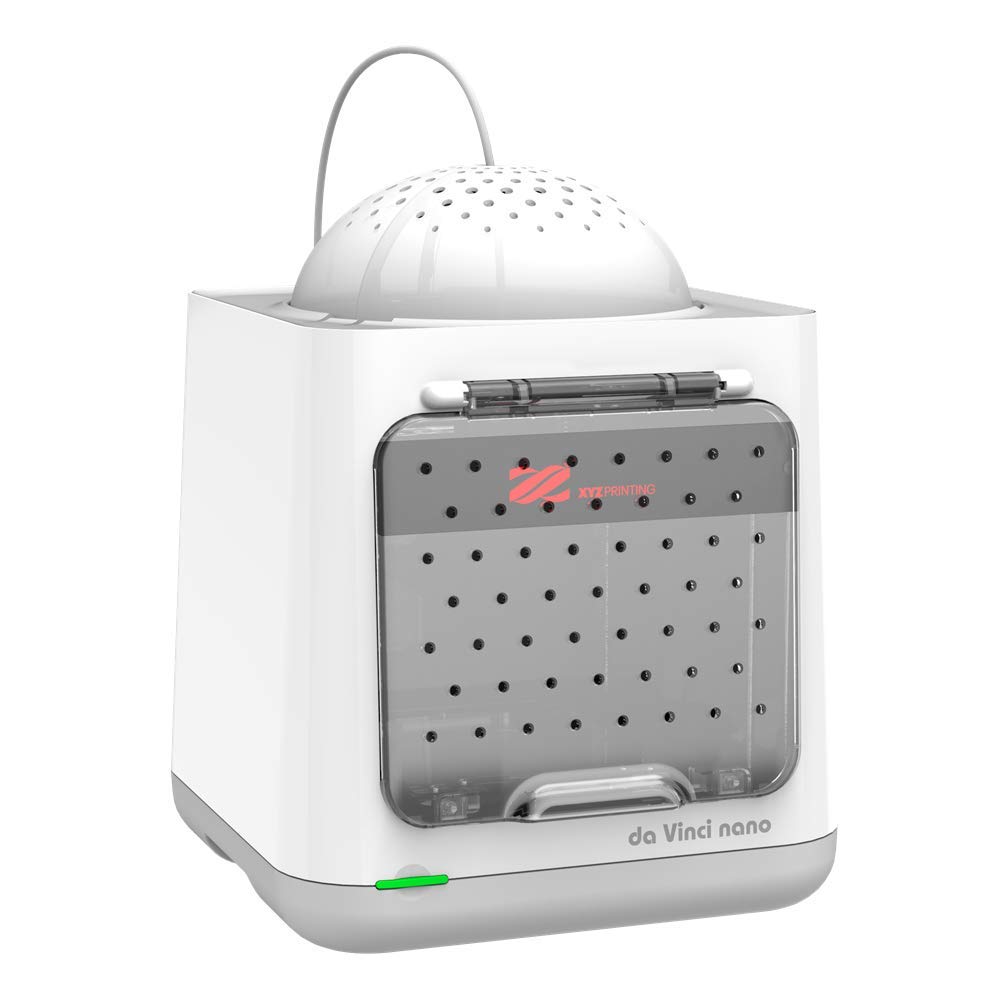

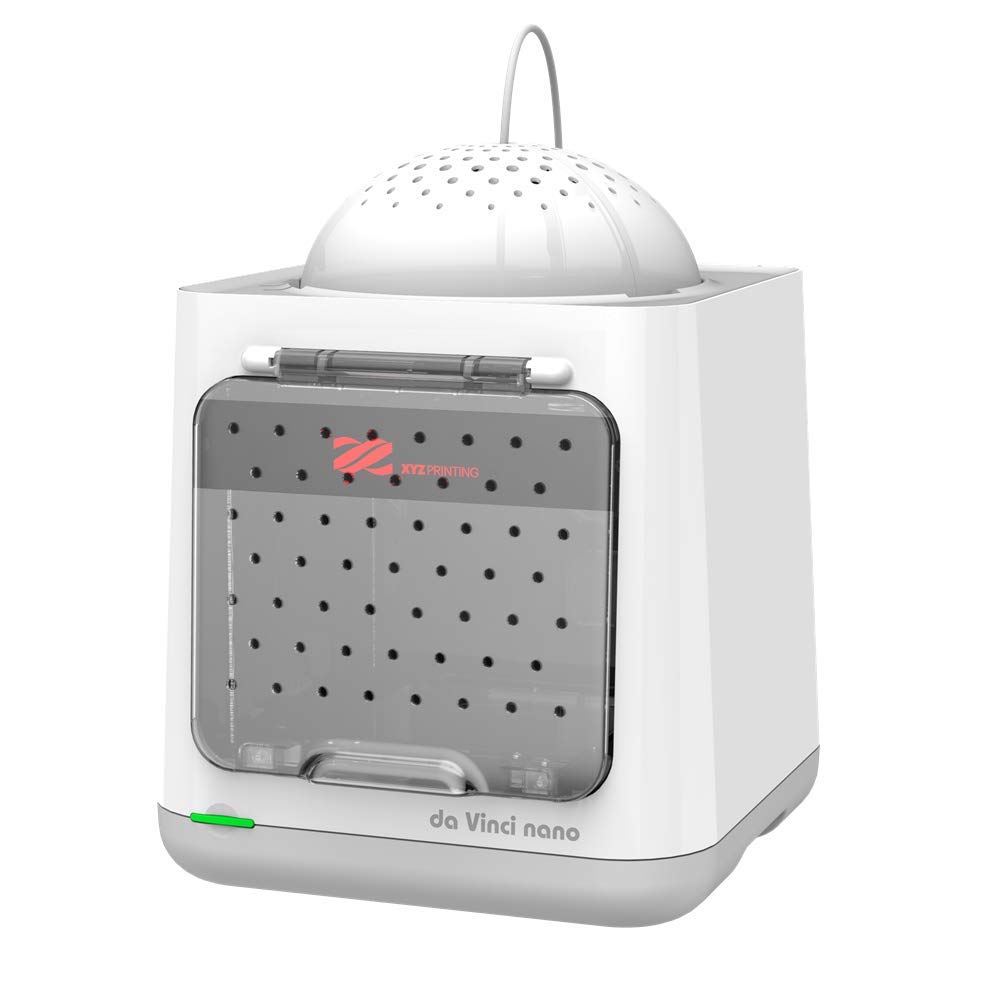

Da Vinci Nano 3D Printer
The Da Vinci Nano 3D printer of the XYZ Printing brand has been specially designed for a simple immersion in the world of 3D printing and first achievements. It is safe, easily transportable due to its small size and the perfect 3D printer for family use with children.

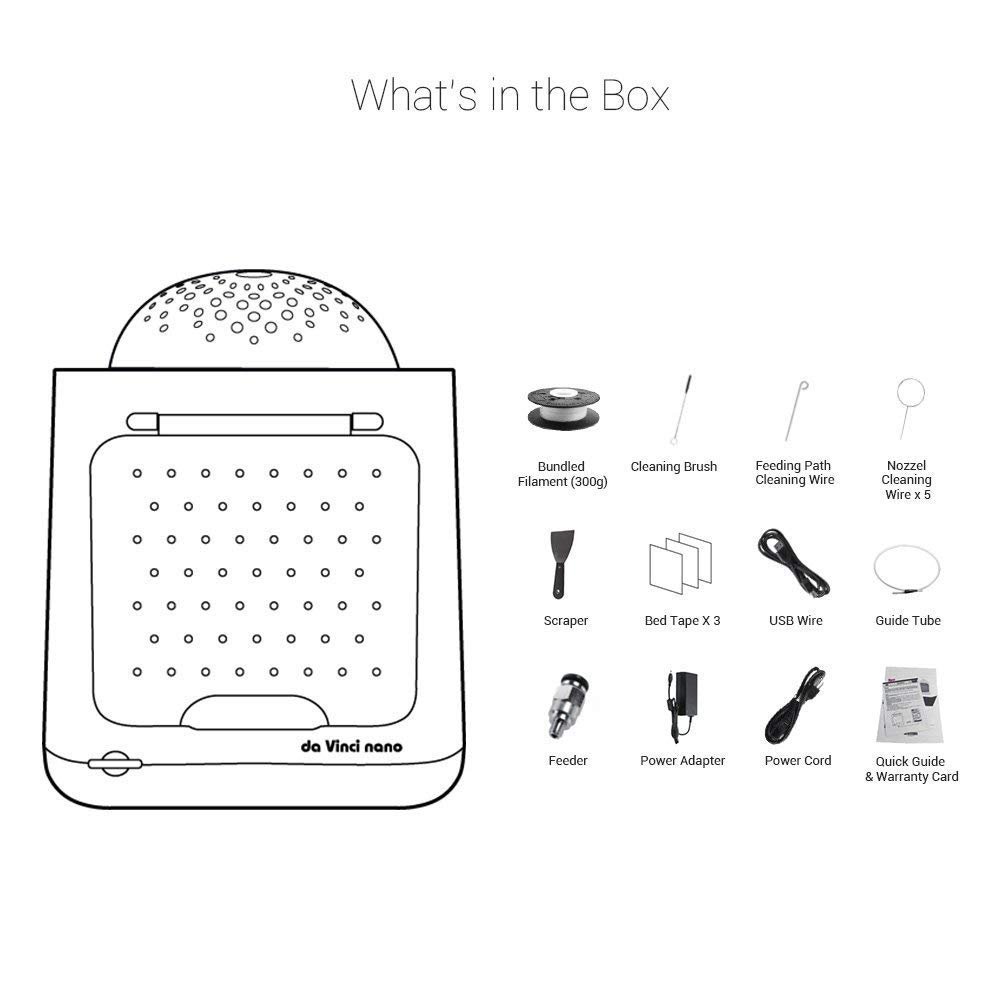

Delivery assembled, software included, weight 4.5 Kg, automatic feed filament system, printing dimensions 120 x 120 x 120mm.
Da Vinci Nano Portable 3D Printer by XYZ Printing
This Da Vinci Nano portable 3D printer by XYZ Printing is the ideal 3D printer to get you started on your first 3D printing projects at home and with your family. It is easily transportable, delivered with a software that contains more than 3000 models to modify or print and the use of non-toxic biodegradable filaments.
- You'll have no trouble removing your print thanks to a removable bed.
- The printing area is fully enclosed for added security.
- Benefit from more than 30 lessons to understand and get started in 3D printing.
- The Da Vinci Nano 3D printer comes with free CAD and cutting software to guide you in your 3D printing.
Da Vinci Nano: features of the 3D printer
Printing properties
- Printing Technology: FFF - Melt Filament Manufacturing

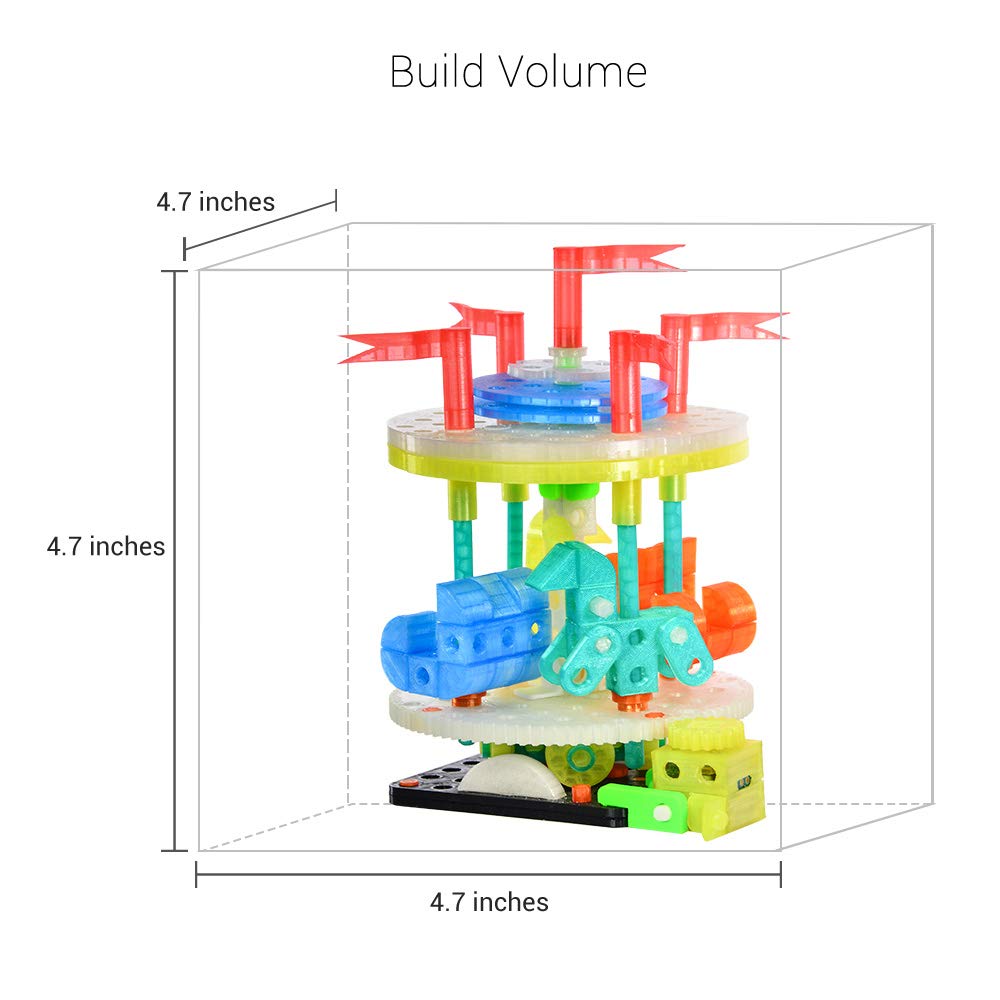

- Print area (WxDxA): 120 x 120 x 120 mm
- Layer resolution: 100 - 400 microns
- Positioning accuracy XY: X/Y 12.5 mícrons
- Positioning accuracy Z: Z: 0.001 mm
- Printing software: XYZmaker Suite
- Supported file formats: .stl, .3mf, .obj, .igs, .stp, .ply, .amf, XYZ format (.3w), .nkg (.stl)
- Printing speed: Max. 70 mm/sec.
Materiel

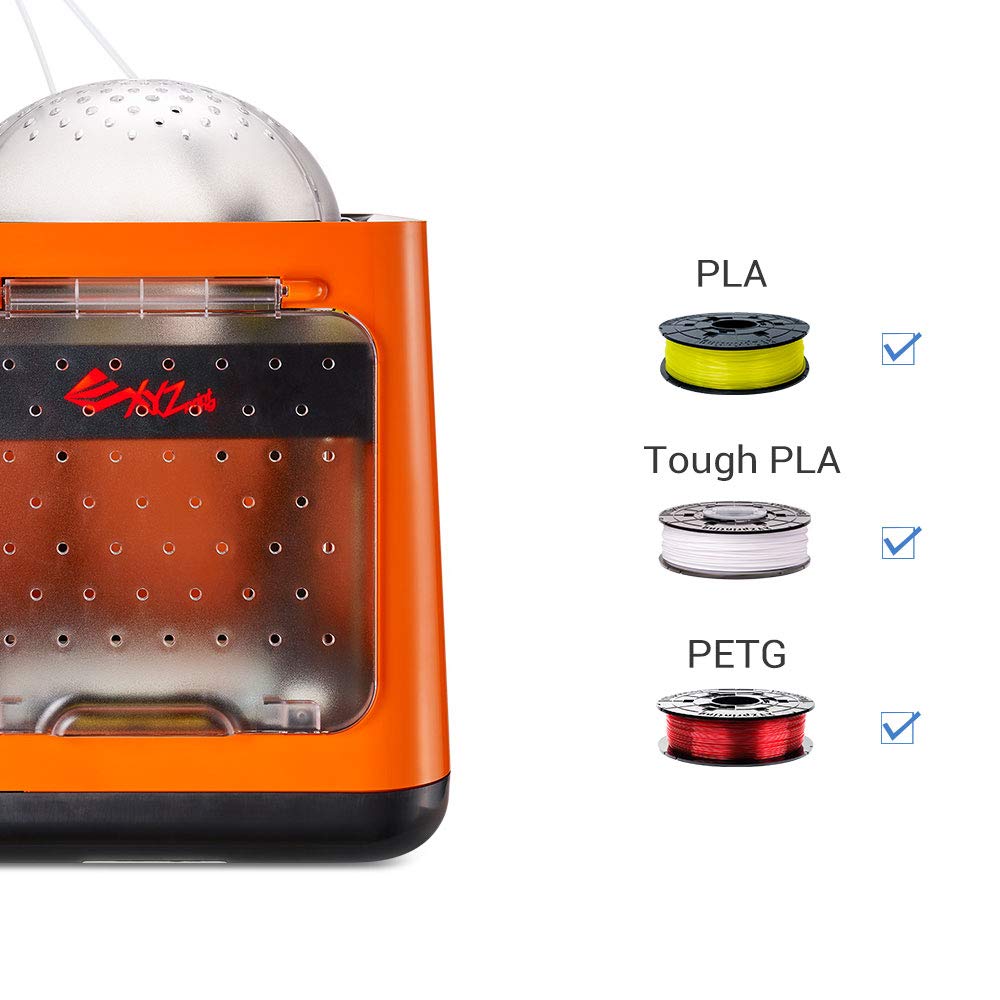

- Material compatibility: PLA / antibacterial PLA / PETG / resistant PLA
- Filament diameter: 1.75 mm
- Filament feeding system: YES
- Stepper motors 1.8 ° HB
- User interface: Software interface
- Language: Multilingual
- Connectivity: USB 2.0 cable, Wi-Fi 802.11 b / g / n
Extruder
- Nozzle diameter: 0.4 mm
- Number of nozzles: 1
Print tray
- Print tray: Removable glass
- Calibration: AUTO
System requirements
- Operating Systems: Windows 7 / 8 / 8.1 / 10 (64-bit) & MacOS 10.12 / 10.13 / 10.14
- Mobile Operating Systems: Android 5.0 and higher iOS 9 and higher (iPad only)
- Minimum Hardware Requirements: For PC: Intel® Core CPU ™ 4th generation with i5 processor or higher / RAM: 8 GB / Hard Disk Space: 20 GB or more & For MAC: RAM: 8 GB / Hard Disk Space: 20 GB or more
Operational requirements
- Power supply requirements: 100 V ~ 240 V 12 V / 60 W
- Operating temperature: 15 ~ 32 °C
- Operating humidity: 30 ~ 60% RH (non-condensing)
- Storage temperature - Filament: 10 ~ 40 °C
Height and weight
- Product dimensions (WxDxH): 378 x 280 x 355 mm
- Product weight: 4.7 kg
- Packed dimensions (WxDxH): 406 x 338 x 386 mm
- Packed weight: 7.3 kg
