3D Printer Da Vinci Junior 1.0

3D Printer Pro XYZ Printing
XYZ Printing

The Da Vinci Junior 1.0 3D printer integrates automatic calibration, an easy-release extruder and automatic filament loading functionality into a single printer to simplify maintenance.

Wired or wireless connectivity, 100 micron maximum and 400 micron minimum resolution, 0.4mm diameter original print head, 0.3mm print head replacement capability for 50 micron maximum resolution, 1.75mm PLA filament compatibility, USB 2.0 port, FFF (Fused Filament Fabrication) technology.

> Read more
Order
Site Reference : RA_TTS081
Manufacturer Reference : DA_VINCI_JR_PRO

Out of stock

Da Vinci Junior 1.0 3D Printer by XYZ Printing​

The Da Vinci Junior 1.0 Pro XYZ Printing is a professional quality 3D printer that offers compact 3D printing with a working area of 15 x 15 x 15 cm and a resolution of 100 microns (maximum) and 400 microns (minimum).

This 3D printer can be easily installed on the desk, next to the computer, keeping the working area completely isolated from the outside to ensure safe use by experienced modellers or apprentices.

This 3D printer includes software that allows you to adjust various settings such as :

  • Printing speed
  • The resolution
  • Printing media

The open source configuration allows compatibility with 1.75mm multi-producer PLA filaments as well as interaction with stand-alone G-Code software such as CURA or Slic3r.

The Da Vinci Junior 1.0 3D printer from XYZ Printing contains an automatic filament feeding system and allows the original extrusion head to be replaced by a 0.3mm diameter one, capable of producing objects with a higher resolution of 50 microns.

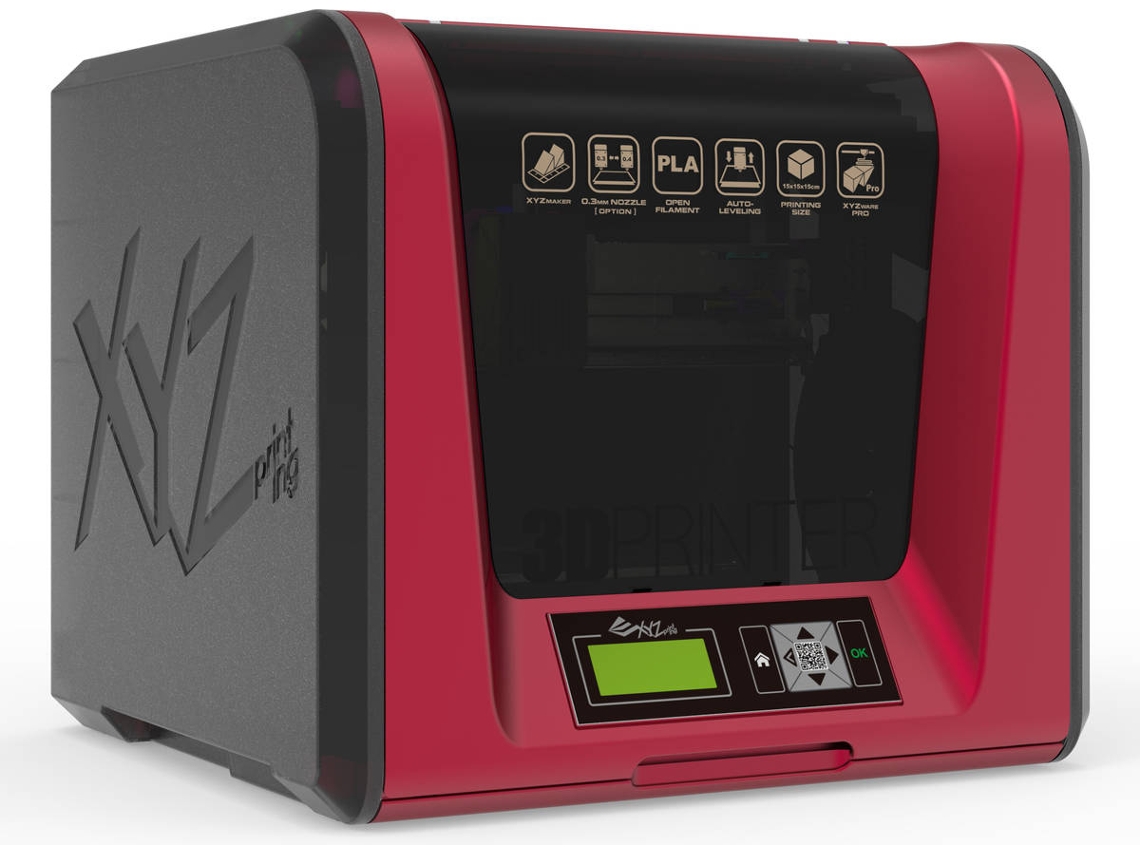

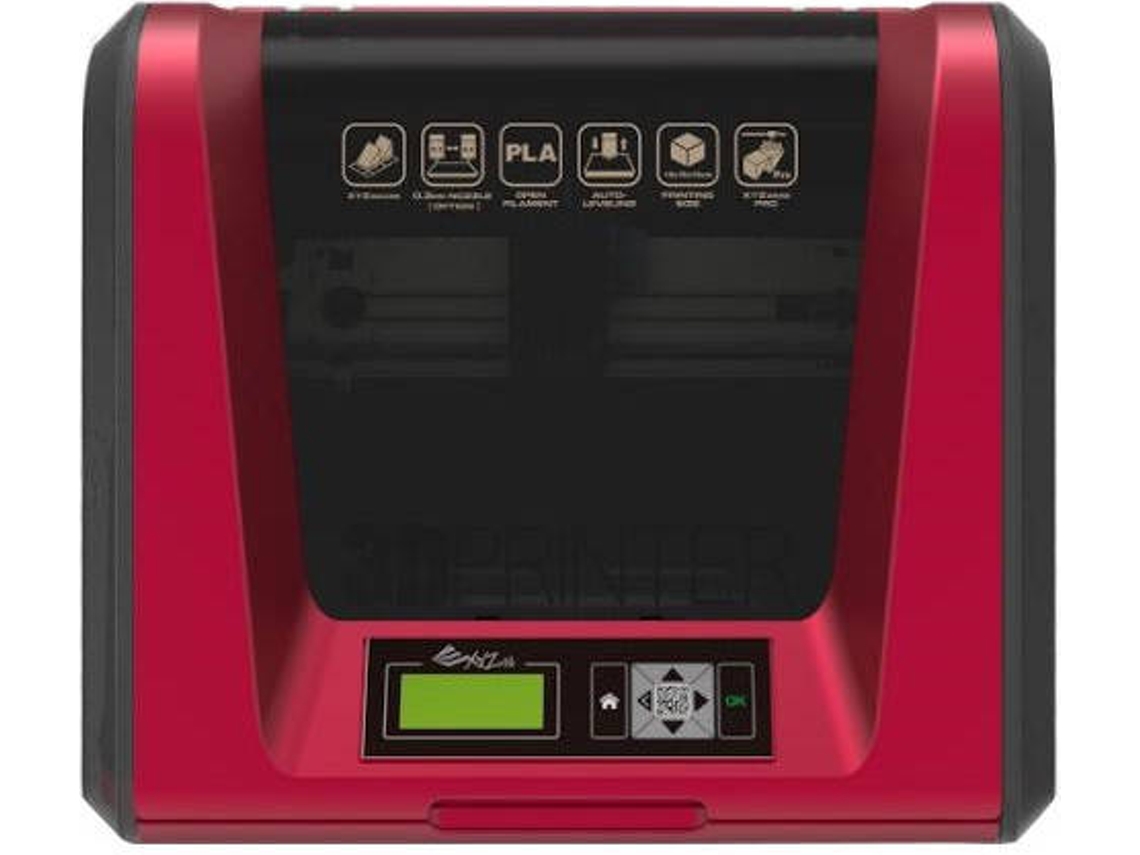

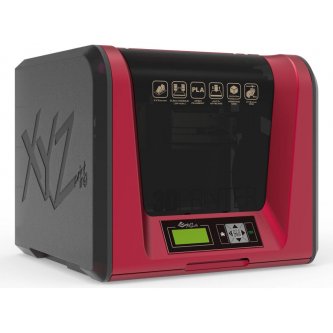

Da Vinci Junior 1.0 3D Printer

Da Vinci Junior 1.0: 3D Printer Features

Printing properties

  • Printing Technology: FFF - Melt Filament Manufacturing
  • Maximum printing area (WxDxA): 150 x 150 x 150 mm
  • Layer resolution: 100 - 400 microns
  • Positioning accuracy XY: X/Y 12.5 mícrons
  • Positioning accuracy Z: Z: 0.0004 mm
  • Printing software: XYZmaker Suite
  • Supported file formats: .stl, .3mf, .obj, .igs, .stp, .ply, .amf, XYZ format (.3w), .nkg (.stl)
  • 3D Builder support: YES
  • Printing speed: Max. 120 mm/sec.

Material

  • Material compatibility: PLA / antibacterial PLA / PETG / resistant PLA
  • Filament diameter: 1.75 mm
  • Stepper motors 1.8 ° HB
  • User interface: LCD
  • Language: Multilingual
  • Connectivity: USB 2.0 cable, SD card

Extruder

  • Nozzle diameter: 0.4 mm (option 0.3 mm) * The 0.3 mm nozzle does not support PETG.
  • Number of nozzles: 1

Print tray

  • Print Tray: Non-removable glass
  • Calibration: AUTO

System requirements

  • Operating Systems: Windows 7 / 8 / 8.1 / 10 (64-bit) & MacOS 10.12 / 10.13 / 10.14
  • Minimum Hardware Requirements: For PC: Intel® Core CPU ™ 4th generation with i5 processor or higher / RAM: 8 GB / Hard Disk Space: 20 GB or more & For MAC: RAM: 8 GB / Hard Disk Space: 20 GB or more

Operational requirements

  • Operating temperature: 15 ~ 32 °C
  • Power supply requirements: 100 V ~ 240 V 12 V / 60 W
  • Operating humidity: 30 ~ 60% RH (non-condensing)
  • Storage temperature - Filament: 10 ~ 40 °C

Height and weight

  • Product dimensions (WxDxH): 420 x 430 x 380 mm
  • Product weight: 12 kg
  • Packed dimensions (WxDxH): 505 x 588 x 475 mm
  • Packed weight: 15 kg
