Cytron Maker Uno Plus Kitronik
The Cytron Maker UNO Plus is an Arduino-compatible board specially designed for teaching electronics and coding in schools or workshops. It simplifies the understanding of circuits thanks to visual indicators directly integrated on the pins.
LED on each GPIO, integrated buzzer with switch, programmable button, Micro USB power supply, full Arduino compatibility, CE FCC RoHS certification.
Cytron Maker UNO Plus Arduino-Compatible Education Board
The Cytron Maker UNO Plus is an Arduino-compatible board specially designed for teaching electronics and coding in schools or workshops. It simplifies the understanding of circuits thanks to visual indicators directly integrated on the pins.
LED on each GPIO, integrated buzzer with switch, programmable button, Micro USB power supply, full Arduino compatibility, CE FCC RoHS certification.

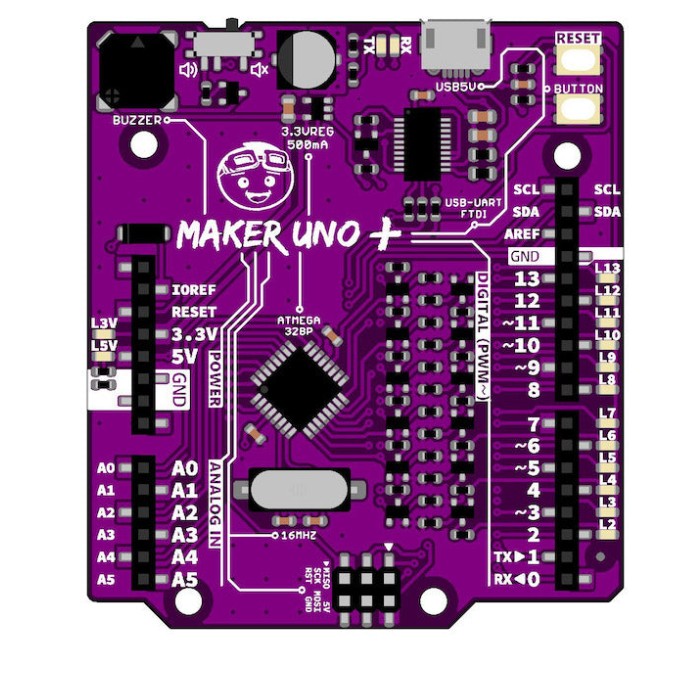

- Arduino-compatible board for education and workshops
- Integrated status LED on each GPIO pin
- 12 additional on-board LEDs
- Integrated piezo buzzer with dedicated switch
- Integrated programmable push button

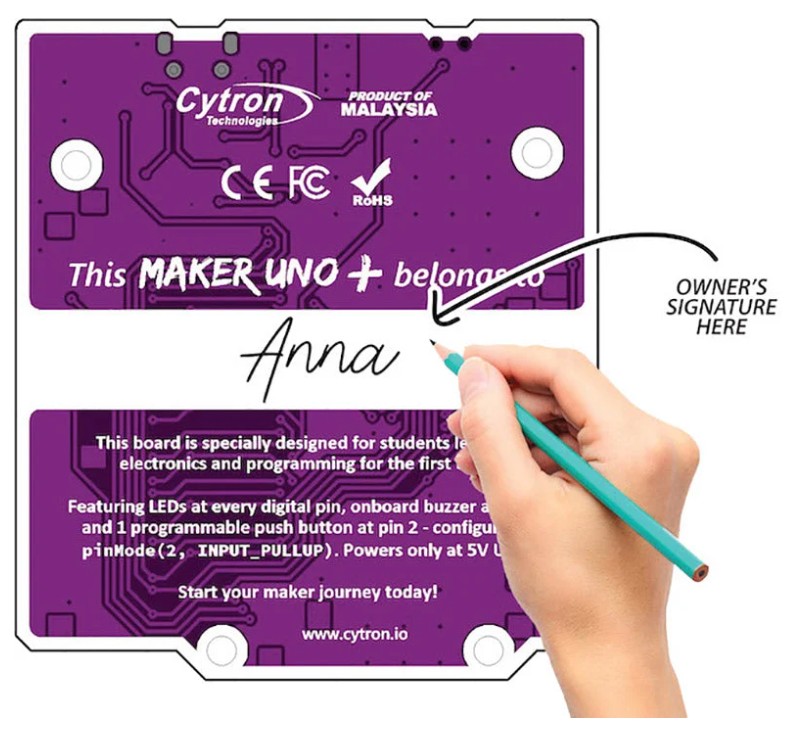

- Stickers provided to identify pins
- Rear area for custom labelling
- 3.3 V output boosted to 500 mA
- Connection via Micro USB
- FT231X USB to serial converter
- Compatible with Arduino libraries and code
- CE FCC RoHS compliant
Required items not included
- Computer with Arduino IDE
Cytron Maker UNO Plus Technical Specifications
- Full Arduino compatibility
- Status LEDs on GPIO
- 12 onboard LEDs
- Integrated piezo buzzer
- Programmable button
- 3.3 V 500 mA output
- Micro USB connector
- FT231X USB to serial converter
- Length 6.93 cm
- Width 6.1 cm
- Height 1.05 cm
- PCB thickness 0.16 cm

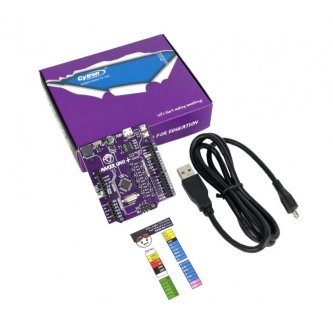

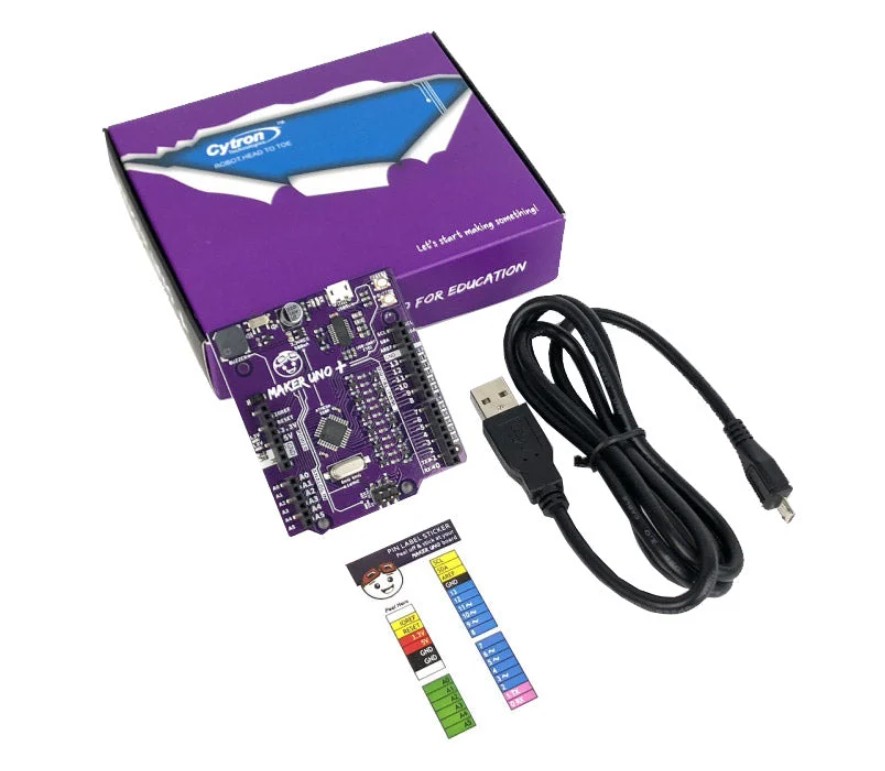

1 Cytron Maker UNO Plus card
1 Micro USB cable
1 sheet of stickers for pin identification
