Cytron Maker UNO X Arduino-Compatible Board Kitronik
The Cytron Maker UNO X is an Arduino-compatible board designed for STEM education and workshops. It has been designed to avoid the frustrations of early assembly by directly integrating visual tools and a ready-to-use prototyping area.
LED on each digital pin, integrated buzzer, programmable button, on-board breadboard, Micro USB power supply compatible with power banks.

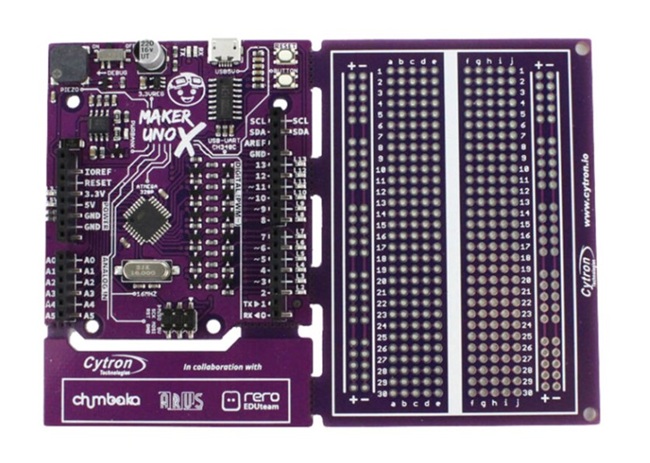

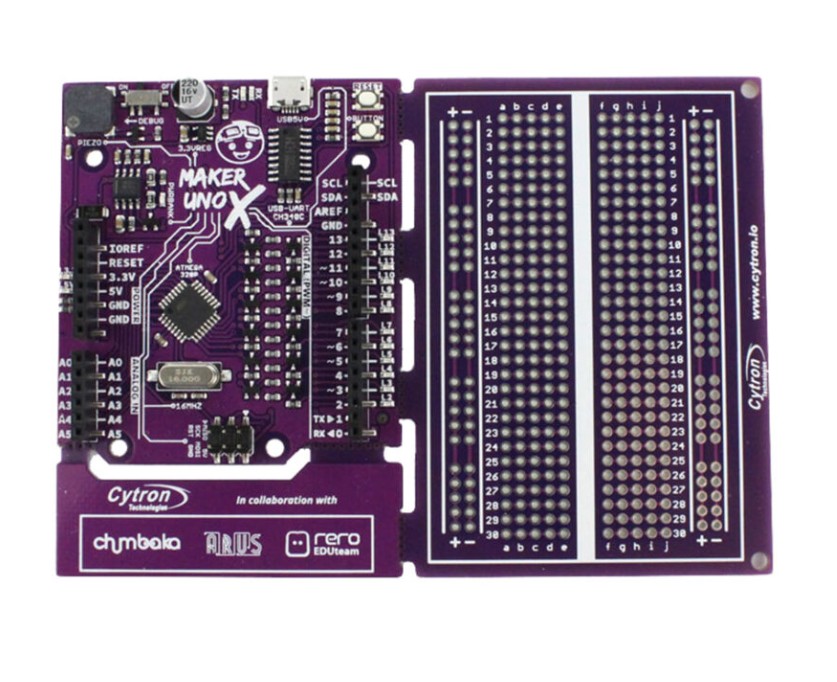

Cytron Maker UNO X Arduino-Compatible Board with Integrated Breadboard
The Cytron Maker UNO X is an Arduino-compatible board designed for STEM education and workshops. It has been designed to avoid the frustrations of early assembly by directly integrating visual tools and a ready-to-use prototyping area.
LED on each digital pin, integrated buzzer, programmable button, on-board breadboard, Micro USB power supply compatible with power banks.
- Arduino UNO R3 compatible board
- ATmega328P microcontroller
- Prototyping breadboard integrated on the board
- Additional mini breadboard included
- Indicator LED on each digital pin D2 to D13
- TX RX LED for UART activity
- Integrated programmable button on D2
- Integrated piezo buzzer on D8
- Power supply and programming via Micro USB
- Power bank compatible
- Compatible with Arduino libraries and examples
- Ideal for classrooms and training centres
Cytron Maker UNO X Technical Specifications
- ATmega328P microcontroller
- 5 V operating voltage
- 20 digital I/O pins, including 6 PWM pins
- 6 analogue inputs, 10-bit resolution
- 1 UART, 1 SPI, 1 I2C
- 32 KB flash memory
- 2 KB SRAM
- 1 KB EEPROM
- 16 MHz frequency
- CH340 USB UART converter
- Length approx. 6.9 cm
- Width approx. 5.3 cm

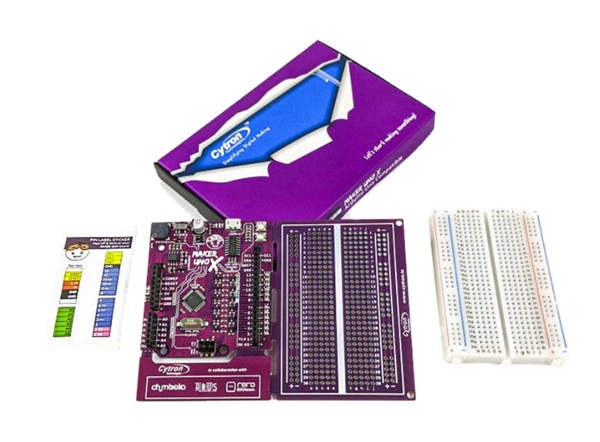

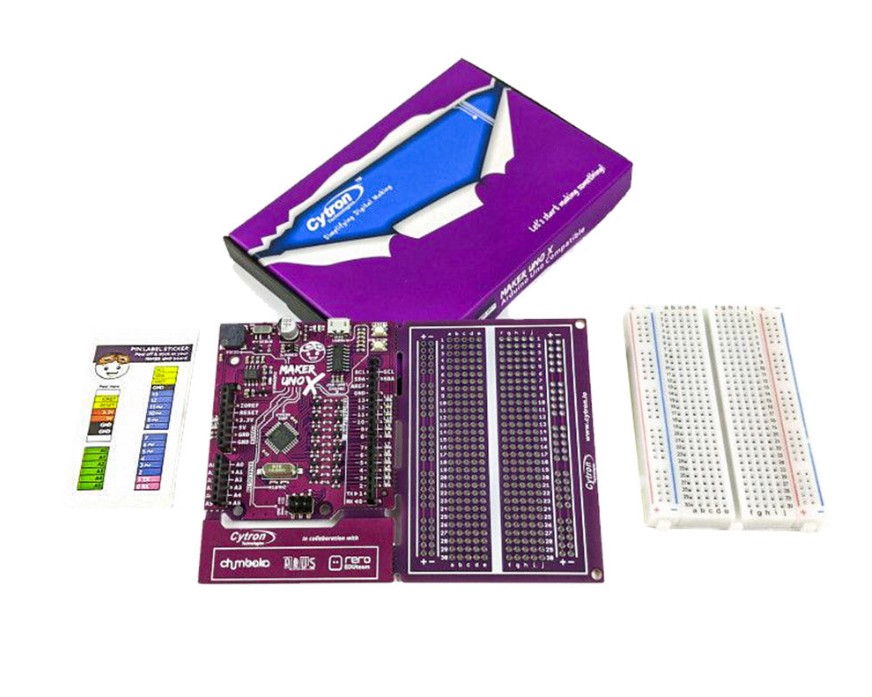

1 Cytron Maker UNO X card
1 mini breadboard
1 sheet of stickers for pin identification
