Dynamixel Robotis AX-18A Servo

Dynamixel Servo Robotis : AX-18A

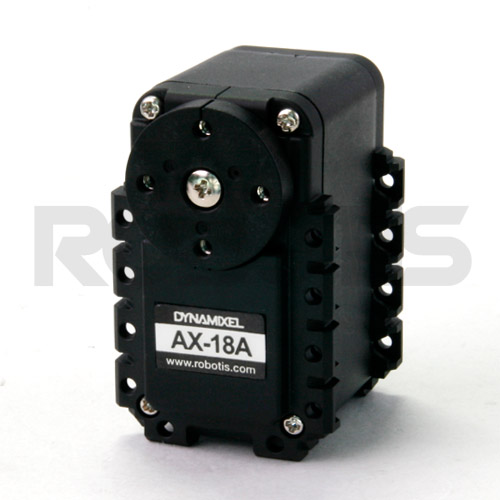

DYNAMIXEL is a robot exclusive smart actuator with fully integrated DC Motor + Reduction Gearhead + Controller + Driver + Network in one DC servo module.

• Dynamixel AX-series are used in ROBOTIS STEM, Premium, and GP.
• You can easily create various types of robots such as humanoid, 4 legged and 6 legged robot with the AX-series.
• It can also be used as a wheel so that you can create a robot with a combination of wheel type and joint type in a single module.
• By using a variety of high-strength engineering plastic option frames or by printing frames using a 3D printer, you can produce any type of robot at a low cost.
• AX-18A is a high performance version of the popular DYNAMIXEL AX-12A, and can be applied to robots that need more power.
• Applied a 4th metal gear to enhance endurance

For full details of the Robotis AX-18A dynamixel actuator, consult the dedicated sheet on the official website HERE.

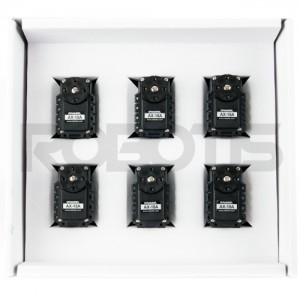

Caution : The set of 6 servomotors ensures a unit price lower than the purchase of a single model but does not include the accessories normally provided.

Servo AX-18A: specifications​​

• Model Name AX-18A
• MCU 0
• Input Voltage Min. [V] 9.0 / Recommended [V] 11.1 / Max. [V] 12.0
• Performance Characteristics Voltage [V] 12.0 / Stall Torque [N·m] 1.80 / Stall Current [A] 2.2 / No Load Speed [rpm] 97.0 / No Load Current [A] 0.17
• Continuous Operation Voltage [V] - / Torque [N·m] - / Speed [rpm] - / Current [A] -
• Resolution Resolution [deg/pulse] 0.2930 / Step [pulse] 1,024 / Angle [degree] 300
• Position Sensor Potentiometer
• Operating Temperature Min. [°C] -5 / Max. [°C] 70
• Motor Coreless
• Baud Rate Min. [bps] 7,843 / Max. [bps] 1,000,000
• Control Algorithm Compliance
• Gear Type Spur
• Gear Material Engineering Plastic
• Precious Metal
• Case Material Engineering Plastic
• Dimensions (WⅹHⅹD) [mm] 32 X 50 X 40
• Dimensions (WⅹHⅹD) [inch] 1.26 X 1.97 X 1.57
• Weight [g] 55.90
• Weight [oz] 1.97
• Gear Ratio 254 : 1
• Command Signal Digital Packet
• Protocol Type Half duplex Asynchronous Serial Communication (8bit, 1stop, No Parity)
• Link (Physical) TTL Level Multi Drop Bus
• ID 0 ~ 253
• Feedback Position, Temperature, Load, Input Voltage, etc
• Protocol version 1
• Operating Mode / Angle Wheel Mode：Endless turn / Joint Mode：300 [deg]
• Output [W] -
• Standby Current [mA] 50

AX-18A Robotis: compatible products

• Controller : CM-5, CM-510, CM530, CM-700, OpenCM9.04(+ OpenCM485 Expansion Board), OpenCR
• Interface : USB2Dynamixel, U2D2

Consult the Robotis Dynamixel compatibility table HERE.

Caution :

• Only AX-series frames can be used. Optional frames for MX-series and X-series cannot be used.
• Please maintain the highest limit temperature the same as the default setting value for safe usage
