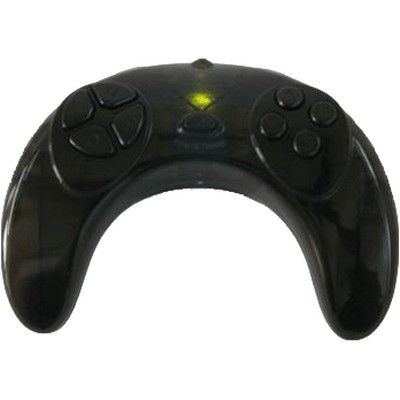

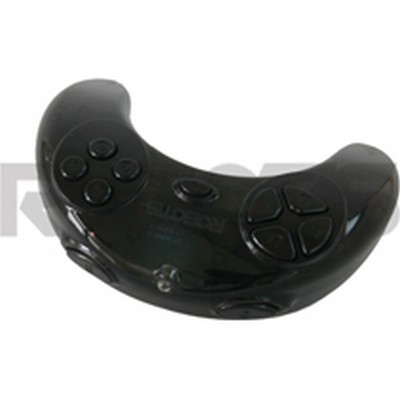

Joystick Remote Control RC-100
What better way to control your Bioloid than a remote controller of video games?
And when each button or combination can trigger a behavior on your robot, wich could have been a simple game becomes a real interactive and smart experience!
The RC-100 is a joystick compatible with your wireless equipment for Bioloid (ZIG-100, ZIG-110, not included).Each button sends a unique value ranging from 1 to 1023 that will allow your robot to identify the buttons pressed, and respond accordingly to your choice.
All key combinations are made possible by an ingenious system of values. Each of the 10 buttons has a unique value. This value is then processed by the control program behavior. In case of no prolonged use of the joystick, it goes to sleep and save energy.
Buttons output
• [U] : 1
• [D] : 2
• [L] : 4
• [R] : 8
• [1] : 16
• [2] : 32
• [3] : 64
• [4] : 128
• [5] : 256
• [6] : 512
Features
• 10 buttons
• 1023 combinations
• Wireless communication Zigbee/Bluetooth
• ZIG-100 or ZIG-110 needed (not included)
• Power : 2 AA batteries (not included)
• 1x Remote controller RC-100
