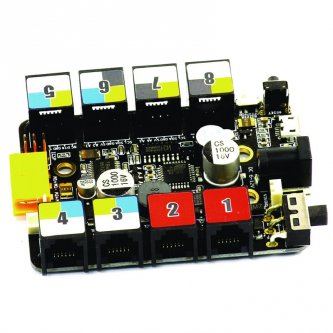

Makeblock Orion Board Type Arduino
This Orion Type Arduino programmable board from Makeblock is specially designed for robot development. It is composed of an arduino UNO-328 compatible core (ATmega328 base) associated with a "TB6612" type motor driver, which will be directly able to drive 2 "dc" motors (6 to 12 V / 1 A max.)
Power supply: 7 - 12 V, micro USB programming connector, ATmega328 microcontroller, 32 KB Flash memory (ATmega328), SRAM 2.5 KB, EEPROM 1 KB, clock Speed 16 MHz and dimensions: 80 x 60 x 18 mm.
Makeblock Orion Type Arduino board programmable for robotics
This Orion Arduino type programmable board from Makeblock is specially designed for robot development. It is composed of a UNO-328 arduino compatible core (ATmega328 base) associated with a "TB6612" type motor driver, which will be directly able to drive 2 "dc" motors (6 to 12 V / 1 A max.)
- Power supply: 7 - 12 V
- Connections for programming: micro USB
- Microcontroller: ATmega328
- Flash memory 32 KB (ATmega328)
- SRAM: 2.5 KB )
- EEPROM: 1 KB
- Clock Speed 16 MHz
- Dimensions: 80 x 60 x 18 mm
The Orion board features an easy-to-use connection with eight RJ25 ports. This connection technique takes advantage of the ATmega328 Arduino microcontroller's main signals to connect a variety of input/output expansion modules without the need to solder.
Compatible with the mBlock program.
