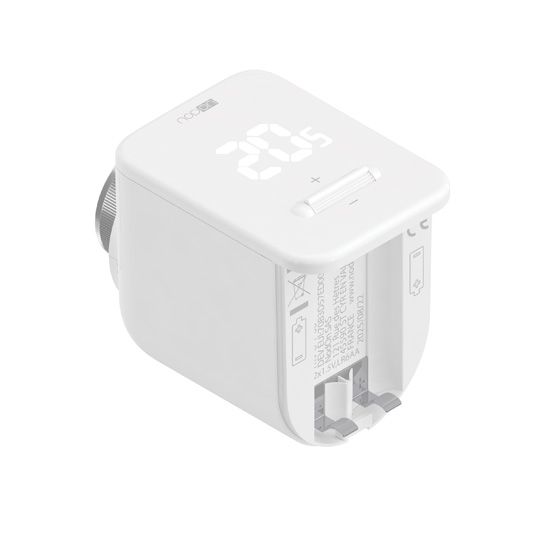

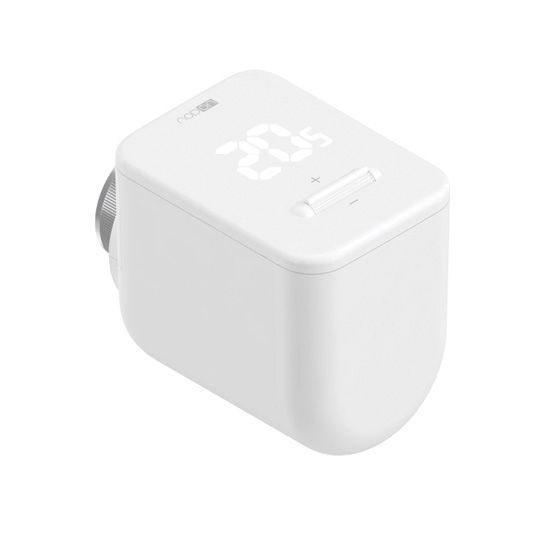

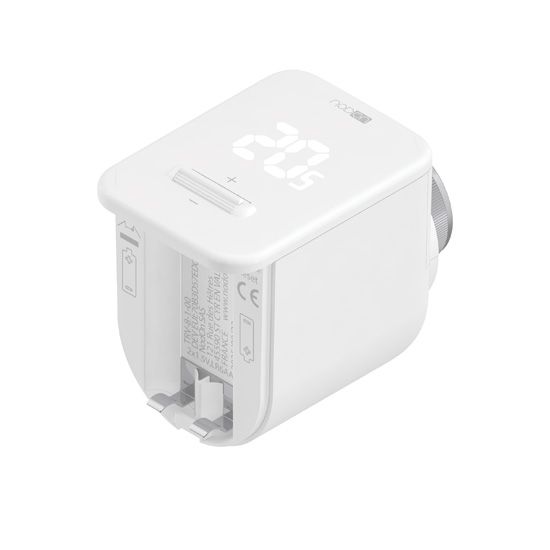

Nodon LoRaWAN Thermostatic Valve Head
Nodon's LoRaWAN thermostatic head allows you to remotely regulate the temperature of your radiators while optimising energy consumption. Thanks to its LoRaWAN connectivity, it integrates seamlessly into large-scale networks, ideal for homes, offices or buildings, without complex cabling or local gateways. Easy to install and energy efficient, it also detects when windows are opened to prevent wasted heating.
Energy savings, automatic comfort, extended LoRaWAN range, easy installation, extended battery life, remote control.
Nodon LoRaWAN thermostatic valve head – Remote radiator control
Nodon's LoRaWAN thermostatic head allows you to control the temperature of your radiators remotely, while optimising energy consumption. Thanks to its LoRaWAN connectivity, it integrates seamlessly into large-scale networks, ideal for homes, offices or buildings, without complex cabling or local gateways. Easy to install and energy efficient, it also detects when windows are opened to prevent wasted heating.
Energy savings, automatic comfort, extended LoRaWAN range, easy installation, extended battery life, remote control.
- Time programming to optimise energy consumption
- Window opening detection to automatically turn off the heating
- Extended LoRaWAN range, ideal for large buildings or installations
- Easy installation on most radiators thanks to the adapters provided

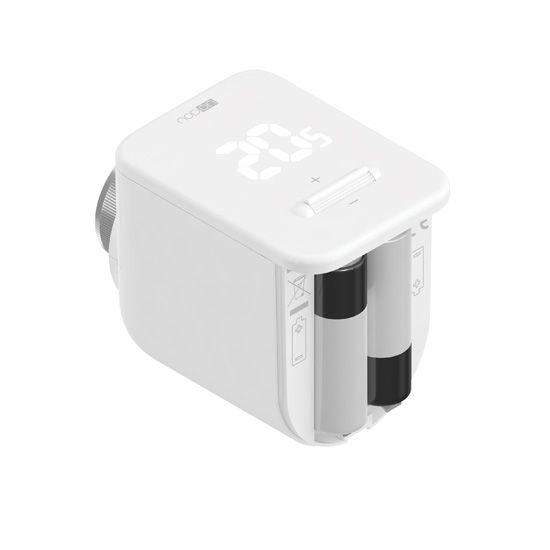

- Battery life of up to 5 years with 2 AA batteries (included)
- Remote control via LoRaWAN networks for large-scale management
- Quick manual adjustment possible directly on the valve head
- Frost/corrosion protection for a long service life
Technical specifications – Nodon LoRaWAN thermostatic valve head
- Power supply: 2 × 1.5 V AA (LR6) batteries
- Battery life: approx. 5 years (with batteries)
- Connection: M30 × 1.5 mm (adapters included: RA, RAV, RAVL)
- Control range: 8–28 °C
- Radio protocol: LoRaWAN® EU868 (v1.0.4)
- Frequency bands: L 865.0–868.0 MHz; M 868.0–868.6 MHz; O 869.4–869.65 MHz
- Duty cycle: 1% per hour, max. radio power: +10 dBm
- Estimated range: >6 km in free field (SF9), ADR support
- Motor force: >125 N, valve stroke: 4.8 mm
- Category: 2
- Protection rating: IP20
- Operating temperature: 0 to +40 °C
- Dimensions: 50 × 85 × 71 mm
- Weight: 180 g (including batteries)
- Additional functions: open window detection, frost/corrosion protection, manual adjustment via toggle switch
- Standards and certifications: EN 60730-1, EN 60730-2-9, EN 300 328, EN 301 489-1 (and others applicable)
- Reference: TRV-8-1-00 (EAN: 3700313926437)
- Note: requires an available LoRaWAN network
