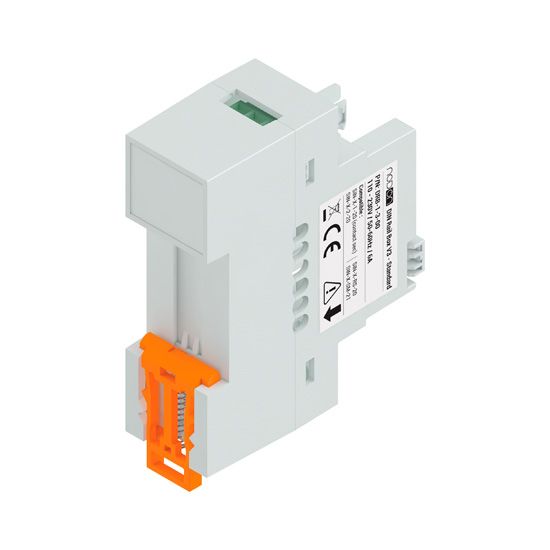

DIN Rail Enclosure V3 Standard Version Nodon

Nodon DIN Rail V3 Standard Version: DIN bracket for home automation modules

The Nodon DIN Rail V3 (Standard Version) allows you to easily mount and connect your home automation modules directly in the electrical panel. Ideal for both new projects and renovations, it simplifies installation, avoids additional cable runs and speeds up the commissioning of connected devices.

Quick installation, wide compatibility, lighting and shutter control, DIN rail mounting, compact and lightweight design.

• Saves time during preparation and on-site installation
• Modernises installations without rewiring, ideal for renovations
• Enables motorised roller shutters to be controlled remotely
• Facilitates the creation of two-way switches without additional cabling
• Quick and secure installation thanks to direct mounting on DIN rail
• Compatible with most residential and commercial electrical panels
• Compact and lightweight product for discreet integration

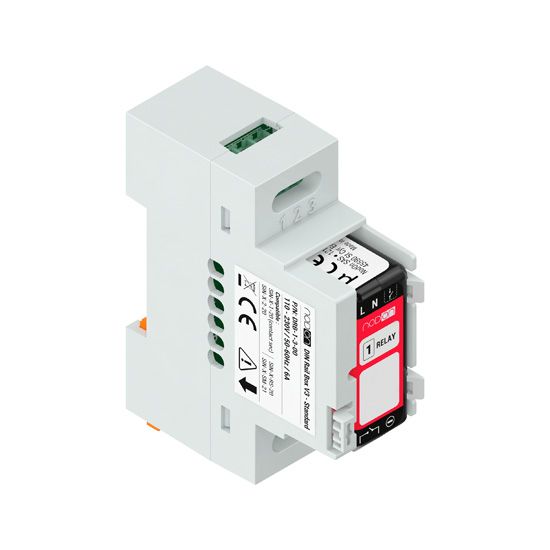

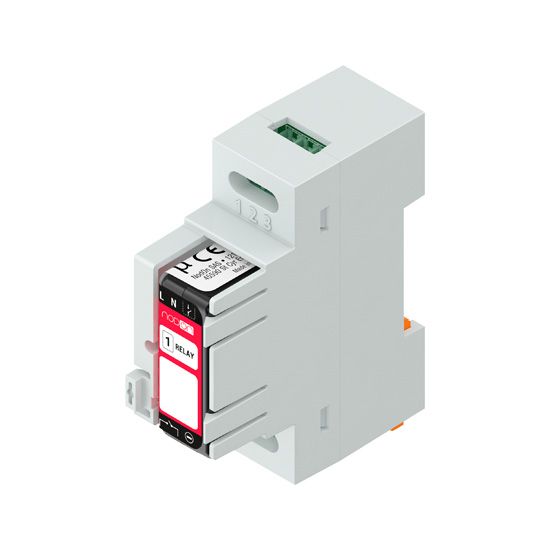

• Easy module attachment with integrated clips and notches

Technical specifications – Nodon DIN Rail Enclosure V3 (Standard Version)

• Brand: Nodon
• Model: DIN Rail Enclosure V3 (Standard Version)
• Compatible module models: SIN-X-1-20, SIN-X-2-20, SIN-X-RS-20, SIN-X-SM-21
• Supported functional modules: Lighting ON/OFF, Roller shutter, Multifunction, Smart Meter (consumption measurement)
• Mounting: DIN rail type O EN 50022
• Maximum current: 6 A
• Operating temperature: -20 °C to +40 °C
• Protection rating: IP20
• Dimensions: 8.2 × 6.6 × 2.5 cm
• Weight: 48 g

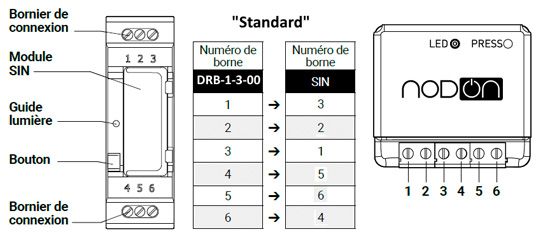

• Connection terminals: 1 to 6 (simple connection to the panel)

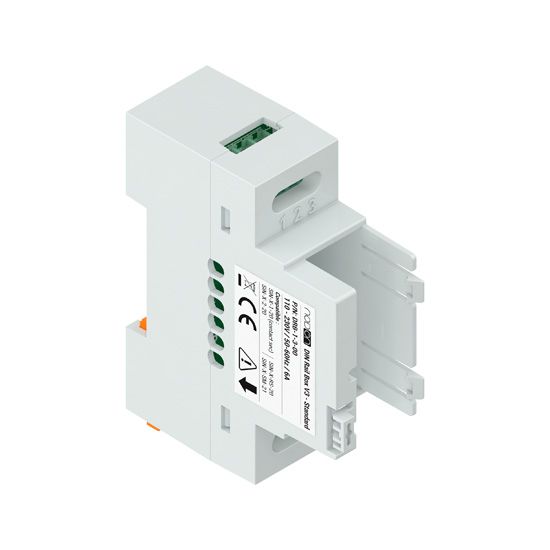

• Assembly: quick module attachment using internal clips and external notches
• Main standards: EN 60947-7-1
• Secondary standard: EN 61984
• Commercial warranty: 2 years
• Reference: DRB-1-3-00 (EAN pack x5: 3700313926284)
