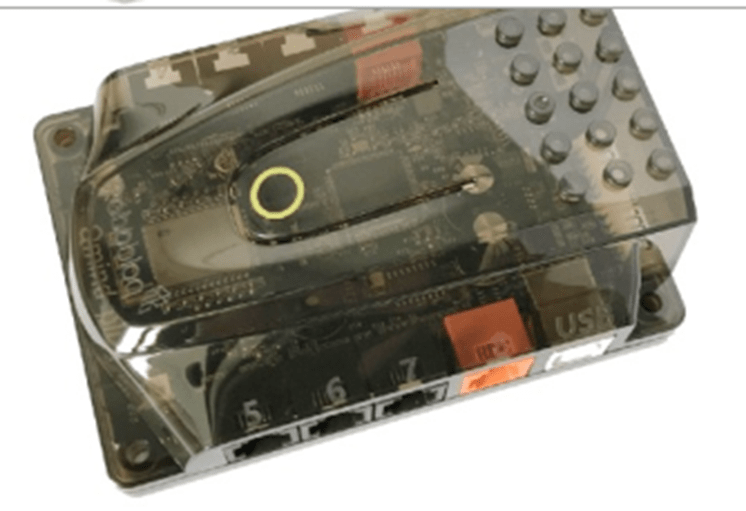

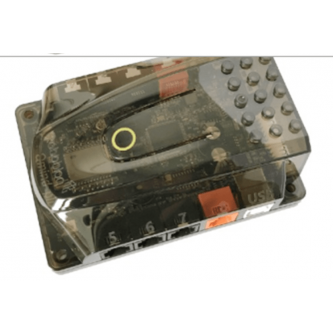

Qmind Plus Robobloq
Robobloq Educational Robot
Qmind for Robobloq is based on the open source hardware Arduino 328p chip, which can quickly connect various sensors, servo drives, DC motors and facilitate users to quickly build robot applications. It has two RGB LED full-color lights onboard, a user-defined button, four expansion ports, support for Scratch 3.0 graphical programming, C language anf python programming.
Qmind Plus by Robobloq: specifications and features
Specification Qmind Plus Robobloq
- Working voltage: DC 6.4-9v
- Processor: Arduino 328P
- DC motor drive: 2 way
- Communication: Bluetooth 4.0
- Sensor interface: 1 way
- Maximum current: 2.5A
- Module size: 110mm x 76mm x 34mm (length x width x height)
Features Qmind Plus Robobloq
- With anti-reverse + overcurrent protection
- Support for Arduino IDE programming and a library to simplify programming
- Support Robobloq graphical programming for all ages
- Easy to connect using RJ11 interface, compatible with Robobloq platform
