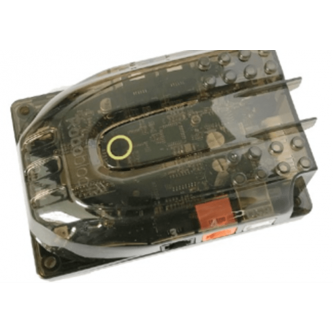

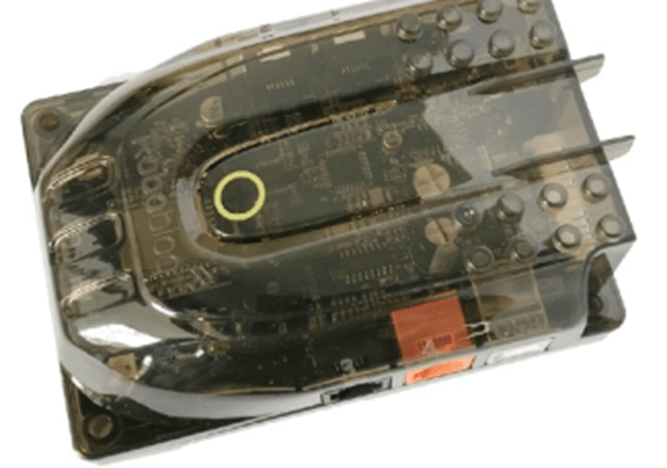

Qmind Robobloq

Robobloq Educational Robot
Robobloq

Qmind for Robobloq is based on the open source hardware Arduino 328p chip, which can quickly connect various sensors, servo drives, DC motors and facilitate users to quickly build robot applications. It has two RGB LED full-color lights onboard, a user-defined button, four expansion ports, support for Scratch 3.0 graphical programming, C language anf python programming.

> Read more
Order
Site Reference : RA_RBQ016
Manufacturer Reference : 10311301

Out of stock

Qmind by Robobloq: specifications and features



Specification Qmind Robobloq

  • Working voltage: DC 6.4-9v
  • Processor: Arduino 328P
  • DC motor drive: 2 way
  • Communication: Bluetooth 4.0
  • Sensor interface: 1 way
  • Maximum current: 2.5A
  • Module size: 116mm x 76mm x 34mm (length x width x height)



Features Qmind Robobloq

  • With anti-reverse + overcurrent protection
  • Support for Arduino IDE programming and a library to simplify programming
  • Support Robobloq graphical programming for all ages
  • Easy to connect using RJ11 interface, compatible with Robobloq platform
