Robotis Engineer Kit 1

Robotis Engineer Kit 1: next generation AI robot

ROBOTIS ENGINEER is a new type of robot that uses the artificial intelligence (AI) technology present in smartphones, tablets and mini-computers. This kit is a set of components to create a new generation of robot using the artificial intelligence embedded in smartphones and tablets, and is intended for the study of modern robotics.

After assembly, the smartphone connects to the robot controller via Bluetooth to operate it. The program recognizes objects, people and voices using the smartphone's camera and microphone.

ROBOTIS ENGINEER is the new generation of robots that adopts AI technology from smartphones, tablets and mini-computers.

ROBOTIS ENGINEER KIT1 is perfectly suited for learning robotics through the exploration of various technologies:

• Artificial Intelligence
• 3D printing of mechanical parts
• Programming
• Image analysis
• Robotics

Specifications Robotis Engineer Kit 1

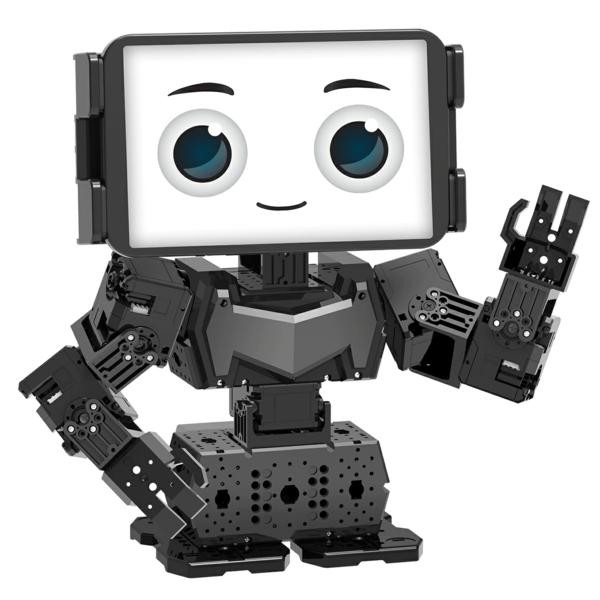

The Dr.R robot is a robot based on an artificial intelligence allowing it to identify objects, faces and voice

6 Servomotors type 2XL430-W250-T

• Double actuator servo motor
• Stall torque 1,5 Nm at 12V (1,4A)
• No-load speed 61 rpm
• Weight 98,2g
• Dimensions 36 x 46,5 x 36 mm
• Reduction ratio 257,4 : 1
• Materials: metal gears
• Technical plastic housing

Lithium Polymer battery

• Voltage 11,1 V (3 cells)
• Capacity 1300mAh
• Discharge rate 15C
• Dimensions: 70 x 36 x 24mm
• Weight 102g

Controller CM-550

• Processor ARM Cortex M4
• 1 Microphone
• 1 Buzzer
• 1 Voltage sensor
• 1 Gyrometer
• 1 Accelerometer
• 3 RGB Led
• Bluetooth communication (BLE Slave)
• 5 input/output ports
• 6 connectors for Dynamixel X series 3P

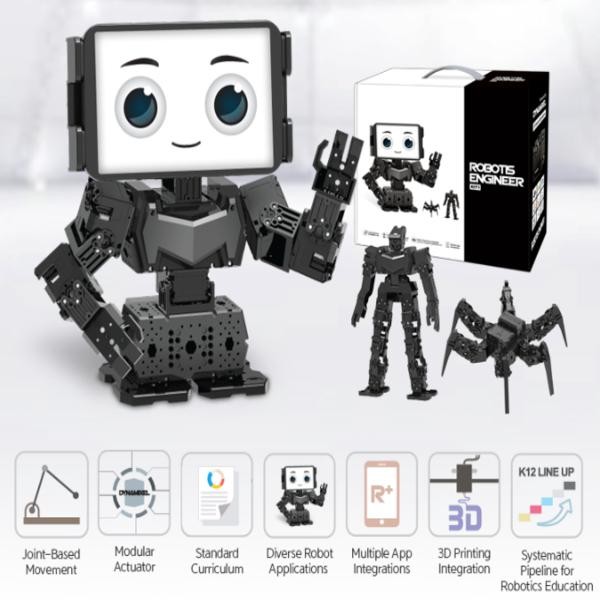

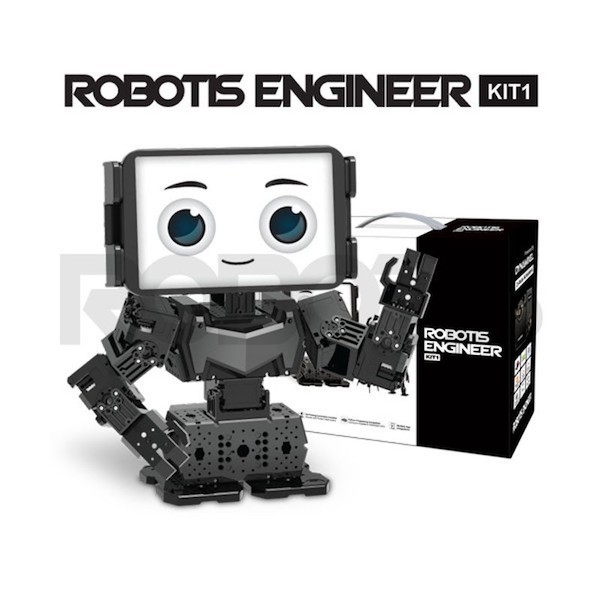

Contents of the Robotis Engineer Kit 1

Kit Robotis Engineer Kit 1 : dimensions

Robotis Engineer Kit 1: resources

• Manual in English
• Installation manual in English
