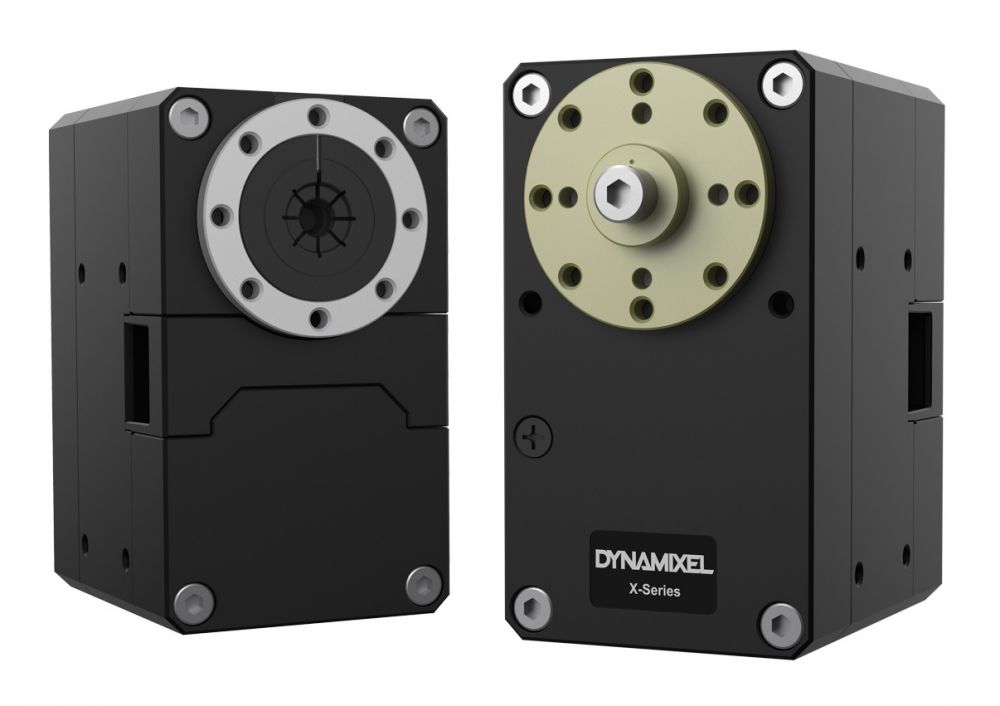

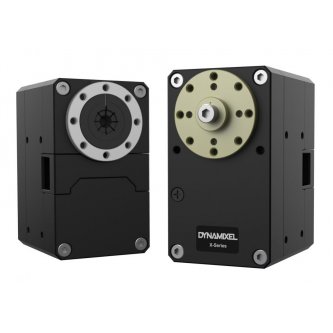

Servomotor Dynamixel XM540-W150 T/R

Robotis Dynamixel servomotor
Robotis

DYNAMIXEL is an intelligent robot-exclusive actuator with a fully integrated DC motor + reduction gearbox + controller + pilot + network in a DC servo module.

The DYNAMIXEL XH / XM series offer a variety of control techniques based on high-performance current detection algorithms. It adopts the aluminium housing and adopts new technology such as the hollow cable fixing structure for user comfort.

Choose on this product sheet before your order the dynamixel XM540-W150-T or XM540-W150-R.

> Read more
Order
Site Reference : RA_GEN014-015
Manufacturer Reference :

+ -
Available
Shipped within 2 to 8 Days
495,90 €

Robotis Servomotor Dynamixel XM540-W150  T and R

DYNAMIXEL is a robot exclusive smart actuator with fully integrated DC Motor + Reduction Gearhead + Controller + Driver + Network in one DC servo module.

The DYNAMIXEL XH / XM-Series offers a variety of control techniques based on high-performance current sensing algorithms. It adopts the aluminum case and adopts the new technology such as the hollow cable fastening structure for users’ convenience.

To know all the specificities of the Robotis dynamixel servomotor XM540-W150 T & R, consult its dedicated sheet on the official website​ HERE.



  • 6 Operating Modes
  • Torque Control, Velocity Control, Position Control, Extended Position Control, Current based Position Control, PWM Control
  • Profile Control for Smooth Motion Planning
  • Improved Heat Sink Featuring an Aluminum Case
  • Hollow Back Case Minimizes Cable Stress (3-way-routing)
  • Direct Screw Assembly to the Case (without Nut Insert)
  • Energy Saving (Reduced Current from 100mA to 40mA)
  • 28.4% reduced volume compared to the MX-106
  • Support synchronous control mode
  • Support external I / O port support

Servomoteur dynamixel X540-W150 Performances



Dynamixel XM540-W150: specificities



  • Model Name XM540-W150-T or XM540-W150-R
  • MCU Cortex-M3 (72 [Mhz], 32 [bit])
  • Input Voltage Min. [V] 10.0 / Recommended [V] 12.0 / Max. [V] 14.8
  • Performance Characteristics Voltage [V] 12.0 / Stall Torque [N·m] 7.30 / Stall Current [A] 4.4 / No Load Speed [rpm] 53.0 / No Load Current [A] 0.07
  • Continuous Operation Voltage [V] - / Torque [N·m] - / Speed [rpm] - / Current [A] -
  • Resolution Resolution [deg/pulse] 0.0879 / Step [pulse] 4,096 / Angle [degree] 360
  • Position Sensor Contactless absolute encoder (12 [bit], 360 [deg]) / Maker : ams(www.ams.com), Part No : AS5045
  • Operating Temperature Min. [°C] -5 / Max. [°C] 80
  • Motor Coreless
  • Baud Rate Min. [bps] 9,600
  • Max. [bps] 4,500,000
  • Control Algorithm PID
  • Gear Type Spur
  • Gear Material Precious Metal
  • Case Material Precious Metal(Front, Middle) / Engineering Plastic(Back)
  • Dimensions (WⅹHⅹD) [mm] 33.5 X 58.5 X 44
  • Dimensions (WⅹHⅹD) [inch] 1.32 X 2.30 X 1.73
  • Weight [g] 165.00
  • Weight [oz] 5.82
  • Gear Ratio 152.3 : 1
  • Command Signal Digital Packet
  • Protocol Type Half duplex Asynchronous Serial Communication (8bit, 1stop, No Parity)
  • Link (Physical) TTL Level Multi Drop Bus (Model T) / RS485 Multi Drop Bus (Model R)
  • ID 0 ~ 252
  • Feedback Position, Velocity, Current, Realtime tick, Trajectory, Temperature, Voltage, External Port, etc.
  • Protocol version 1.0 / 2.0 (Default)
  • Operating Mode / Angle Current Control mode:Endless turn
  • Velocity Control mode:Endless turn
  • Position Control Mode:360 [deg] / Extended Position Control Mode:±256 [rev] / Current-based Position Control Mode:±256 [rev] / PWM Control Mode:Endless turn
  • Output [W] -
  • Standby Current [mA] 40





Compatibilities

  • Controller : OpenCM 485 Expansion Board, OpenCR1.0
  • Interface : USB2Dynamixel, U2D2

Check the Dynamixel compatibility table Robotis HERE.



Caution

  • DYNAMIXEL X-Series cable assembly through hollow case
  • Organize the entangled cable before assembling the back case.
  • Do not assemble the back case with entangled cable. The entangled cable can be squashed by the case and cause communication error.
  • If you use two cables through the hollow case, the cables will be damaged.
  • Use only one cable through the hollow case.
  • The DYNAMIXEL X-Series adopted a new gold-plated JST connector for secure and reliable communication.
  • The connector used for previous Dynamixel is Molex.
  • To control DYNAMIXEL X-Series actuators via OpenCM or USB2Dynamixel, please use the JST-Molex Convertible Cable enclosed in the package.



  • XM540-W150-T or XM540-W150-R 1
  • HN13-N101 1
  • Teflon Washer (for Horn Assembly) 1
  • Robot Cable-X3P 180mm 1
  • Robot Cable-X3P (Convertible) 180mm 1
  • 3P Sync Cable 160mm 1
  • Wrench Bolt WB M2.5x5 16
  • Wrench Bolt WB M2.5x4 10
  • Wrench Bolt WB M3x8 1
  • Spacer Ring 8
