Nodon DIN Rail Enclosure V3 Power Version: DIN support for power modules

The Nodon DIN Rail Enclosure V3 (Power Version) allows you to easily integrate your power modules directly into the electrical panel. This accessory optimises home automation installation, simplifies wiring and reduces on-site intervention time. Ideal for both new projects and renovations, it ensures quick and secure mounting of compatible modules.

Quick installation, pilot wire heating management, extensive compatibility, direct mounting on DIN rail, compact and robust design.

• Saves time during on-site installation
• Allows pilot wire heating control without rewiring
• Facilitates consumption measurement and monitoring (with compatible modules)
• Simple and secure installation directly on DIN rail
• Compatible with most residential and commercial electrical panels
• Compact and lightweight design for minimal space requirements
• Compatible with multifunction modules with or without metering
• Professional manufacturing quality and 2-year warranty

Technical specifications – Nodon DIN Rail Enclosure V3 (Power Version)

• Brand: Nodon
• Model: DIN Rail Enclosure V3 (Power Version)
• Compatible modules: SIN-X-1-20, SIN-1-21, SIN-X-FP-21 (modules sold separately)
• Compatible DIN rail: type O EN 50022
• Maximum current: 14 A
• Operating temperature: -20 °C to +40 °C
• Protection rating: IP20
• Dimensions: 8.2 × 6.6 × 2.5 cm
• Weight: 49.5 g

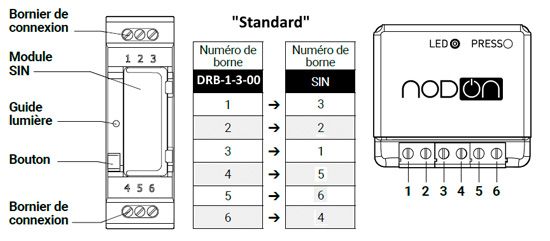

• Connection terminals: 1–6 (simple wiring to the panel)
• Main standards: EN 60947-7-1
• Secondary standard: EN 61984 Commercial warranty: 2 years Reference: DRB-1-3-10 (EAN pack x5: 3700313926314)
