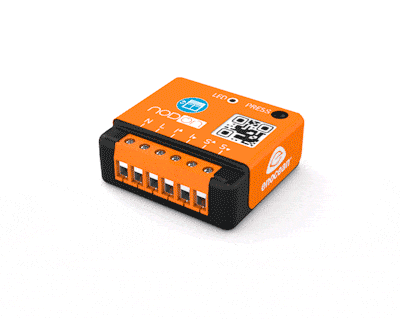

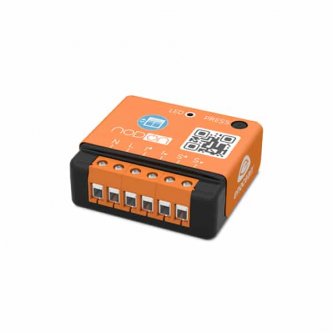

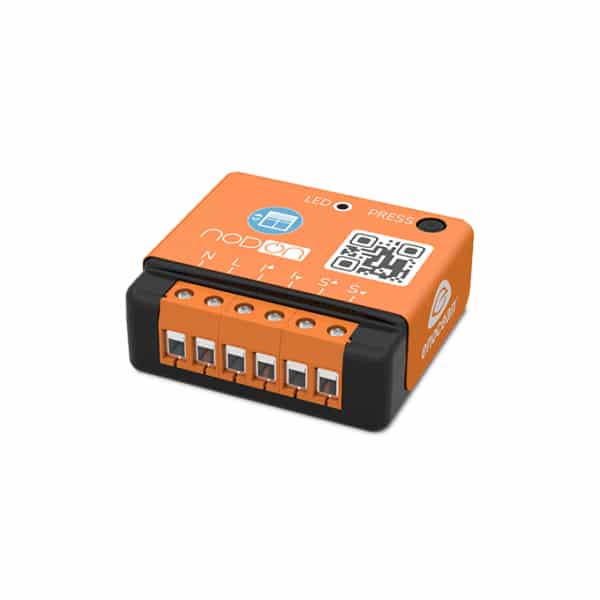

EnOcean Roller Shutter Module

NodOn Relay Switch
NodOn

The EnOcean roller shutter module from NodOn will allow you to transform your blinds and roller shutters into connected devices without any work. This ultra-compact module can be placed behind a wall, ceiling or switch to control your blinds and roller shutters remotely wherever you want in your home.

This installation requires no wires or work and will even allow you to program scenarios to automatically open and close your shutters (Morning or night) without having to press the switch.

> Read more
Order
Site Reference : RA_TIL082
Manufacturer Reference : NO-SIN-2-RS-01

Out of stock
54,90 €

Your blinds and roller shutters become connected

With the EnOcean Roller Shutter Module for blinds and roller shutters from NodOn, you no longer need to have the switch next to your shutters to control them. Install the module wherever you want in your home to control blinds and shutters from wherever you want with a remote control or a NodOn wireless switch. Also program scenarios to open or close your shutters automatically and without switches in the morning and evening.

  • Auto calibration of the flush-mounted module on your installation, no need for adjustment
  • Ultra compact, this EnOcean recessed module for roller shutters and blinds is less than 17mm thick
  • This Module will transform any shutter or motorized blind into connected equipment: roller shutters, awnings, garage doors, etc...
  • Compatible with the EnOcean process, this module can be installed without any physical intervention from the installer


With the EnOcean roller shutter module, you can:

  • Add new NodOn wireless switches to control your roller shutters, away from them
  • Run scenarios to automatically open your blinds and let the outside heat in and not turn on your heater
  • Simulate your presence in your absence by opening and closing your shutters to deter theft
  • Launch a "wake-up" scenario and automatically open the shutters to only 20% to wake you up gently

EnOcean roller shutter module NodOn

Features of the EnOcean recessed module roller shutters from NodOn

  • Power supply: 230V AC 50Hz
  • Switching capacity: 230V AC - 5A
  • Maximum motor power: 280W Max – 60 Nm Max
  • Intrinsic consumption: <1W
  • Operating temperature: from 0°C to 40°C
  • Radio Protocol: EnOcean® EEP : D2-05-00
  • Medium radio frequency: 868.3 MHz
  • Signal range: up to 30 meters indoors
  • Dimensions: 40 mm (W) x 44 mm (L) x 16.9 mm (H)

Certifications of the EnOcean NodOn built-in module

Europe

  • IN 60669-1 : 1999+A1:02+A2:08 - IN 60669-2-1 : 2004+A1 : 09+A12 : 10
  • EN301489-01 V2.1.1 - EN301489-03 V2.1.1
  • EN300220-2 V3.1.1.1
  • EN62479 : 2010
  • 2012/19/EC WEEE Directive
  • 2006/95/EC
  • 2014/35/EU
