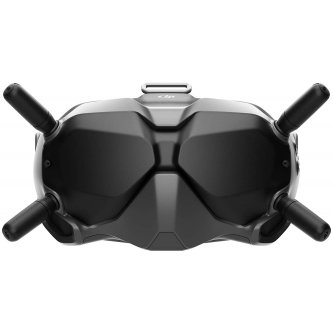

DJI FPV Goggles V2 Drone Headset
Discover the new immersive Goggles DJI for piloting your drones: the DJI FPV Goggles V2. It allows you to view your live images from the drone up to 10km away. 2-inch screen with 720p video return up to 120 IPS and almost instantaneous image display thanks to a low latency of 28ms. Delivered with a 1800mAh 2S Li-ion battery.
DJI FPV Goggles V2: experience your emotions aboard your drone and record your high-definition digital images with very low latency. Compatible with DJI FPV Controller and DJI FPV Air Unit. Warning: the DJI FPV Goggles V2 is only compatible with the DJI Air Unit or the Caddx Vista. It is not compatible with 5.8Ghz analog transmitters without modifications.
DJI FPV Goggles V2 : HD immersive Goggles for drones pilots
The DJI FPV Goggles V2 have a similar operation to the first version presented in 2019 but with improvements that will not go unnoticed during your flights with, for example, the DJI FPV Combo drone for which the DJI FPV Goggles V2 have been perfectly optimized.
The 2-inch screen will offer you 720p video return at up to 120 frames per second. Drone control and image display is almost instantaneous thanks to a low latency of 28ms. The DJI FPV Goggles V2 come with a 1800mAh Li-ion 2S battery pack, which has a connection port and 4 LEDs that will indicate the charge level of the DJI FPV Goggles V2. It will be possible to power it with a LiPo battery of your choice up to 26V.
Compatible with :
- DJI FPV Controller
- DJI FPV Air Unit
DJI FPV Goggles V2 : features
- Weight: Approx. 415 g (headband and antennas included)
- Dimensions: 202 × 126 × 110 mm (antennas included) / 184 × 122 × 110 mm (antennas excluded)
- Screen Size: 2-inch × 2
- Screen Resolution (Single Screen): 1440 × 810
- Screen Renew Rate: 120 Hz
- Communication Frequency: 5.725-5.850 GHz
- Transmitter Power (EIRP) : FCC/MIC: <30 dBm; CE: <14 dBm; SRRC: <19 dBm
- Live View Mode : Low Latency Mode (720p/120fps) / High-Quality Mode (720p/60fps)
- Video Format: MP4 (Video format: H.264)
- Supported Video Play Format: MP4, MOV, MKV (Video format: H.264; Audio format: AAC-LC, AAC-HE, AC-3, MP3)
- Operating Temperature: 32° to 104° F (0° to 40° C)
- Power Input: 7.4-17.6 V
- FOV Adjustable from 30° to 54°. Adjustable image size from 50%-100%
- Interpupillary Distance Range: 58 -70 mm
- Battery: 6.6V-21.75V
- External battery, total power consumption of 7W
- Supported Storage Card: microSD cards with capacities of up to 128GB
- DJI FPV Goggles (including the foam padding) × 1
- Power cable × 1
- Antenna × 4
- Headband × 1
- USB-C cable × 1
- Bundle pocket × 1
