High Power Amp Kit By Kitronik

Electronic kit for stereo sound production
Kitronik

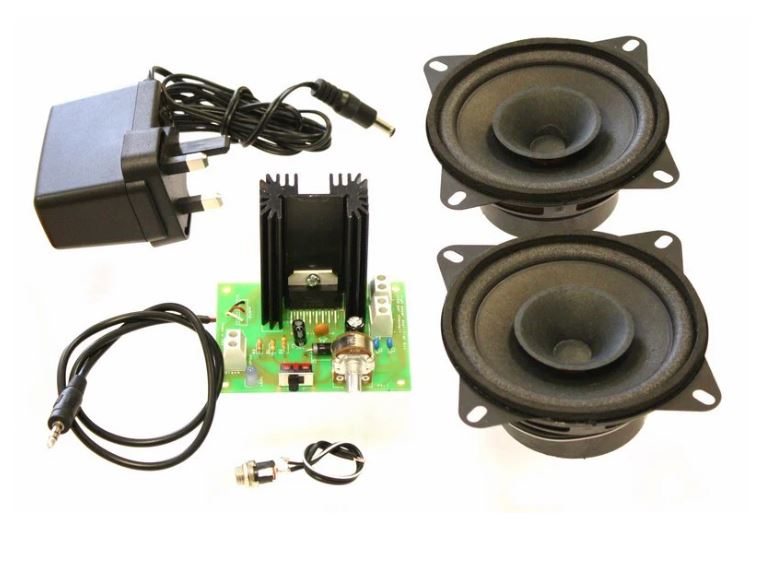

The Kitronik high power amplifier kit can deliver up to 15W per channel to a pair of excellent speakers (included). The kit can produce stereo sound that is both extremely loud and of excellent quality. The kit comes with everything needed to create your own amplifier for use with devices such as MP3 players, including the power supply.

The kit comes with a power LED, an on/off button and a volume control - everything you would expect from an amplifier. The only thing left to do is to create your own box. Contact us for an order of +20 pieces for your class.

> Read more
Order
Site Reference : RA_KTK020
Manufacturer Reference : 2143-JK

+ -
Available
Shipped within 2 to 8 Days
49,90 €

High Power Amp Kit, electronic sound kit by Kitronik

The Kitronik high power amplifier kit can deliver up to 15W per channel to a pair of excellent speakers (included). The kit can produce stereo sound that is both extremely loud and of excellent quality. The kit comes with everything needed to create your own amplifier for use with devices such as MP3 players, including the power supply.

The kit comes with a power LED, an on/off button and a volume control - everything you would expect from an amplifier. The only thing left to do is to create your own box. Contact us for an order of +20 pieces for your class.



CAUTION:

  • The heat sink becomes hot when the amplifier is used at high volume for long periods. For the heatsink to work at its best, it should be mounted in a well ventilated enclosure.
  • This product is supplied with a UK mains plug and is designed to operate on a 230V, 50Hz supply.
  • This kit requires the following tools and handling: Soldering iron, solder, wire cutters, wire strippers and screwdriver.
  • Product designed and manufactured in the UK - Instructions and documentation in English.

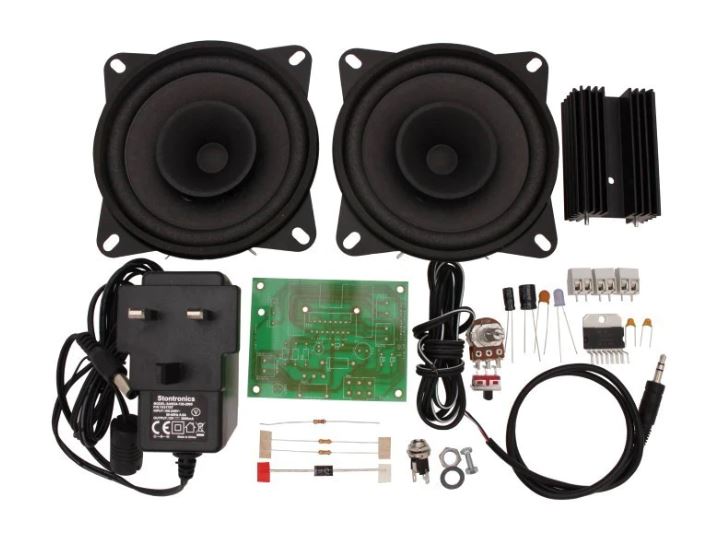

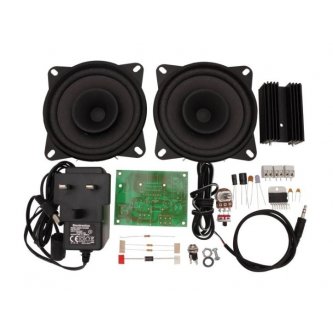

Contents of the Kitronik High Power Amp

  • 1 x TDA7297 15W+15W Dual Bridge Amplifier .
  • 2 x 20W 10cm Full Range Speaker.
  • 1 x 12V, 2A Wall Block Power Supply.
  • 1 x 6400BG Heatsink.
  • 1 x Pan Head M3 x10mm Machine Screw.
  • 1 x M3 Hex Full Width Nut, Zinc.
  • 1 x Dual Wipe Potentiometer, 10K.
  • 2 x 47K Resistor.
  • 1 x Blue 5mm Diffused LED - 500mCd.
  • 1 x 1K Resistor.
  • 1 x Electrolytic Capacitor, 16V, 470uF.
  • 1 x Ceramic Capacitor, 50V, 100nF.
  • 2 x Ceramic Capacitor, 50V, 220nF.
  • 1 x Electrolytic Capacitor, 16V, 10uF.
  • 1 x Miniature PCB SPDT High Current Slide Switch.
  • 1 x DC Power Socket, Panel Mounting, 2.1mm.
  • 3 x 2-Way Terminal Blocks.
  • 1 x 1N5400 Diode.
  • 1m Speaker Wire.
  • 1 High Power Amp PCB.
  • 1 x Stereo Amp Cable.
  • 1 x TDA7297 15W+15W Dual Bridge Amplifier .
  • 2 x 20W 10cm Full Range Speaker.
  • 1 x 12V, 2A Wall Block Power Supply.
  • 1 x 6400BG Heatsink.
  • 1 x Pan Head M3 x10mm Machine Screw.
  • 1 x M3 Hex Full Width Nut, Zinc.
  • 1 x Dual Wipe Potentiometer, 10K.
  • 2 x 47K Resistor.
  • 1 x Blue 5mm Diffused LED - 500mCd.
  • 1 x 1K Resistor.
  • 1 x Electrolytic Capacitor, 16V, 470uF.
  • 1 x Ceramic Capacitor, 50V, 100nF.
  • 2 x Ceramic Capacitor, 50V, 220nF.
  • 1 x Electrolytic Capacitor, 16V, 10uF.
  • 1 x Miniature PCB SPDT High Current Slide Switch.
  • 1 x DC Power Socket, Panel Mounting, 2.1mm.
  • 3 x 2-Way Terminal Blocks.
  • 1 x 1N5400 Diode.
  • 1m Speaker Wire.
  • 1 High Power Amp PCB.
  • 1 x Stereo Amp Cable.
