Kitronik :MOVE mini MK2 buggy for Micro:bit

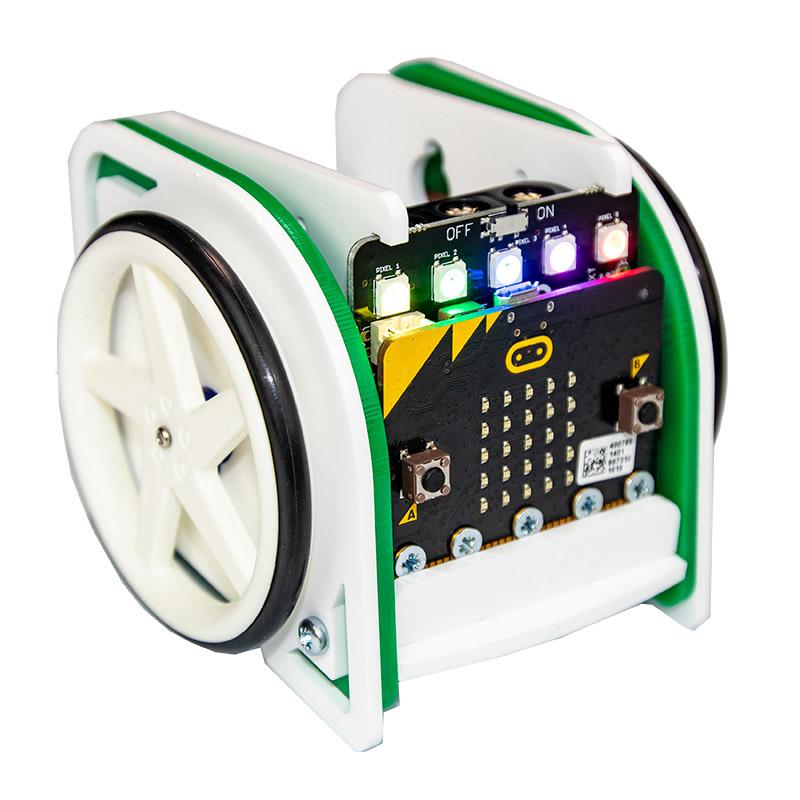

The buggy kit MK 2 Kitronik: MOVE mini for BBC micro:bit is the latest version of the kit : MOVE. This mini two-wheeled robot offers a fun introduction to robotics. It is suitable for stand-alone operation, remote control projects with Bluetooth application and can be controlled using a second BBC microbit as controller via the microbit radio functionality.
Requires assembly / Made in UK. Kit to be associated with a micro:bit BBC card sold separately.
Kitronik :MOVE mini MK2 buggy - Robot for BBC Micro:bit
The Kitronik:MOVE mini is powered by two continuously rotating servomotors. The speed of these servos can be controlled by simply changing the PWM (Pulse Width Modulation) signal to the servo, which is easy to do using the Servo Blocks in the Microsoft PXT block editor. We have also produced Kitronik custom blocks for the Servo: Lite to make the coding task as quick and painless as possible, see the resources section at the bottom of this page for more information.
The buggy also has 5 x individually addressable RGB ZIP LEDs (NeoPixel compatible), which can be used as turn signals, reversing lights etc... It is possible to add a pen or other additional parts to the kit to increase the range of tasks for which it can be used.
- The kit offers a fun introduction to the world of DIY robotics.
- Program the robot for autonomous operation.
- Use it with the free Android micro:bit application and control it via Bluetooth.
- Use the radio function and a second microbit as a controller.
- Attach a pen and code the robot to draw shapes.
- The buggy has improved injection-molded wheels with rubber ring tires.
- Attention: BBC Micro:bit card not included in the basic package. Can be purchased separately HERE.
- Made in UK.
Kitronik :MOVE mini MK2 buggy - Resources
Coding and User Guides :
- Kitronik Custom MakeCode Editor Servo Block Guide
- Getting to grips with the Servo card: Lite
- Guide to controlling 3 servos with the Servo card: Lite
- User's Guide for Kitronik ZIP LEDs with BBC microbit
- Control guide: MOVE mini with microbit radio
- Guide to add a Bluetooth remote control to: MOVE mini
- Guide for drawing with the: MOVE mini for microbit
- Automatic headlight coding guide for: MOVE mini
- Guide to coding indicators for: MOVE mini
- Build a stadium and use the custom code to play!

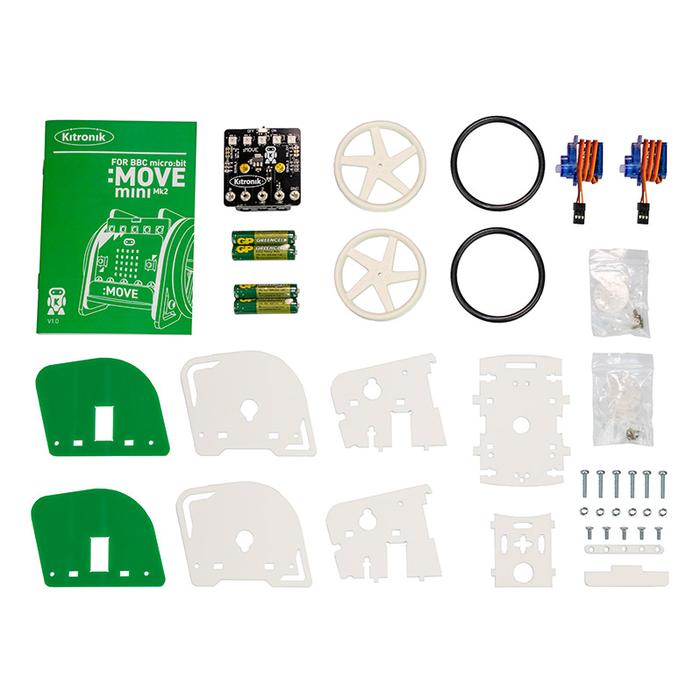

- 1 x Set of chassis parts.
- 2 x Micro 360 degree continuous rotation Servos with accessories.
- 1 x Servo:Lite board.
- 2 x Counter sunk M3 6mm screw.
- 5 x Counter sunk M3 8mm screw.
- 6 x M2 Rec Pan Steel screw.
- 6 x M2 Hex Full Width Nut.
- 3 x AAA Batteries.
- 1 x Pair of ABS White Wheels.
Packs available to choose on this product sheet:
