Monk Makes - Plant Monitor Board BBC

Monk Makes BBC micro:bit V1 and V2 Plant Monitoring Board

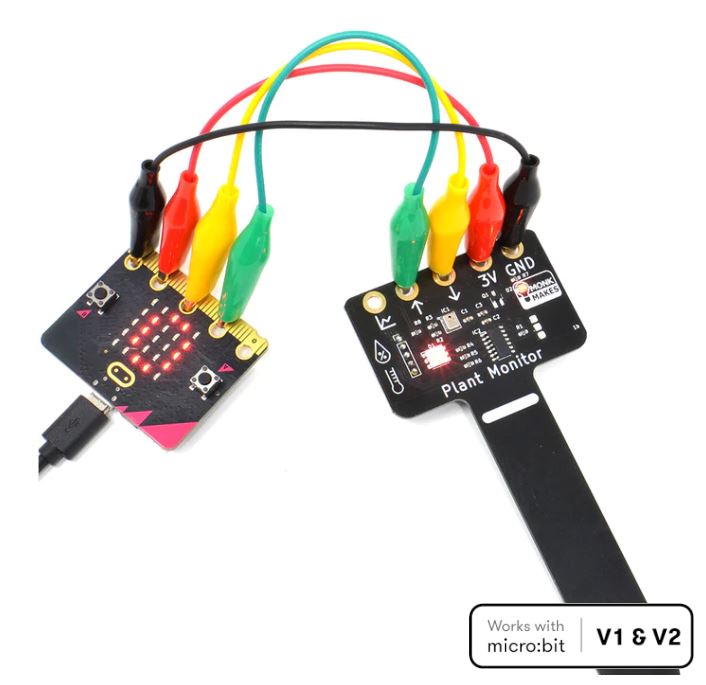

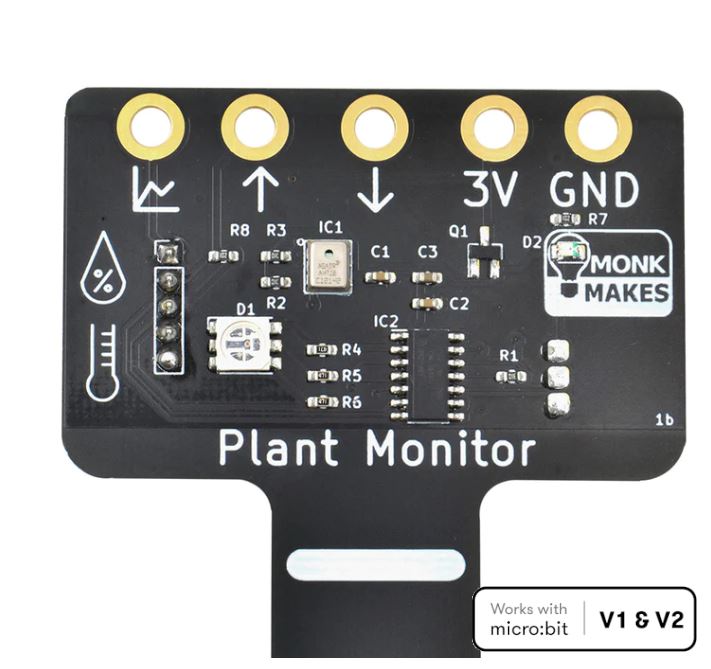

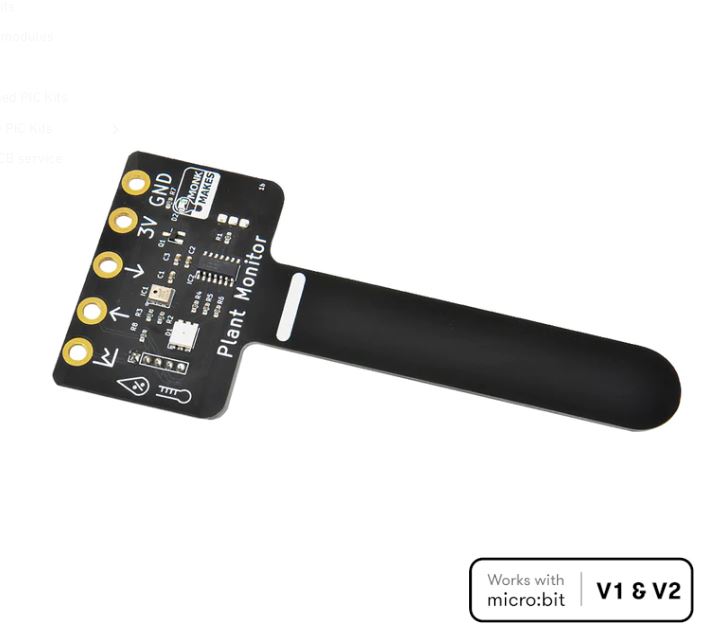

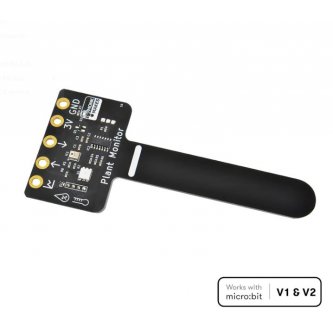

The MonkMakes Plant Monitor Board is a capacitive humidity sensor/counter with integrated temperature and relative humidity measurement. It is compatible with the micro:bit, Raspberry Pi, Arduino, Pico and most other microcontroller boards. The board includes alligator clip rings for use with the BBC micro:bit and Adafruit Clue, as well as pre-soldered header pins for Arduino and other microcontroller boards.

In addition, it has an easy-to-use UART serial interface, an additional analogue output for humidity only and a built-in RGB LED.

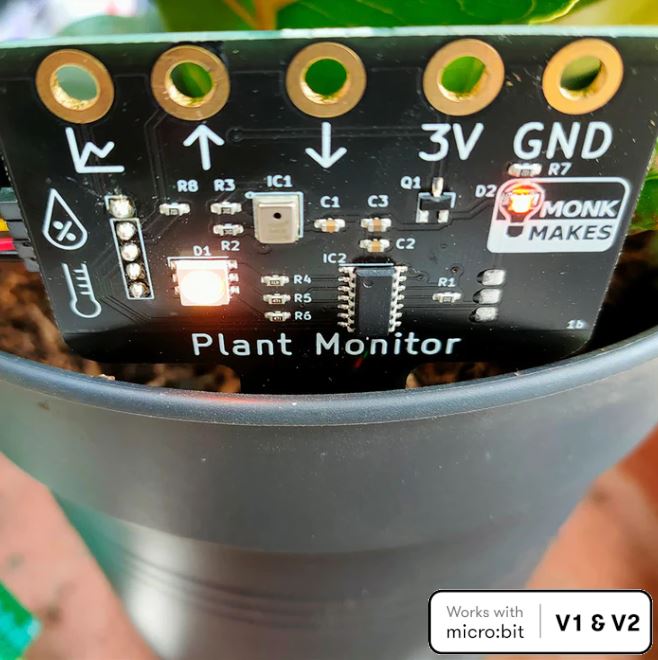

Use : The front of the tip should be as close to the edge of the planter as possible, with the electronics facing away from the planter and the tip driven into the soil only to the white line. Once switched on, the plant monitoring panel will immediately display the humidity via the built-in LED. Red means dry and green means wet.

Coding : The microcontroller you choose to use with the MonkMakes plant monitor will determine the coding language you use. Detailed guides are available for download which cover the following languages: BBC micro:bit (Makecode), Raspberry Pi 4 (Python), Raspberry Pi Pico (MicroPython) and Arduino (Arduino C - SoftSerial).

• Top capacitive sensor (no electrical contact with the ground)
• Alligator/alligator clip rings (for use with BBC micro:bit and Adafruit Clue.

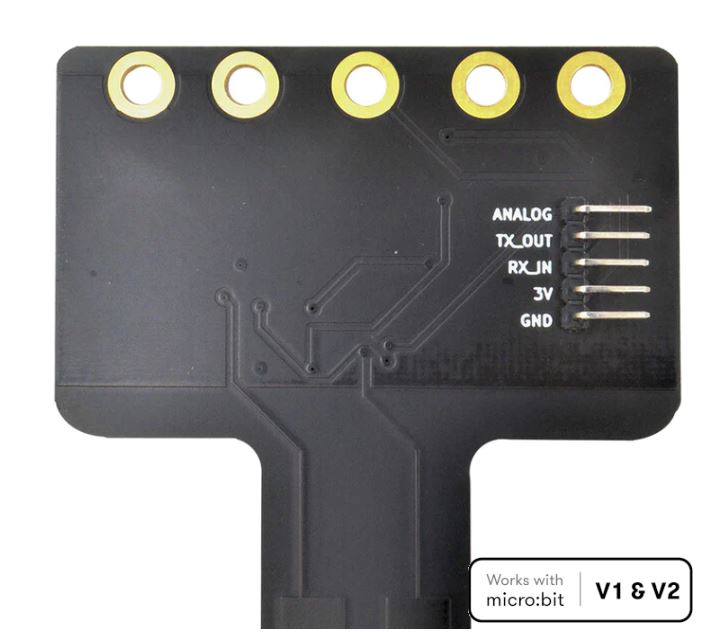

• Ready to use soldered header pins for Arduino and other microcontroller boards.
• Easy to use UART serial interface.
• Additional analogue output for humidity only.
• Integrated RGB LED
• Detailed guides are available for download covering all aspects of using the board, including coding.
• There are instructions for using this board with BBC micro:bit (Makecode) / Raspberry Pi 4 (Python) / Raspberry Pi Pico (MicroPython) / Arduino (Arduino C - SoftSerial).

Monk Makes BBC micro:bit: further information

Caution:

• Do not connect this board to the 5V pin of the Raspberry Pi. The board is designed to operate at 3.3V and a 5V supply is likely to destroy it.
• As the Raspberry Pi has no analogue inputs, the only interface option is to use the UART serial interface. This interface must be enabled on the Raspberry Pi from the Raspberry Pi configuration tool found in the Preferences section of the Start menu.

Contents :

• 1 x Monk Makes - Plant monitoring board.

Requires a suitable microcontroller, such as ;

• The BBC micro:bit.
• A Raspberry Pi 4.
• The Raspberry Pi Pico.
• An Arduino.
