BBC micro:bit prototyping system by Kitronik

This BBC micro:bit prototyping system is an excellent way to start building circuits and conducting experiments without having to solder. This prototyping solution uses an on-board connector expansion board specifically designed for the BBC micro:bit, which provides full access to the BBC micro:bit pins on the bottom. The BBC micro:bit pins are divided into a row of pin heads, and the SCL and SDA pins are separated on the edge of the board for easy identification. The BBC micro:bit pins are divided into a row of pin heads, and the SCL and SDA pins are separated at the edge of the board for easy identification.

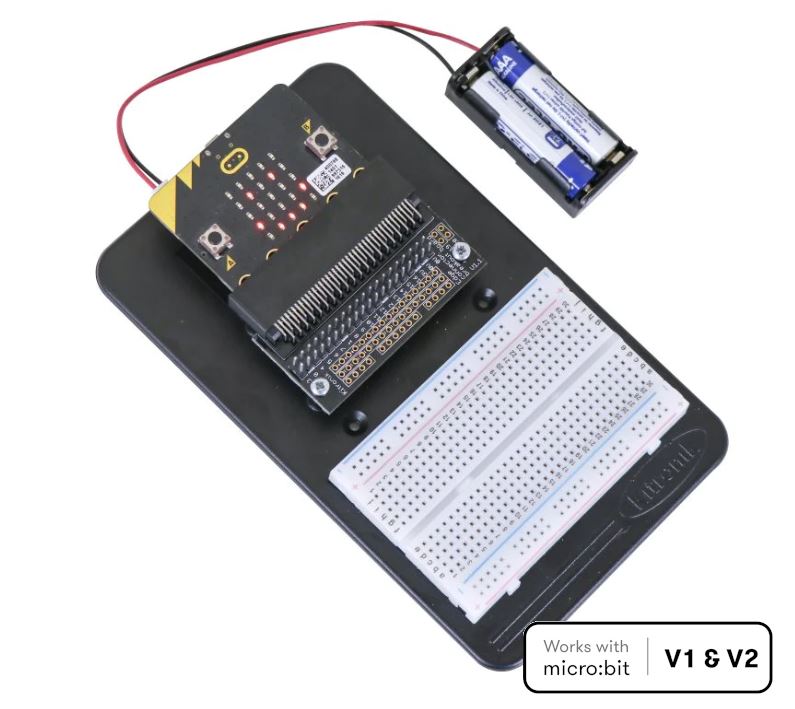

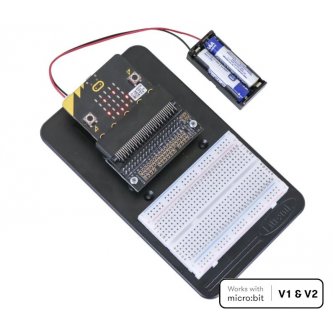

• This prototype device is combined with a small prototype breadboard. This allows additional components to be easily connected using the supplied jumper wires.
• No soldering is required.
• BBC micro:bit, 2 x AAA Battery Cage and 2 x AAA Batteries are not included
• Requires a screwdriver

• There is no need to solder.
• The pre-built BBC micro:bit edge connector bypass board extracts 21 pins from the BBC micro:bit.
• A small prototype breadbord is available for use with additional components.
• Use your BBC micro:bit to run custom code that interacts with external components.

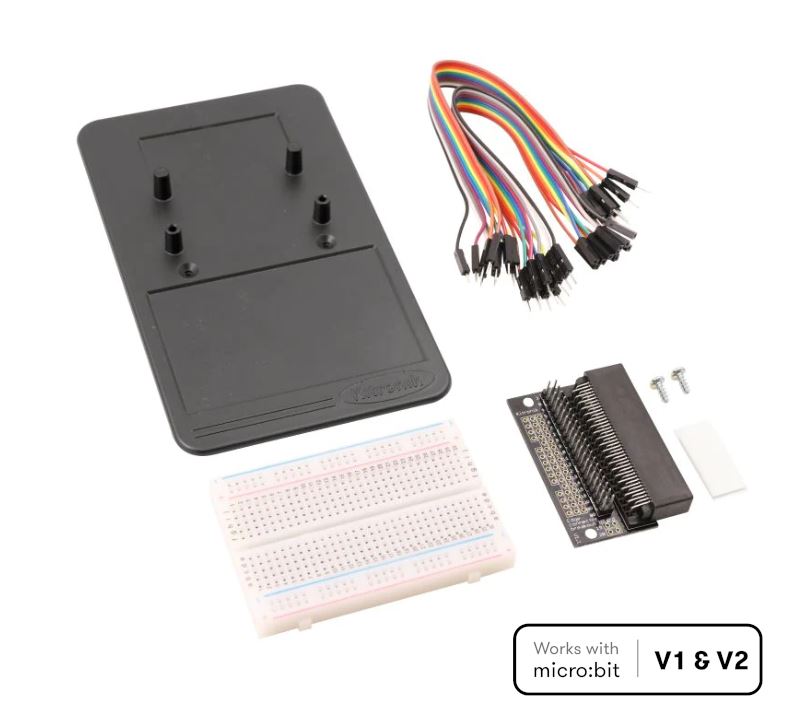

Contents of the BBC Micro:Bit kit

• 4 x M3 cheese head screws.
• 1 x Small prototyping breadbord.
• 10 x Male to male connecting wires.
• 10 x Male to female connecting wires.
• 1 x Mounting plate.
• 1 x Breakout Board connector for BBC micro:bit - Pre-built.
