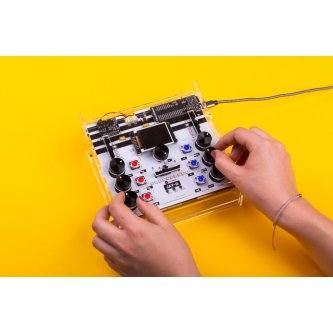

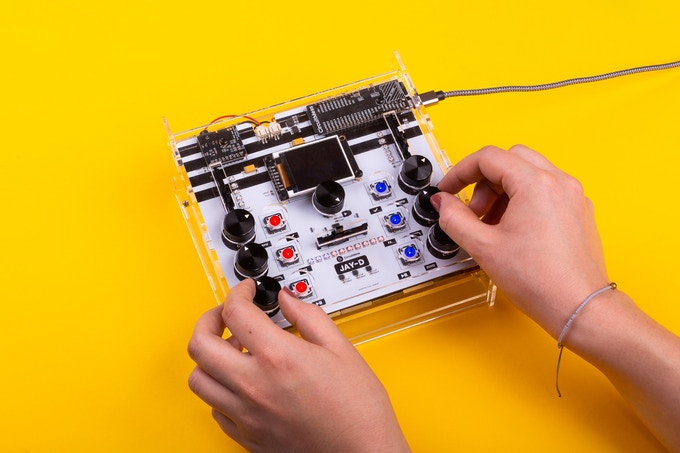

STEM Box Circuitmess : Jay-D

Build & code your own DJ mixtable
CircuitMess

With Jay-D, you'll learn how microcomputers and other electronic components are used for sound production and get one step closer to your goal of becoming a DJ superstar. The mini mixer has almost all the basic functions of a professional: two simultaneous playback slots, BPM control, various equalizers and sound effects, a display that lets you list your song library and put them in the queue, and more.

The STEM Box N°2 from CircuitMess provides you with all the equipment and instructions you need to create your own DJ mixer from A to Z.

> Read more
Order
Site Reference : RA_MKR006
Manufacturer Reference :

+ -
Available
Shipped within 48h
119,99 € 93,99 €

STEM Box 2 by CircuitMess: Jay-D the DJ mixing desk

STEM Box Circuimess table de mixage DJ



With Jay-D, you'll learn how microcomputers and other electronic components are used for sound production and get one step closer to your goal of becoming a DJ superstar. The mini mixer by CircuitMess has almost all the basic functions of a professional: two simultaneous playback slots, BPM control, various equalizers and sound effects, a display that lets you list your song library and put them in the queue, and more.

The Mini Mixer has almost all the basic functions of a professional mixer, such as

  • Two simultaneous playback slots
  • BPM Control
  • Various equalizers and sound effects (currently, CircuitMess has implemented a low-pass filter and an echo effect)
  • A display that allows you to list your song library and put them in the queue
  • A class D amplifier, and two 3W speakers set up for DeeJaying on the go!

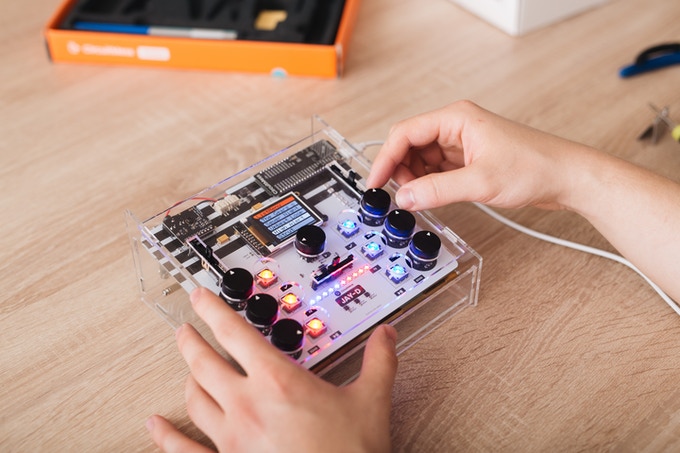

  • 20 RGB LEDs on board - for bling-bling, of course!

What you can do with this STEM Box N°2 :

  • Simultaneous playback of several music files, crossfade between them, control the BPM of the songs played (act as if you were a DJ)
  • Pursue a career in the world of EDM music (Tip: start by opening a SoundCloud account)
  • Add different equalizers to the songs being played
  • Load new songs on the included SD card so you don't have to improvise with the included royalty-free music
  • Designing a custom light show for onboard RGB LEDs
  • Encode new applications and functions for the implemented microcontroller and use the implemented Wi-Fi and Bluetooth interface



Circuitmess STEM Box mixing desk component



What you're about to learn:

  • What is needed to produce digital sound?
  • What are sound waves and how can they be produced using computers and various electronic components?
  • What is a DAC and how to control it for simultaneous playback of multiple sound files
  • How a DJ mixer works
  • How to code custom light shows for your Jay-D mixer
  • How to encode a custom sound effect into your Jay-D turntable

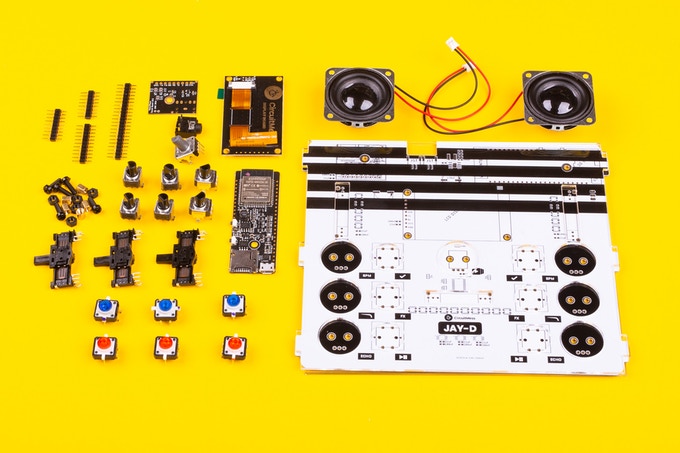

  • Main circuit board – connects all the chips together
  • Display board – 128*160 TFT color display

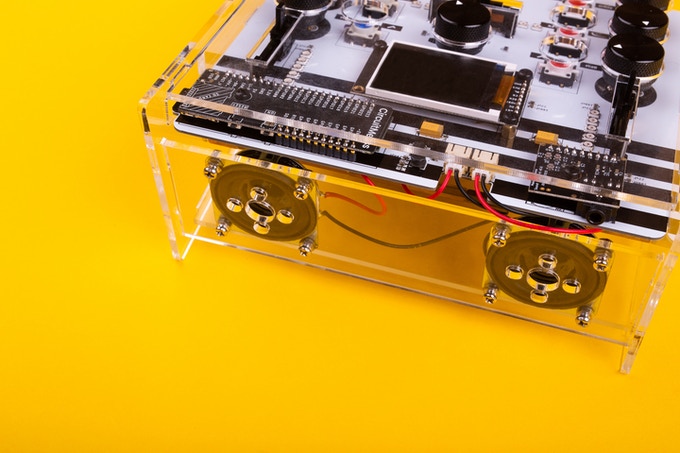

  • Acrylic casing
  • A bag of other small components such as resistors, pushbuttons, nuts and bolts
  • Two 5W speakers
  • The Brain board – has a dual-core processor and a power-management IC
  • 4GB Micro SD card with a bunch of royalty-free beats preloaded
  • A Sound board – has a 32-bit DAC and a class-D amplifier built-in
  • An instruction booklet – ready for your offline knowledge consumption
