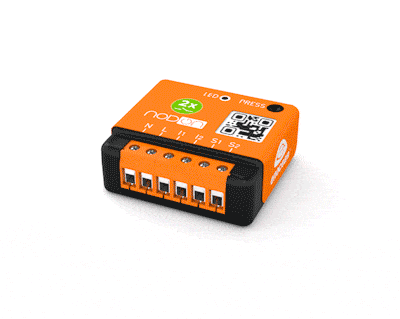

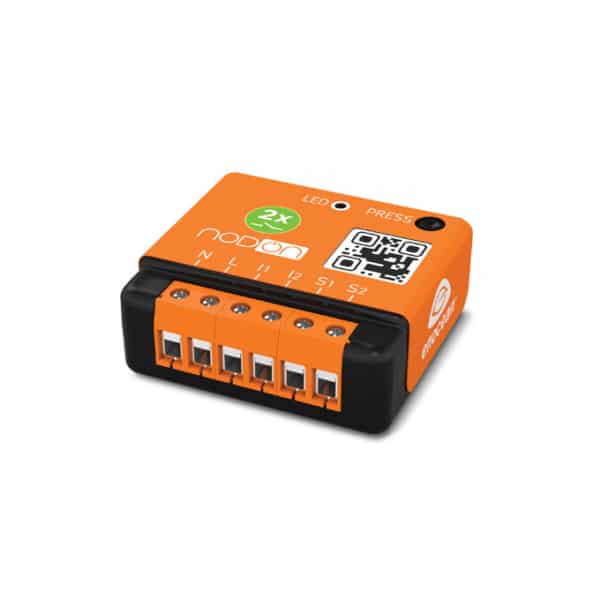

EnOcean Relay Switch 2 channels

2 channel relay switch : make your home connected

NodOn's EnOcean 2-channel flush-mounted module transforms your home into a connected home in no time. Ultra compact and easy to use, it hides behind a wall, ceiling or electrical outlet to transform a classic installation such as lighting into a connected installation.

• High switching capacity of more than 1000W / Channel: you can switch almost all your electrical appliances on and off, especially your lighting system
• Ultra compact, this high-performance 2-channel flush-mounted module is less than 17mm thick
• Wired switch input: thanks to its two wireless analog inputs, this EnOcean flush-mounted module can transform any wired switch into an EnOcean switch, creating a back-and-forth without installation
• Remote activation: this module compatible with the global EnOcean protocol can be installed without any physical intervention from an installer

With this EnOcean NodOn relay switch, you can:

• Make your lighting connected and remotely controllable
• Turn on or off your electrical devices remotely directly from a conventional wall switch
• Easily and effortlessly retrofit your lighting installation in a bedroom or room in your home, add wall switches or a battery-free and wireless remote control
• Create a comeback without breaking through my walls

Features of the NodOn EnOcean 2 channel relay switch

• Power supply: 230V AC +/-10% - 50Hz
• Maximum power: 2*1.1kW (resistive load)
• Intrinsic consumption: <1W
• Operating temperature: 0°C to 40°C
• Radio Protocol: EnOcean® EEP : D2-01-12
• 868.3MHz Bidirectional
• Range: 30m
• 2 analog inputs for existing wired switch(s)
• Dimensions: 40*45*16,9mm

Features of the 2 channel relay switch NodOn

Europe

• IN60669-1:1999+A1:02+A2:08
• IN60669-2-1-1:2004+A1:09+A12:10
• EN300220-2 V3.1.1.1
• EN301489-01 V2.1.1.1
• IN301489-03 V2.1.1.1
• EN62479:2010
