Mai-Z The MouseBot For BBC micro bit Kitronik

Kitronik Mai-Z the MouseBot for BBC micro:bit – Programmable educational robot

The Kitronik Mai-Z the MouseBot is a programmable educational robot designed to introduce children aged 8 to 14 to coding and robotics in a practical, fun and progressive way. Compatible with the BBC micro:bit, it allows children to learn programming by controlling a real mobile robot capable of moving around, detecting its environment and following precise paths.

Micro:bit educational robot, code learning, programmable robot, STEM, MakeCode, educational robot for ages 8 and up.

• Programmable robot specially designed for the BBC micro:bit
• Learn coding via MakeCode (blocks, JavaScript or Python)
• Compatible with screen-free programming
• Works with MakeCode CreateAI for gesture control
• Precise movement thanks to motors with encoders
• Ideal for schools, STEM clubs and home learning
• Educational approach aligned with UK and US curricula

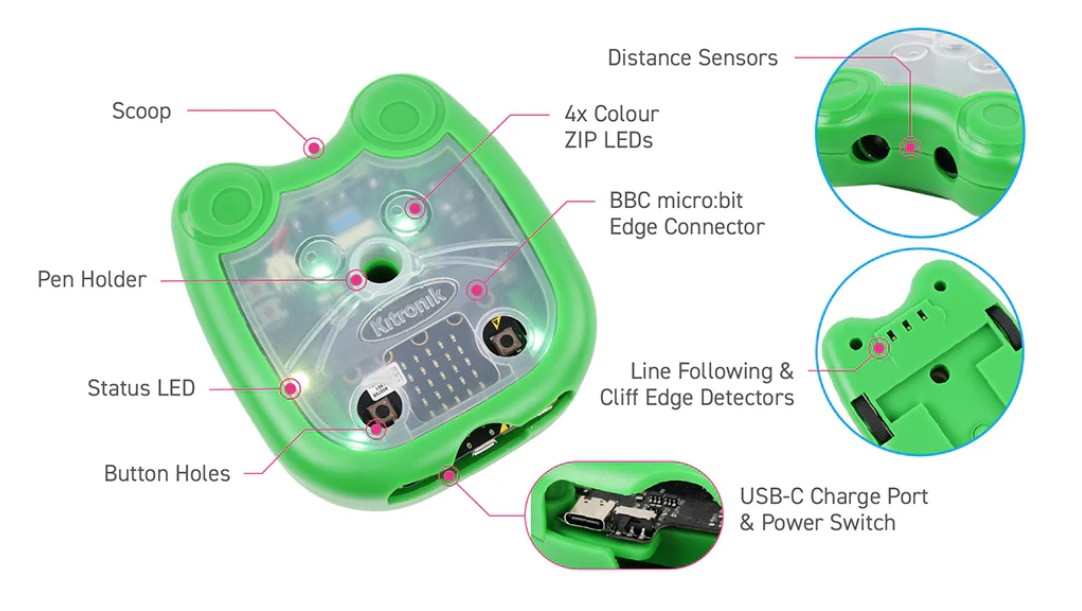

A robot packed with sensors and features

• Line tracking, gap and obstacle detection
• Ultrasonic distance sensor
• Multifunction infrared sensors
• 4 programmable RGB LEDs (ZIP LEDs)
• Built-in speaker for sound and audio feedback
• Pen holder for drawing shapes and trajectories
• Front bucket for fun challenges and competitions

Advanced movement precision

Unlike many educational robots, Mai-Z is designed to move with great precision. Motor encoders constantly adjust trajectory and speed, enabling straight movements, precise angles and controlled distances. This precision facilitates line tracking, obstacle avoidance and advanced programming projects.

Power supply and battery life

• Built-in 1000 mAh rechargeable lithium battery
• Recharges via standard USB-C port
• Can be used while charging
• Typical battery life of over 6 hours depending on usage
• Charging time: approximately 1 hour

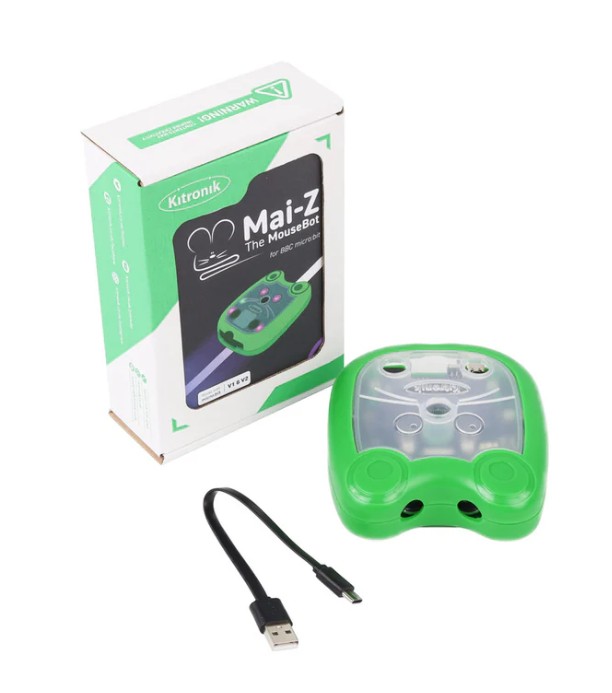

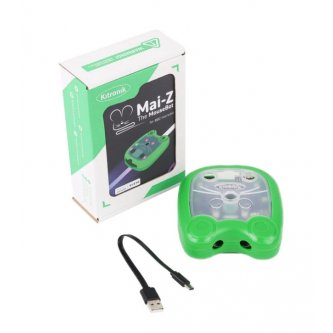

Box contents

• 1 Kitronik Mai-Z the MouseBot robot for BBC micro:bit
• 1 USB-A to USB-C charging cable (20 cm)
• 1 double-sided A6 sheet:
  • Complete instructions
  • Line tracking track

Kitronik Mai-Z technical specifications

• Brand: Kitronik
• Type: programmable educational robot
• Compatibility: BBC micro:bit V1 and V2 (not included)
• Embedded processor: RP2040
• Sensors:
  • 1 ultrasonic distance sensor
  • 3 multifunction infrared sensors
  • 2 motor encoders
  • Battery level monitor
• Motors: N20 with encoders

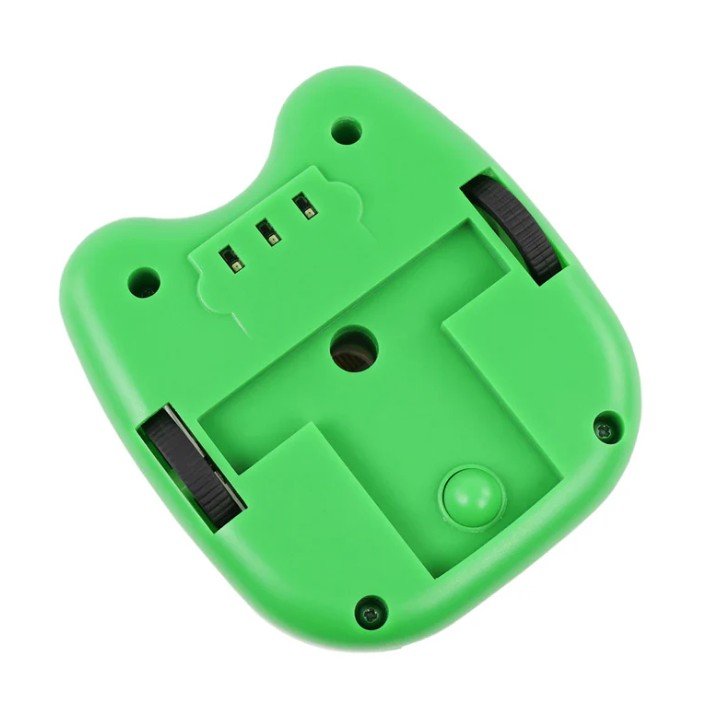

• Wheels: 33 mm diameter with rubber tyres
• LEDs: 4 programmable RGB LEDs + system status LEDs
• Audio: built-in electromagnetic speaker
• Battery: rechargeable 1000 mAh lithium battery

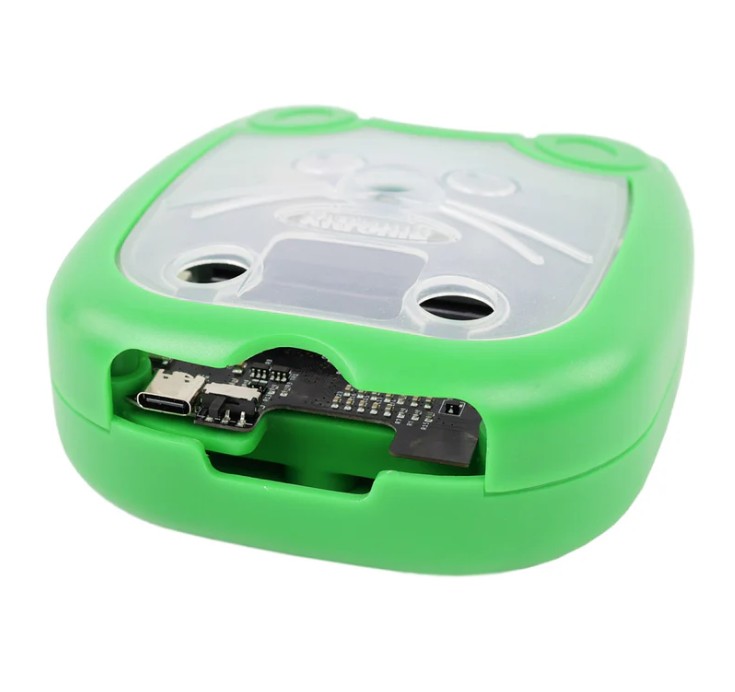

• Charging port: USB-C
• Built-in on/off switch

Dimensions

• Length: 117 mm
• Width: 105 mm
• Height: 45 mm

Requirements

• 1 BBC micro:bit (sold separately)
• 1 USB-C charger, minimum 5 V / 1 A

The Kitronik Mai-Z the MouseBot is a complete and scalable solution for discovering robotics, coding and artificial intelligence in a progressive, precise and engaging way.
