Tetrix Prime Programmable Robotics Set 44321

Programmable Robot
Tetrix by Pitsco

Are you passionate about programming, robotics or would you like to set up a complete educational program for your school? Then the TETRIX PRIME set is probably the one for you. A complete set that will allow you in class and at home, to start building your own programmable robots with a TETRIX PULSE controller.

Are you looking for a specific TETRIX kit or part? Contact us by email at or by phone at 0437479145.

> Read more

TETRIX PRIME, Programmable Robotics set

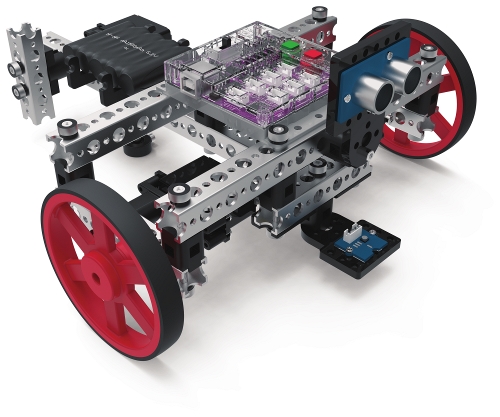

TETRIX PRIME is a complete robotics programming set for schools or individuals. It allows you to create programmable robots using a TETRIX PULSE Robotics controller, aluminum or plastic parts or electronic components such as connectors and motors. Pieces to be assembled together to create robots for educational purposes. You can then program them to perform the challenges offered by Pitsco.




Teachers have a very important role and must create student interest in their own education. The TETRIX Programmable Robotics sets allows students to learn STEM through robotics practice. Integrating this robotics kit into educational programs will allow students to learn science, technology, engineering and mathematics in a fun and entertaining way.

The programming system to use for the created robots is very simple to use and imaged for a better handling. TETRIX offers a large number of resources to download or consult to help teachers to integrate TETRIX into the educational program: TETRIX software, start-up guides, library, programming guides...


Challenges and resources TETRIX PRIME

Consult and download below the many TERIX resources that will help you to integrate TETRIX educational sets to learn STEM:

TETRIX PRIME resources to consult


TETRIX PRIME resources to download


The TETRIX PULSE controller


Tetrix pulse robotic controler


TETRIX PULSE is a programmable robotics controller specially developed for the TETRIX PRIME system, powerful and easy to use. Combined with Arduino Software (IDE) and TETRIX Ardublockly software, it is an ideal learning tool for teaching graphics or syntax.

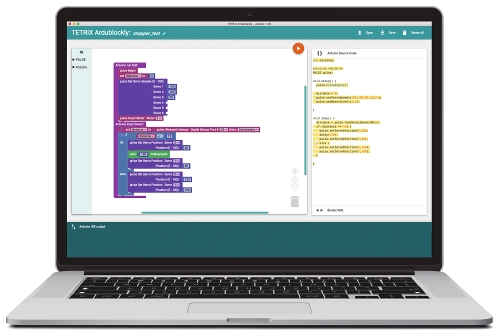

TETRIX Ardublockly is a graphical block coding software used to program the PULSE controller. In addition, the PULSE controller can be programmed with a syntax-based coding method using Arduino software (IDE) and the PULSE Arduino library.

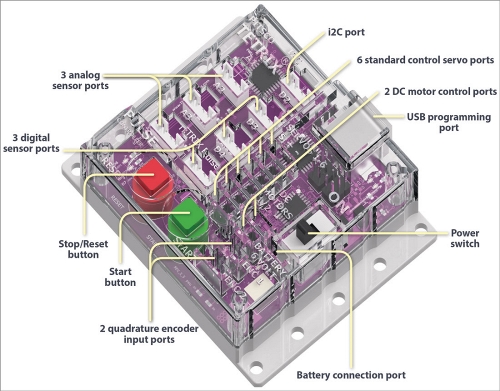

The TETRIX PULSE Robotics controller has the following features:

  • 2 DC motor control ports and 6 standard control servo ports
  • 3 digital sensor ports can be configured as digital input, digital output or serial communication and 3 analog sensor ports (A1 to A3 can be configured as analog input or digital input or output).
  • 1 I2C port, 1 USB programming port and 2 quadrature encoder input ports
  • 1 battery connection port
  • 1 on/off switch
  • 1 programmable start push button and 1 stop / reset button
  • 3 LED indicators: red, green and yellow

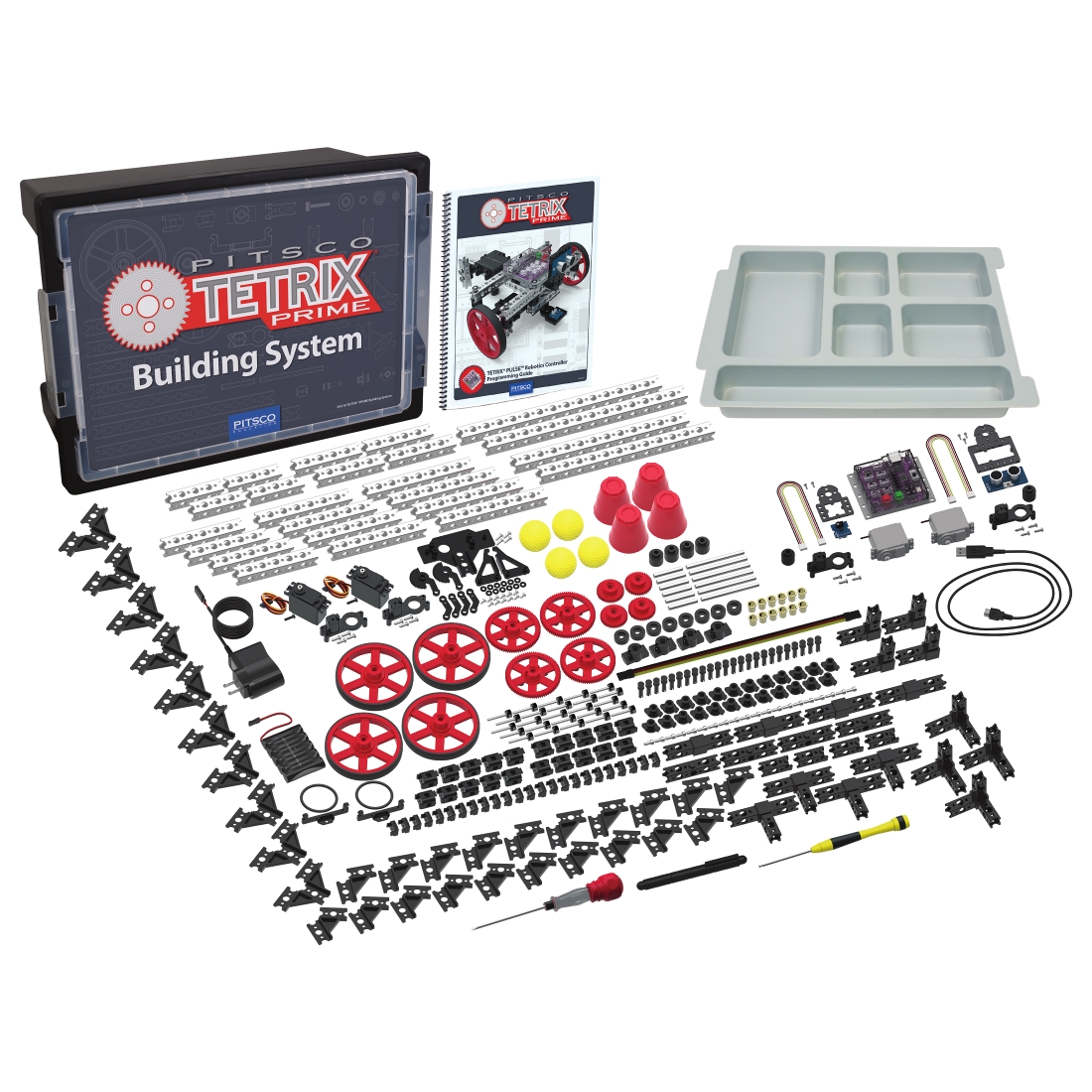

The different TETRIX PULSE resources

  • TETRIX PULSE Robotics Controller with USB cable
  • Grove Line Finder and Ultrasonic Sensors
  • 290+ TETRIX PRIME aluminum and plastic pieces including structural elements, connectors, hubs, brackets, wheels, and gears plus a gripper kit
  • Rechargeable battery pack and charger
  • 2 standard servos and 2 six-volt DC motors
  • 4-in-1 screwdriver, 2-in-1 screwdriver, and hex nut driver
  • Sturdy storage bin
  • Balls and cups for robot course
  • Detailed and graphic programming guide
