Jaws Pack Niryo NED

Jaws pack for the new Niryo NED robot
Niryo

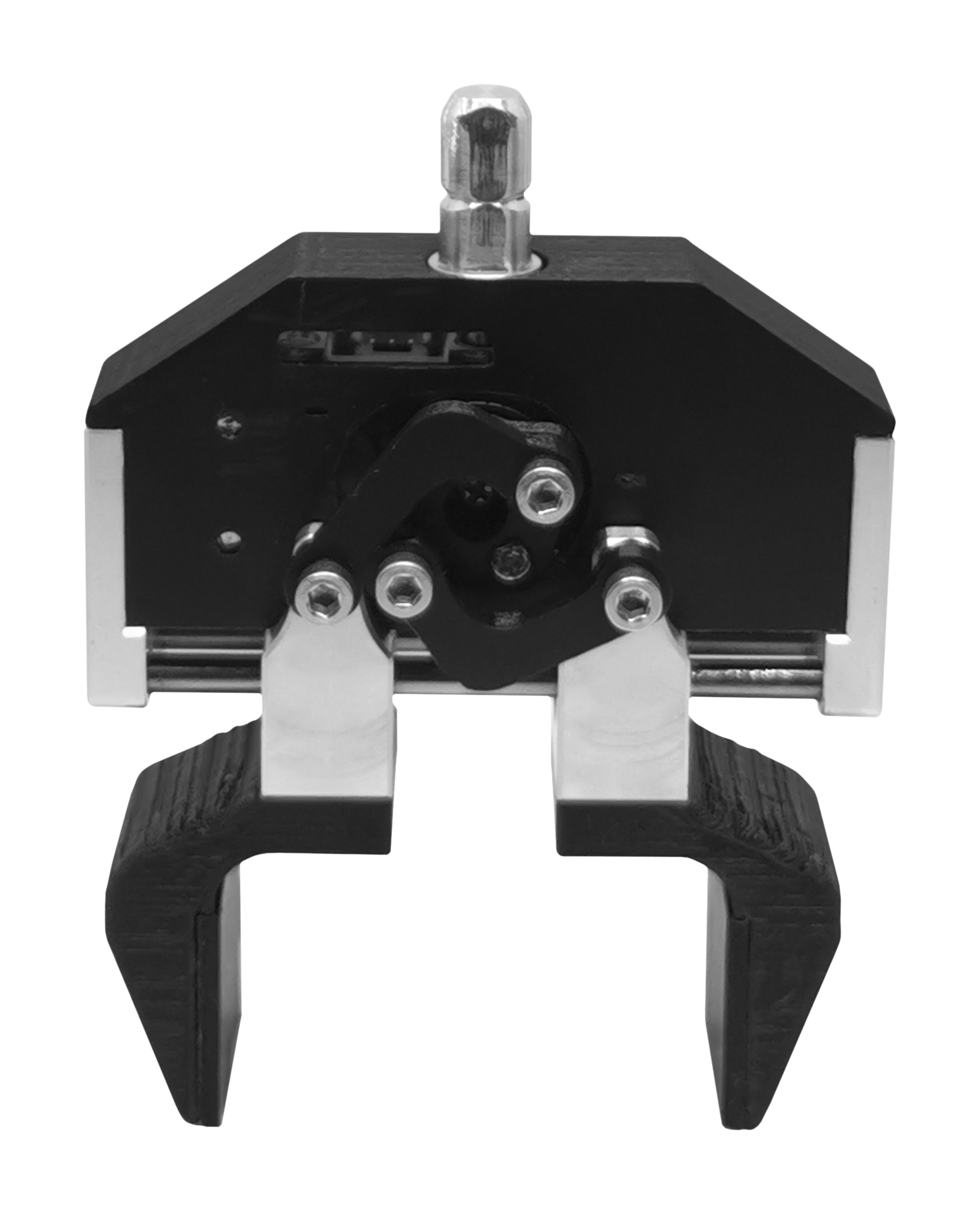

With this jaws pack, Niryo Ned robot gets new capabilities. Ned has a Custom Gripper with which you can interchange the jaws. You can change the jaws in seconds, and the robot can handle new objects that were previously impossible to grasp with standard jaws.

> Read more
Order
Site Reference : RA_NIR015
Manufacturer Reference :

+ -
Available
Shipped within 2 to 8 Days
106,80 €

Jaws Pack Niryo NED

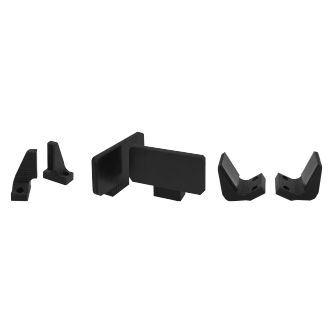

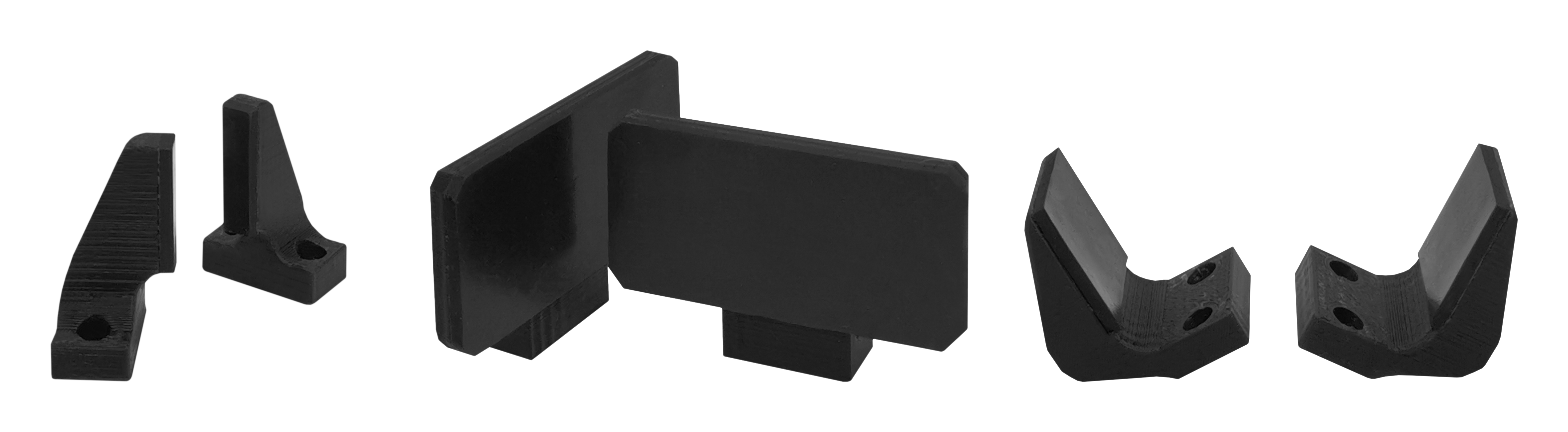

This set of jaws contains:

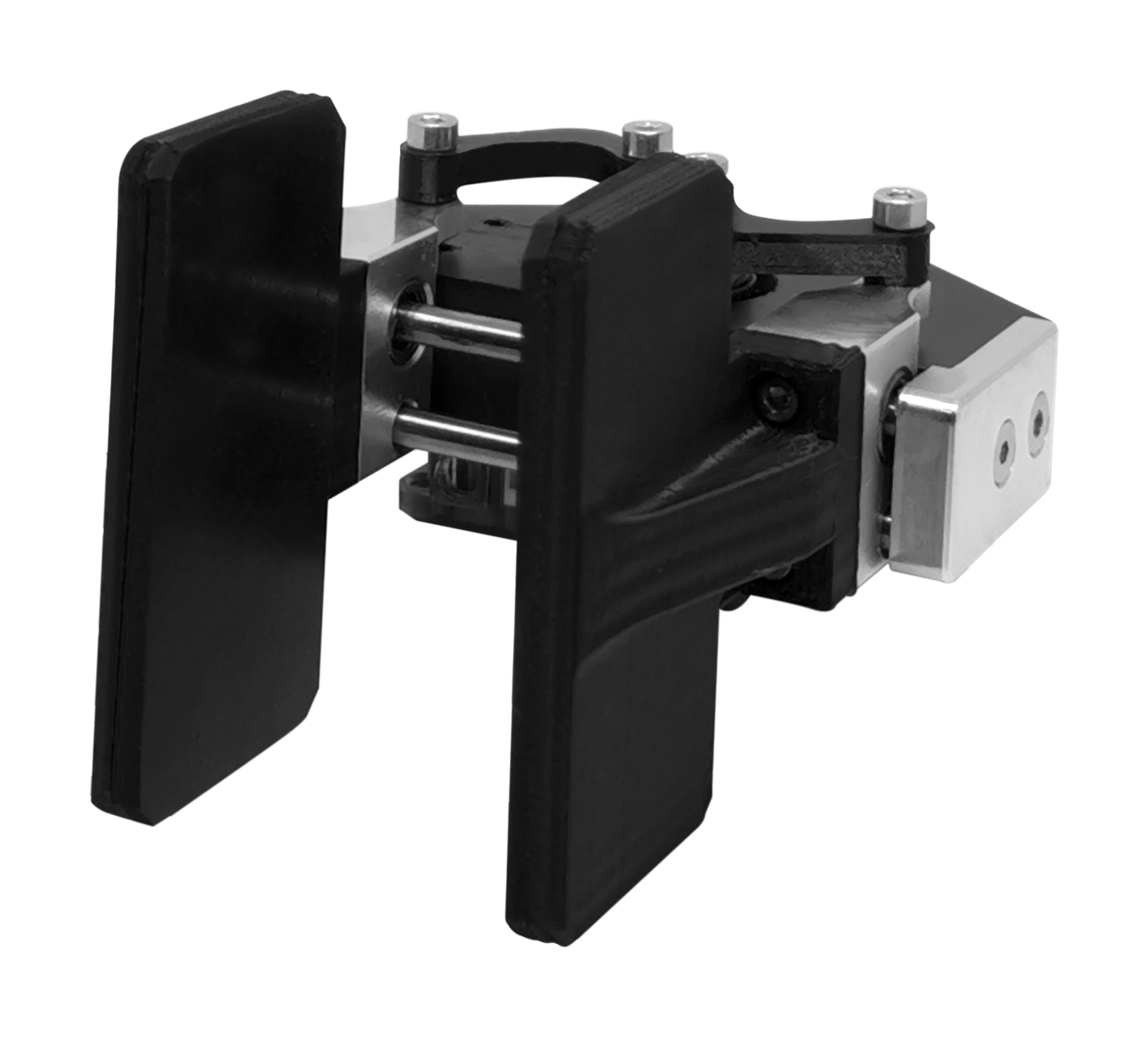

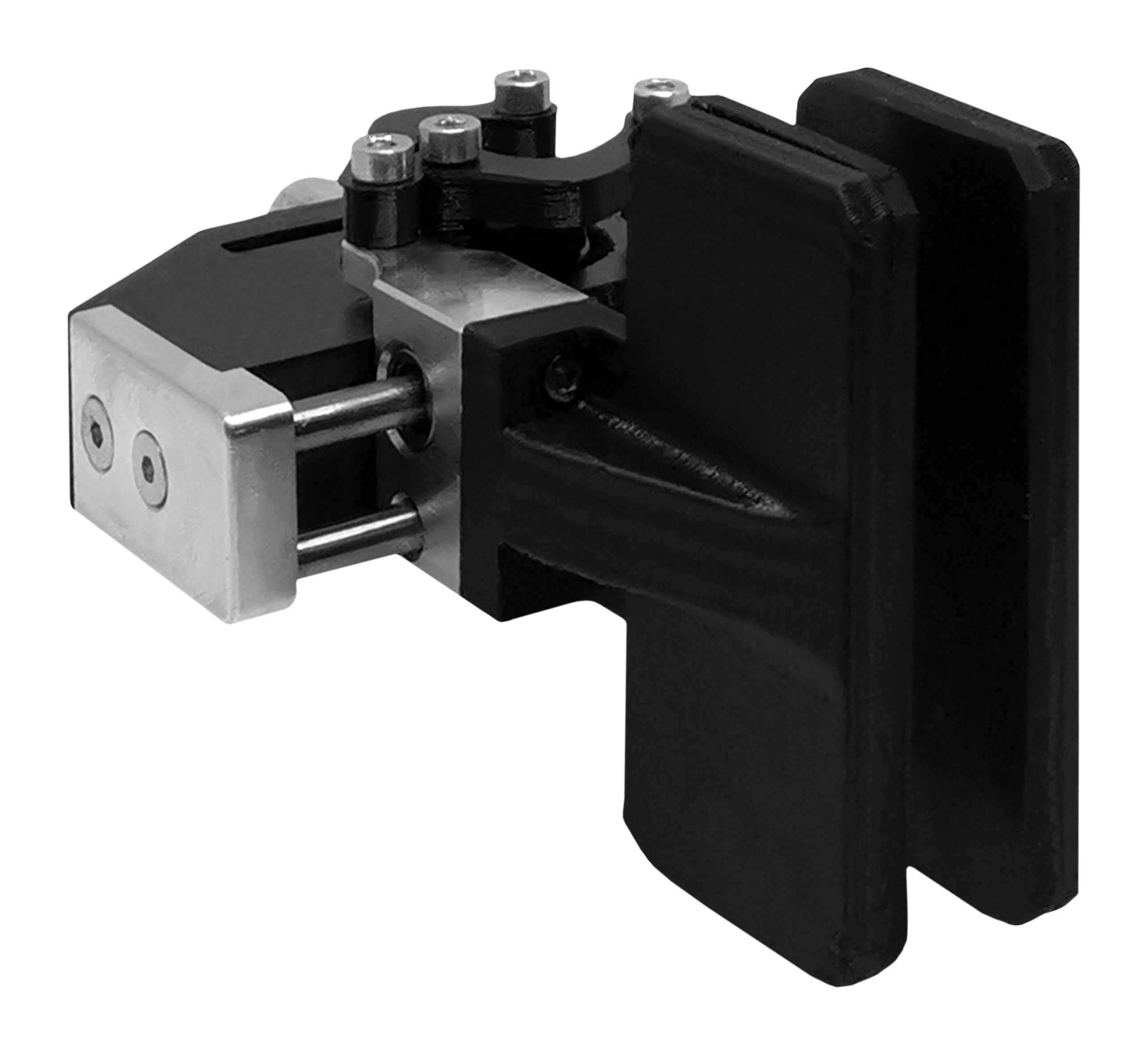

  • Flat Jaws : Thanks to the flat jaws, Ned is able to grasp less solid objects such as foam balls.

Weight 123g / Power supply 7.6V / Max operating width 35.92 mm / Picking distance from end effector base 90 mm / Motor XL-320 Servo Motor / Operating temperature 5-45°C

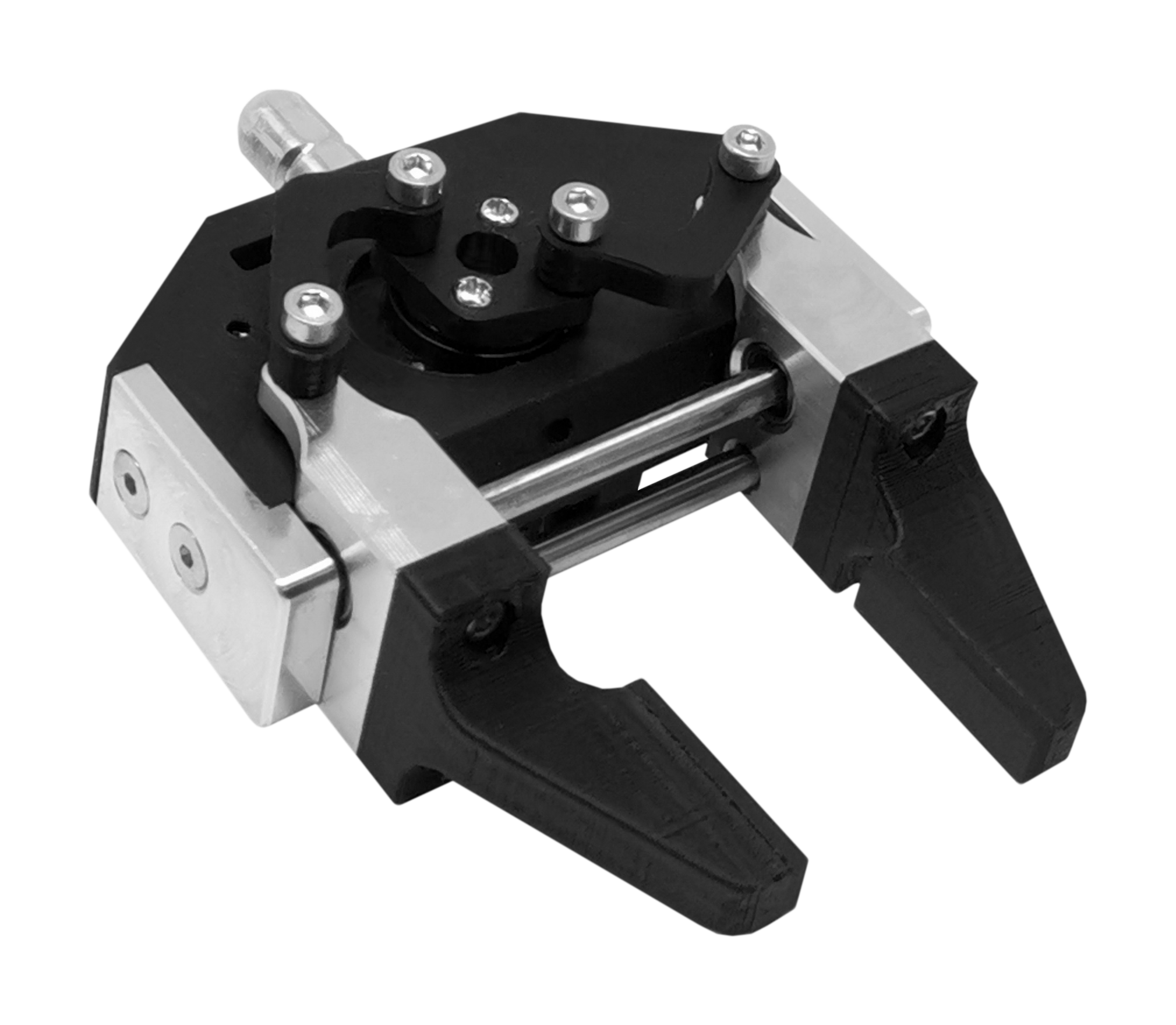

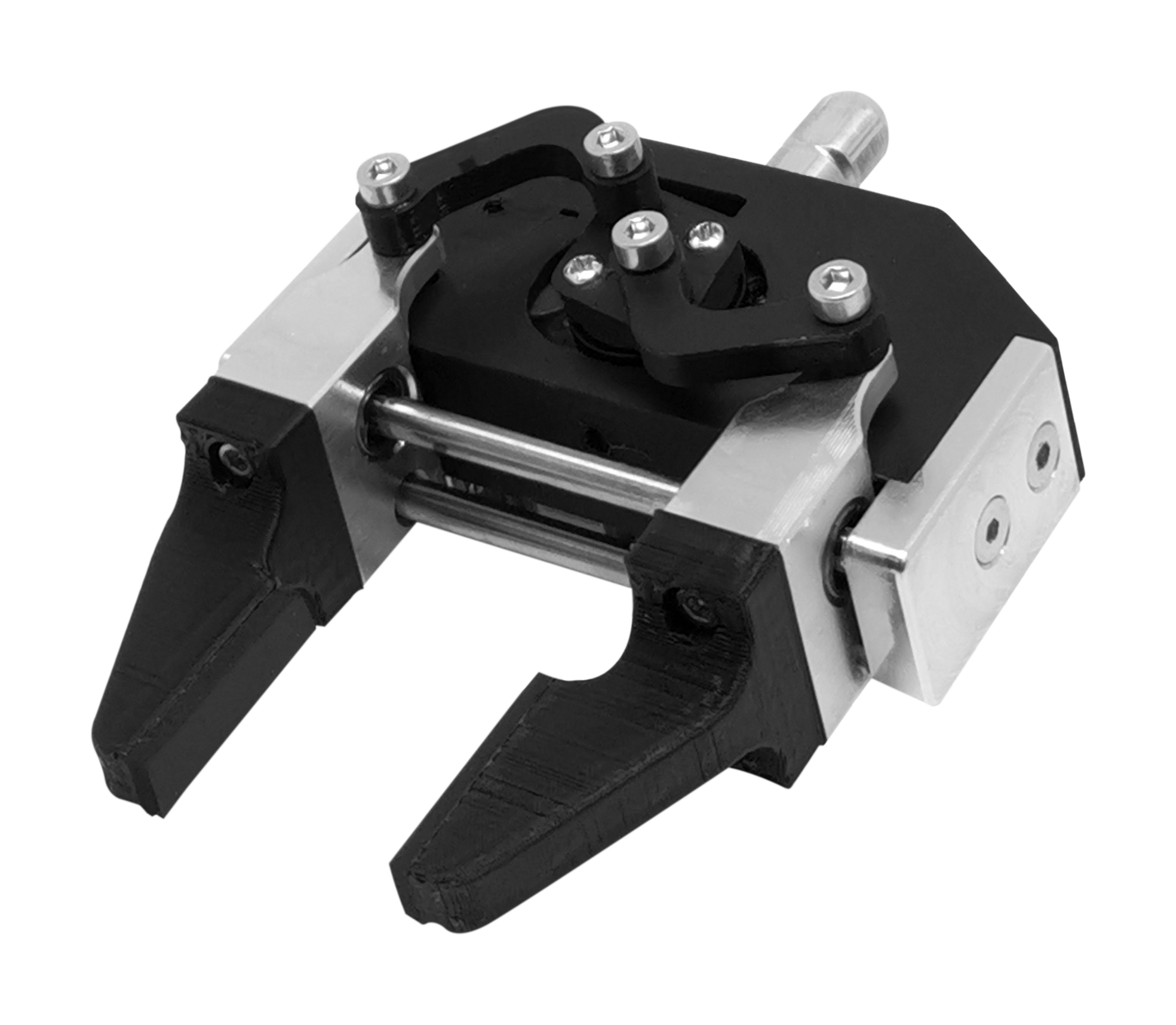

  • Precision Jaws : With the precision jaws, it is now possible to catch small objects placed in tight handling areas (e.g. catch a small object placed near other objects).

Weight 101g / Power supply 7.6V / Max operating width 21.57 mm / Picking distance from end effector base 85 mm / Motor XL-320 Servo Motor / Operating temperature 5-45°C

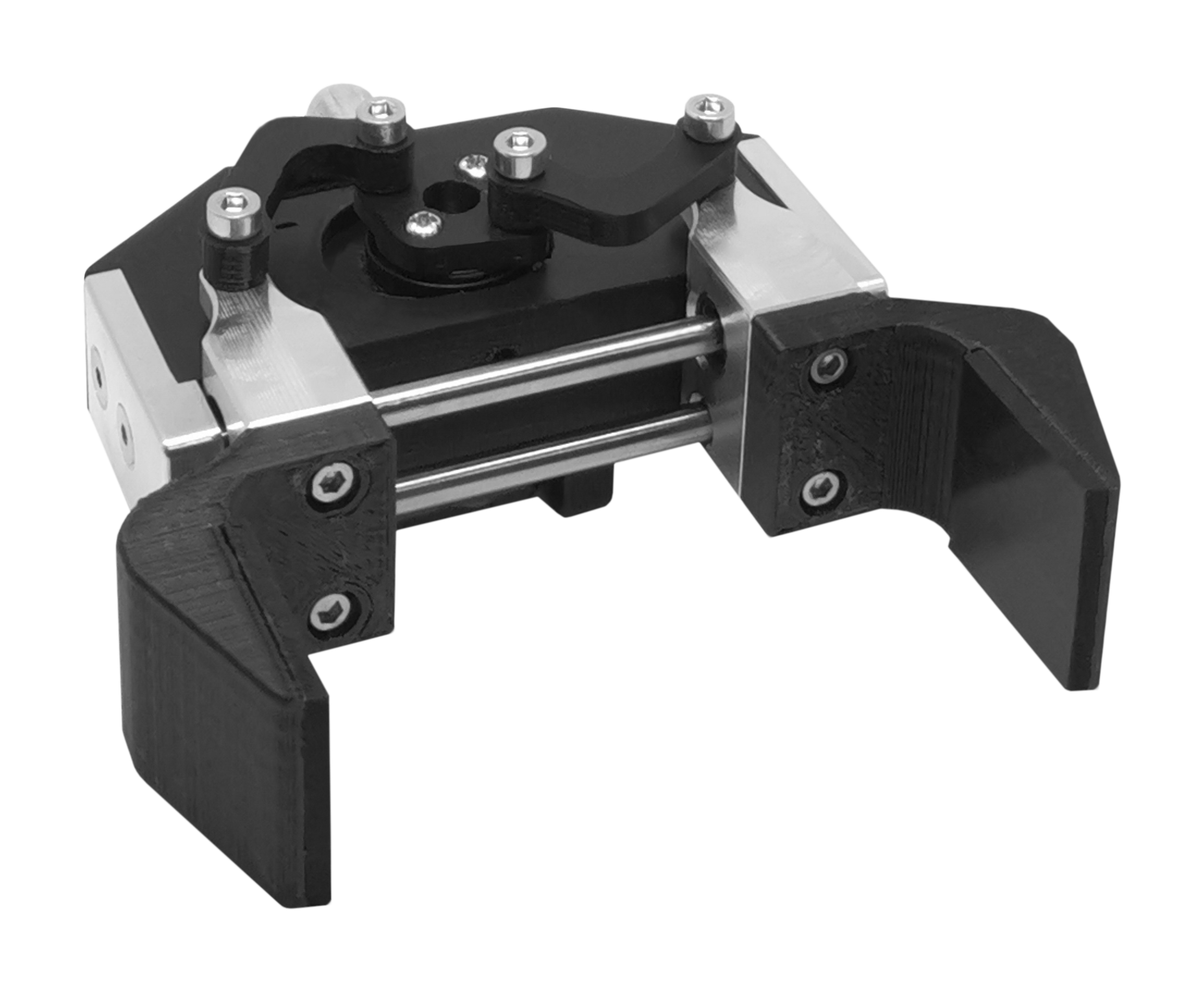

  • XL Jaws : The XL jaws allow you to manipulate large objects.

Weight 107g / Power supply 7.6V / Max operating width 73.92 mm / Picking distance from end effector base 85 mm / Motor XL-320 Servo Motor / Operating temperature 5-45°C

This set of jaws is sold without a gripper. Only the jaws are supplied in this set.

Jaws pack Niryo NED
