Standard And Education Conveyor Niryo NED

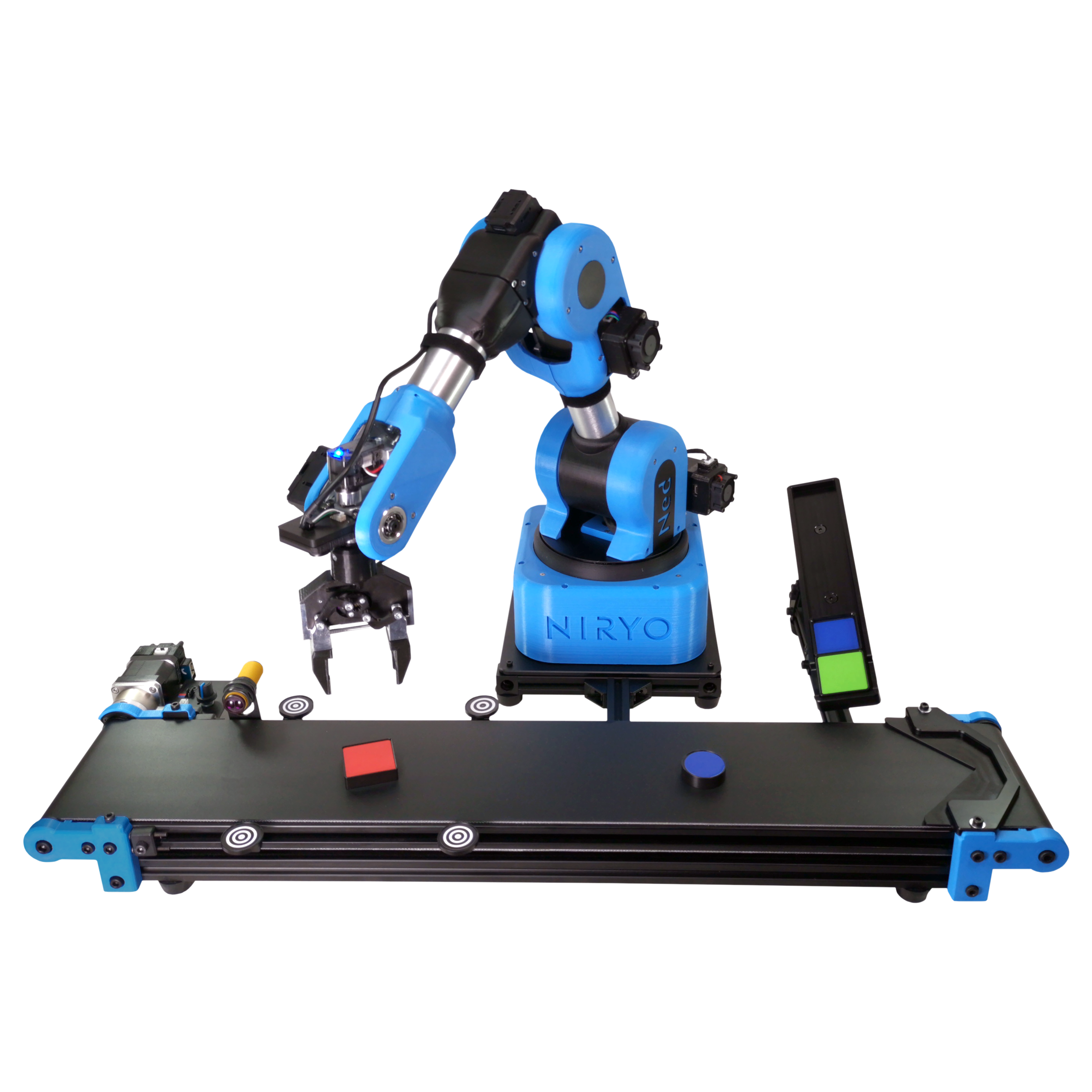

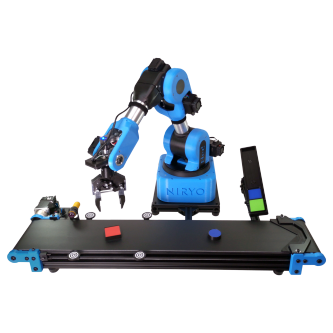

​Niryo NED Standard or Education Conveyor

Prototype an industrial production line with this autonomous conveyor.

Main features

• Bidirectional
• Adjustable speed
• Autonomous
• Fits in the Niryo NED Ecosystem

Controlling the conveyor

With Niryo NED

1. Connect the conveyor Belt to the Niryo NED
2. Choose your programming method (Niryo Studio, Python API…)
3. You are ready to control the production line.

Optional : Mount the photoelectric switch on the conveyor and connect it to the Niryo One

Independently

1. Connect the control module to the motor
2. Plug the power supply
3. The conveyor is working in autonomy.

Use the variator to adjust the direction and the speed

Optional : Mount the photoelectric switch on the conveyor and connect it to the controller module

What's included in the conveyor Niryo Standard or Education versions

• 1 x Conveyor Belt
• 1 x Infrared module
• 1 x Control box (for an autonomous use)
• 1 x Power supply (for an autonomous use)
• 1 x Set of cables‌
• 6 x Objects to handle (3squares and 3 rounds) (Education version only)
• 2 x Upgraded jaws for the Custom Gripper (Education version only)
• 4 x Vision workspace landmarks (Education version only)
• 1 x Conveyor end stop (Education version only)
• 1 x Slope (Education version only)

Additionnal informations

• Effective Delivering Distance 700 mm
• Dimensions 712 mm × 225 mm × 60 mm
• Direction of movement Bidirectional
• Maximum speed 38 mm/s
• Maximum payload 2Kg
• Drive Mode Niryo Stepper Motor
• Control Method Niryo Studio / Python API / Niryo One Modbus / Arduino

IR sensor

• Power 4.5 V – 5.5 V
• Signal Digital input
• Range 6 cm – 80 cm
