Vacuum Pump For Niryo NED Robot

Vacuum pump for moving objects
Niryo

A vacuum pump is a very efficient system for "pick and place" (moving objects). With this tool you can remove plastic lids from cans, move soda cans, or large objects with a flat, non-porous surface. Most vacuum pumps make so much noise that it is impossible to work next to the robot. The pump developed by Niryo is different: it is quiet, but has the same efficiency as a normal vacuum pump, for the same price. A servomotor activates a syringe that will suck air to catch the object.

The box of this vacuum pump is customized Niryo and sold alone.



> Read more
Order
Site Reference : RA_NIR016
Manufacturer Reference :

+ -
Available
Shipped within 2 to 8 Days
142,80 €

Vacuum pump Niryo NED

  • Weight (on the end effector tool) 10 g
  • Total weight 170g
  • Payload 300g
  • Picking distance from end effector base 47 mm
  • Vacuum Pump control Integrated XL320 Servo Motor
  • Power Supply 7.6V
  • Operating temperature 5-45°C
  • Vacuum tube dimension 20mm

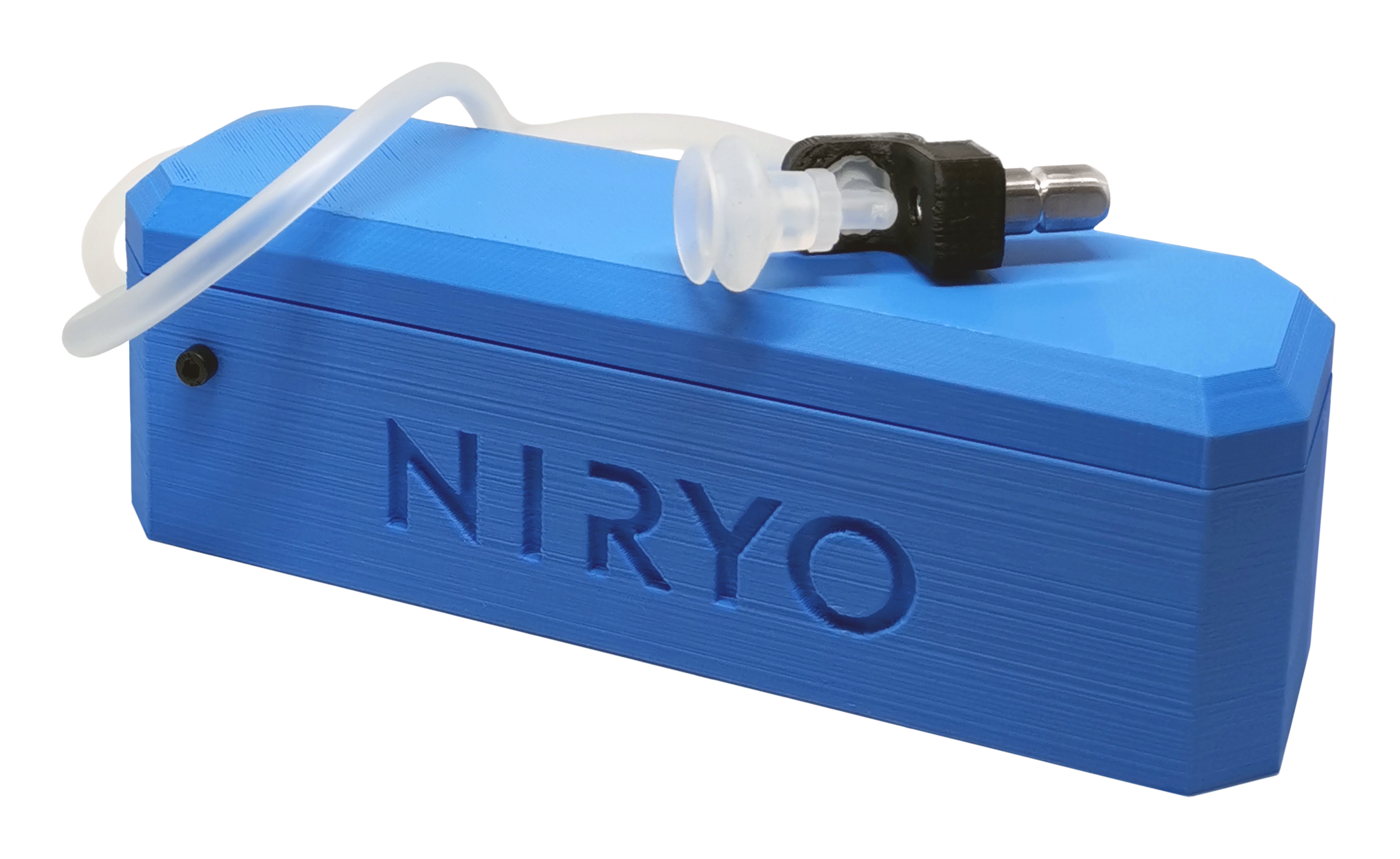

Niryo NED vacuum pump
