Vision Set For Robot Niryo NED

Object detection and choice of objects to interact with
Niryo

Give new perspectives to your projects and prototype advanced industry 4.0 processes with the Vision Set.

The Vision Set gives Ned the ability to detect objects and select the ones you want to interact with. It comes with a camera and objects of different shapes and colors to allow you to prototype advanced Industry 4.0 processes thanks to the inputs of vision.

> Read more
Order
Site Reference : RA_NIR018
Manufacturer Reference :

+ -
Available
Shipped within 2 to 8 Days
838,80 €

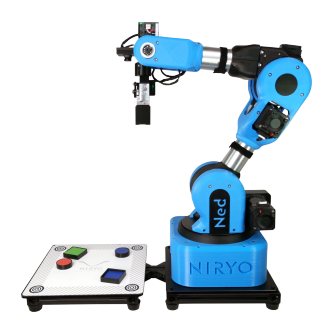

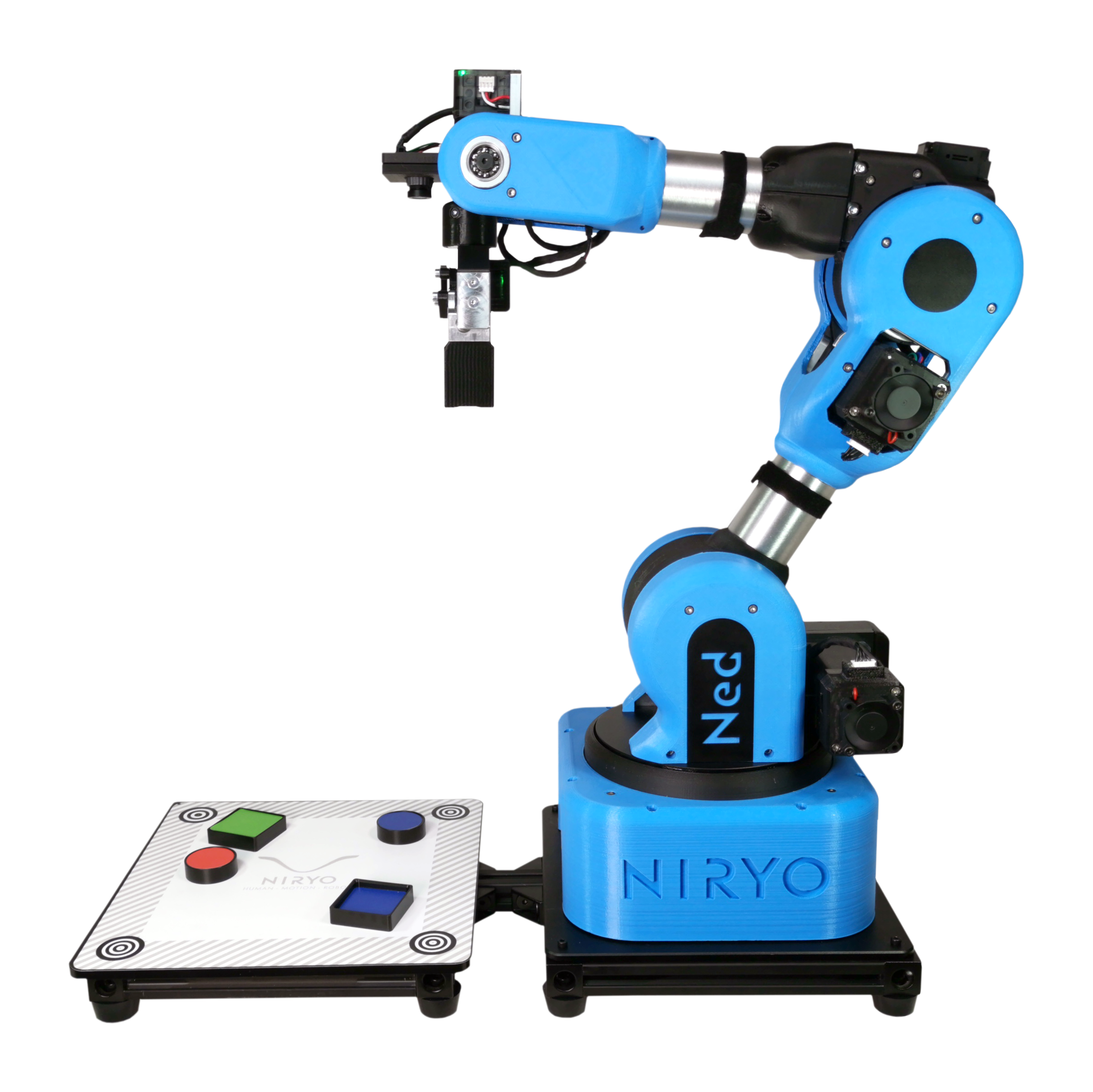

Vision set for Niryo NED robot

The Workspace, also included in the Vision Set, is designed to work horizontally, vertically or even tilted. Its design, based on nano-suction technology, makes it sticky and repositionable.

Main features

  • Object detection based on shape and color
  • Easily perform advanced functions such as visual picking thanks to the new blocks in Niryo Studio's Blockly interface.

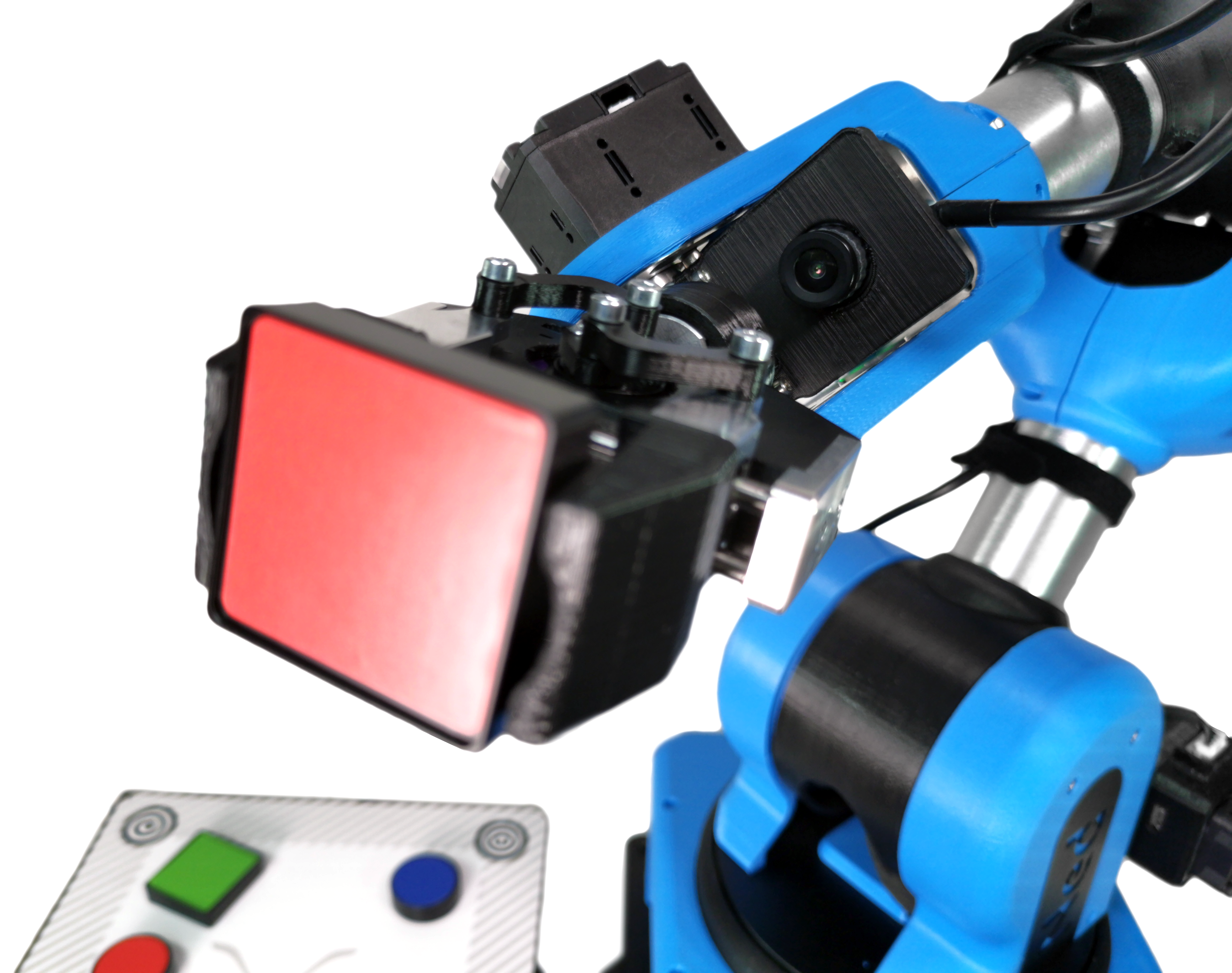

  • An onboard camera on the wrist for a global field of view
  • A modular workspace that can be attached to Ned using the mechanical connector, or used in the orientation and inclination of your choice.
  • It’s adapted to the Ned ecosystem.

Using the Vision Set

  • Install the Vision module on the robot
  • Connect it to the robot
  • Choose your programming approach:

With Niryo Studio Perform a workspace calibration / Open the visual programming interface (Blockly) / Use the new blocks to perform advanced functions.

With a TCP script Use the TCP Client/Server environment of the robot / Write a script in the desired programming language. / Use the new functions introduced by the Vision Set.

Content of the pack Vision Set niryo NED

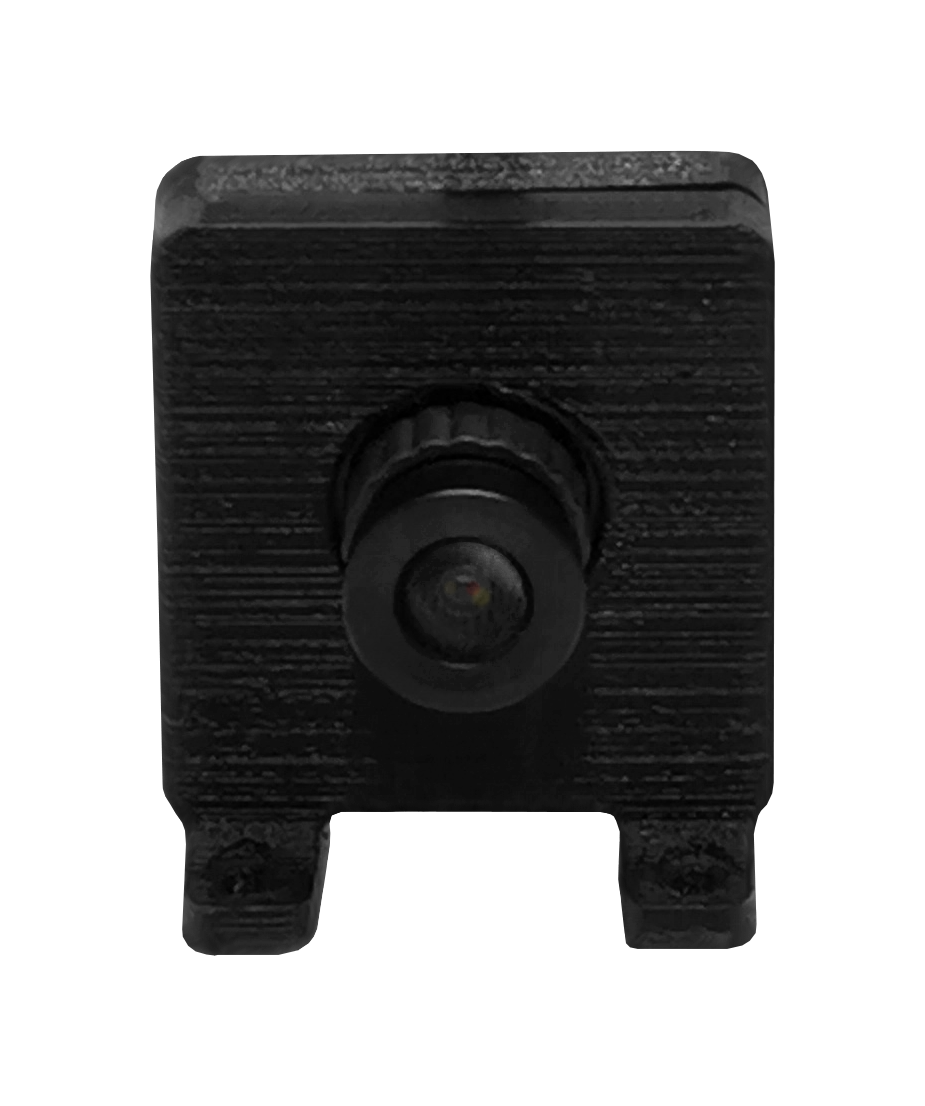

  • 1 x Camera
  • 1 x Wrist with camera support
  • 1 x Workspace support
  • 4 x Fasteners to fix the plans to the support
  • 1 x Workspace
  • 1 x Calibration plan
  • 1 x Calibration tool
  • 6 x Objects to handle (3 squares & 3 rounds)

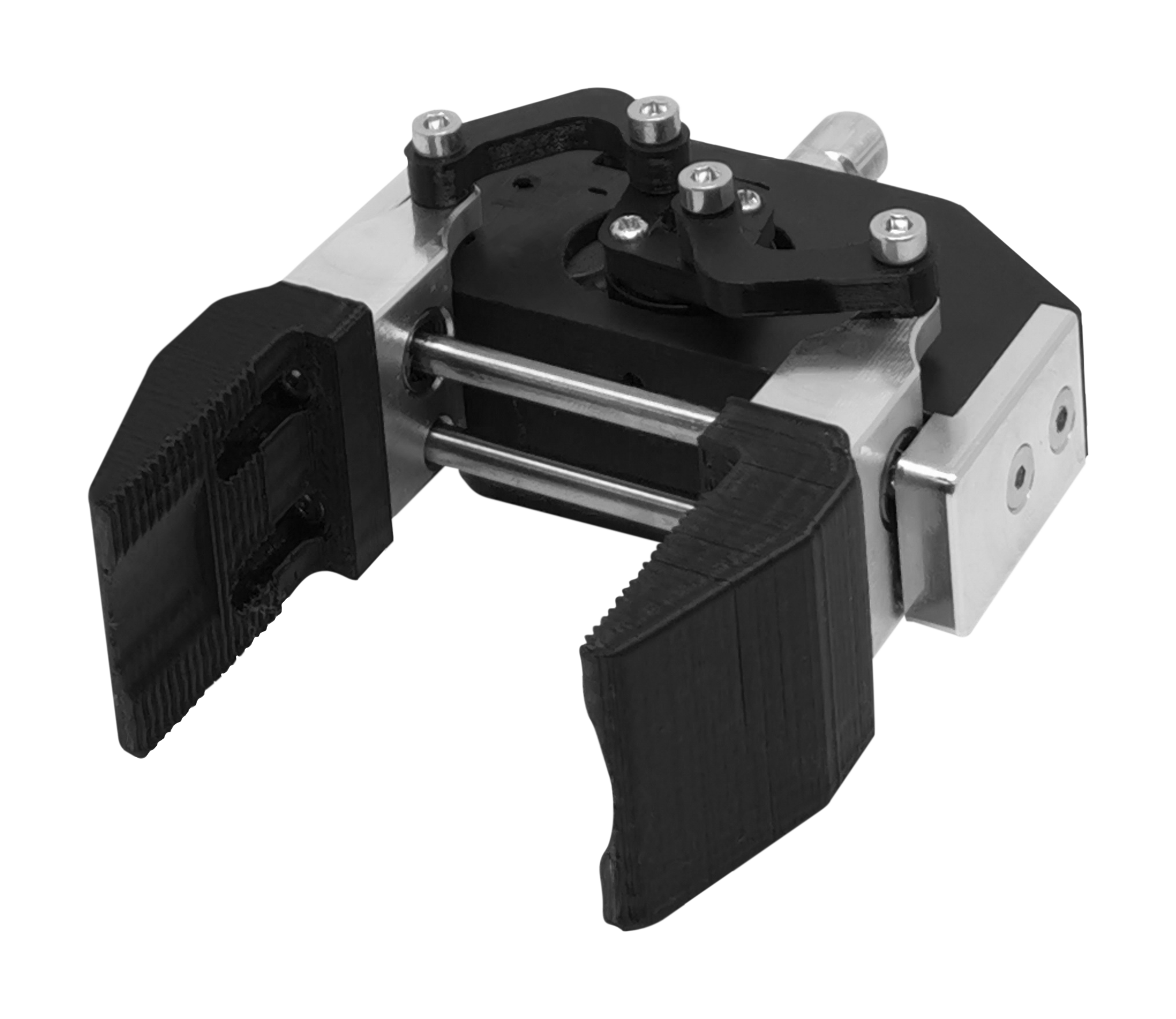

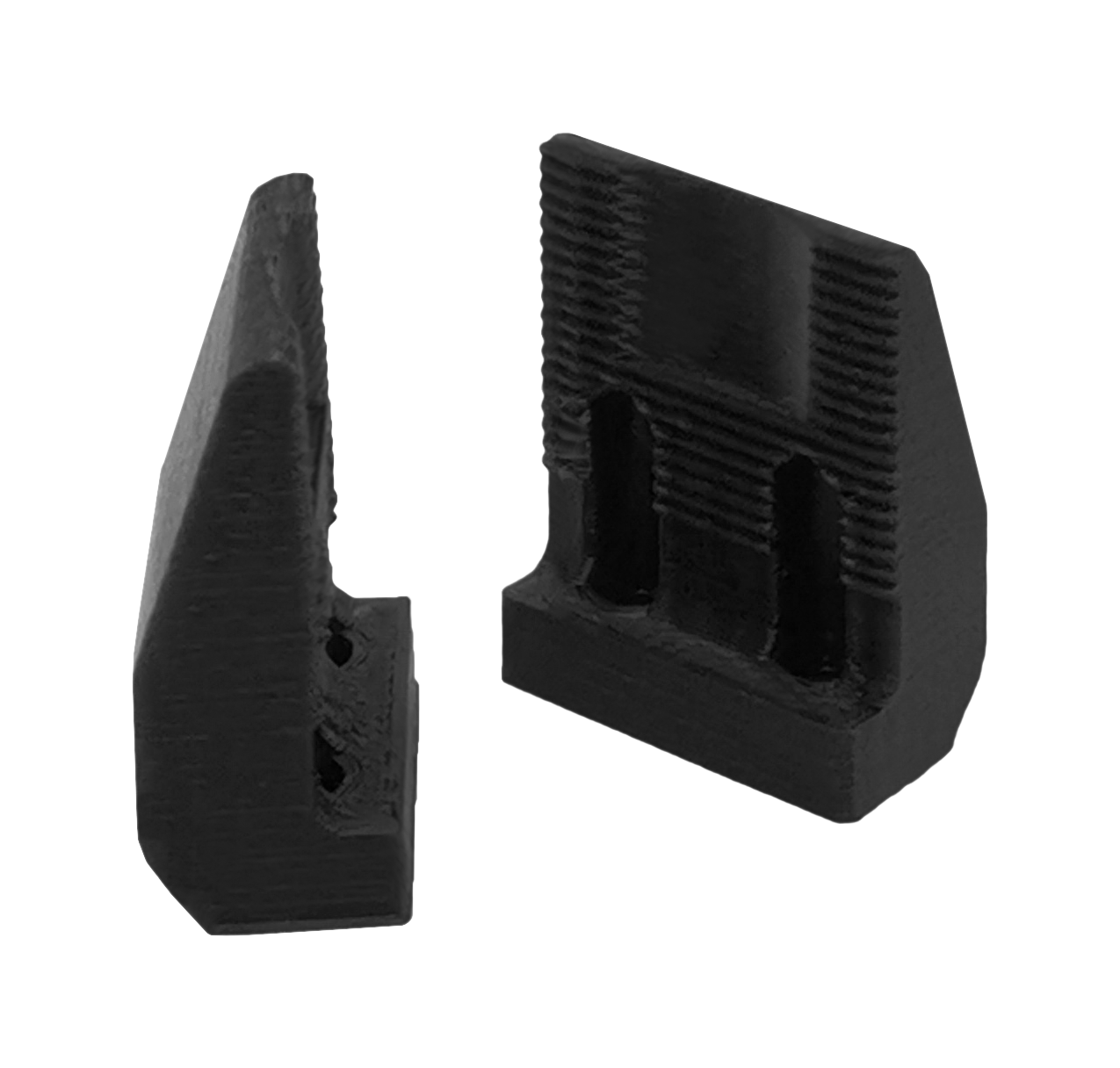

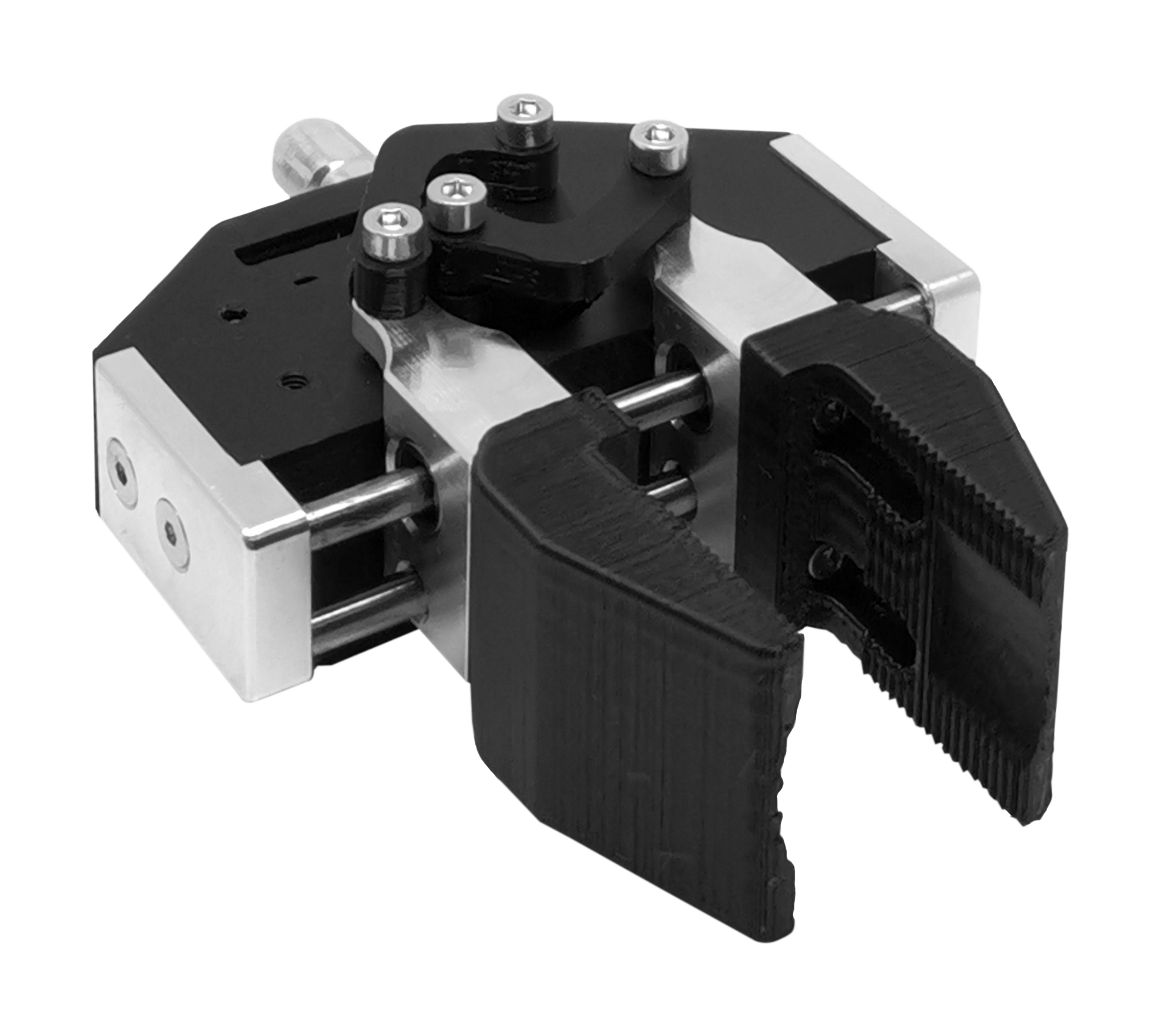

  • 2 x Improved jaws for the Custom Gripper
  • 1 x USB cable
  • 2 x Tape scratches to attach the cable
  • 1 x Mechanical connector for Ned

The Vision Set is sold with the content mentioned above.



Vision set Niryo NED



  • 1 x Camera
  • 1 x Wrist with camera support
  • 1 x Workspace support
  • 4 x Fasteners to fix the plans to the support
  • 1 x Workspace
  • 1 x Calibration plan
  • 1 x Calibration tool
  • 6 x Objects to handle (3 squares & 3 rounds)
  • 2 x Improved jaws for the Custom Gripper
  • 1 x USB cable
  • 2 x Tape scratches to attach the cable
  • 1 x Mechanical connector for Ned
