Cable Holder Wallbox Amtron Standard E 11/22
Cable holder box in Amelan silver color RAL 9006 and black RAL 9005 in the lower part to charge your electric car at home. enjoy exceptional comfort in terms of use, safety and functionality.its design will allow you to hang easily and quickly the cable in a single gesture.the operating status will be indicated through LED. Four backlit symbols will indicate availability, charge in progress, time remaining or the presence of a fault.
Equipped with a type 2 charging socket with shutter, adjustable power from 11 to 22 KW, 1 charging contactor 32A 4P, 1 key switch, 1 Stop/Reset button, LED status display, 5 rigid 10mm² connection terminals.

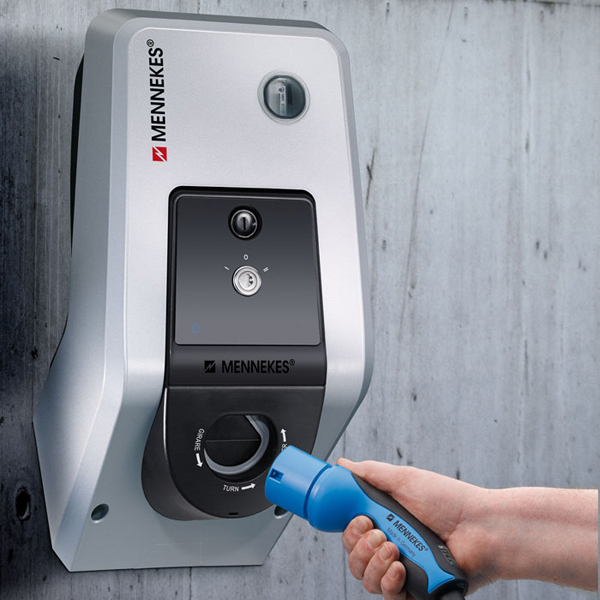

Electric car charging box Amtron Standard E 11/22 KW T2S
The cable holder is made of Amelan, silver color RAL 9006 and black RAL 9005. It offers exceptional comfort in terms of use, safety and functionality. Four backlit symbols will indicate availability, charge in progress, time remaining or the presence of a fault.
Equipped with a type 2 charging socket with shutter, adjustable power from 11 to 22 KW, 1 charging contactor 32A 4P, 1 key switch, 1 Stop/Reset button, LED status display, 5 rigid 10mm² connection terminals.
Cable entry from the bottom or from the top Dimensions: 475 x 259 x 220 mm
CAUTION :
- Provide upstream a circuit breaker curve C 16A for 11KW and 32A for 22KW AND a differential switch 30mA TYPE B!
- This installation requires the intervention of a professional so that the material is under guarantee. The installer makes the warranty request himself during the installation.
- The shipping time can vary between 3 and 7 days. This delay can vary and will be communicated to you precisely by e-mail at the time of your order.
Customs code : 85371098 FOR TT AND TN-S NEUTRAL REGIME
