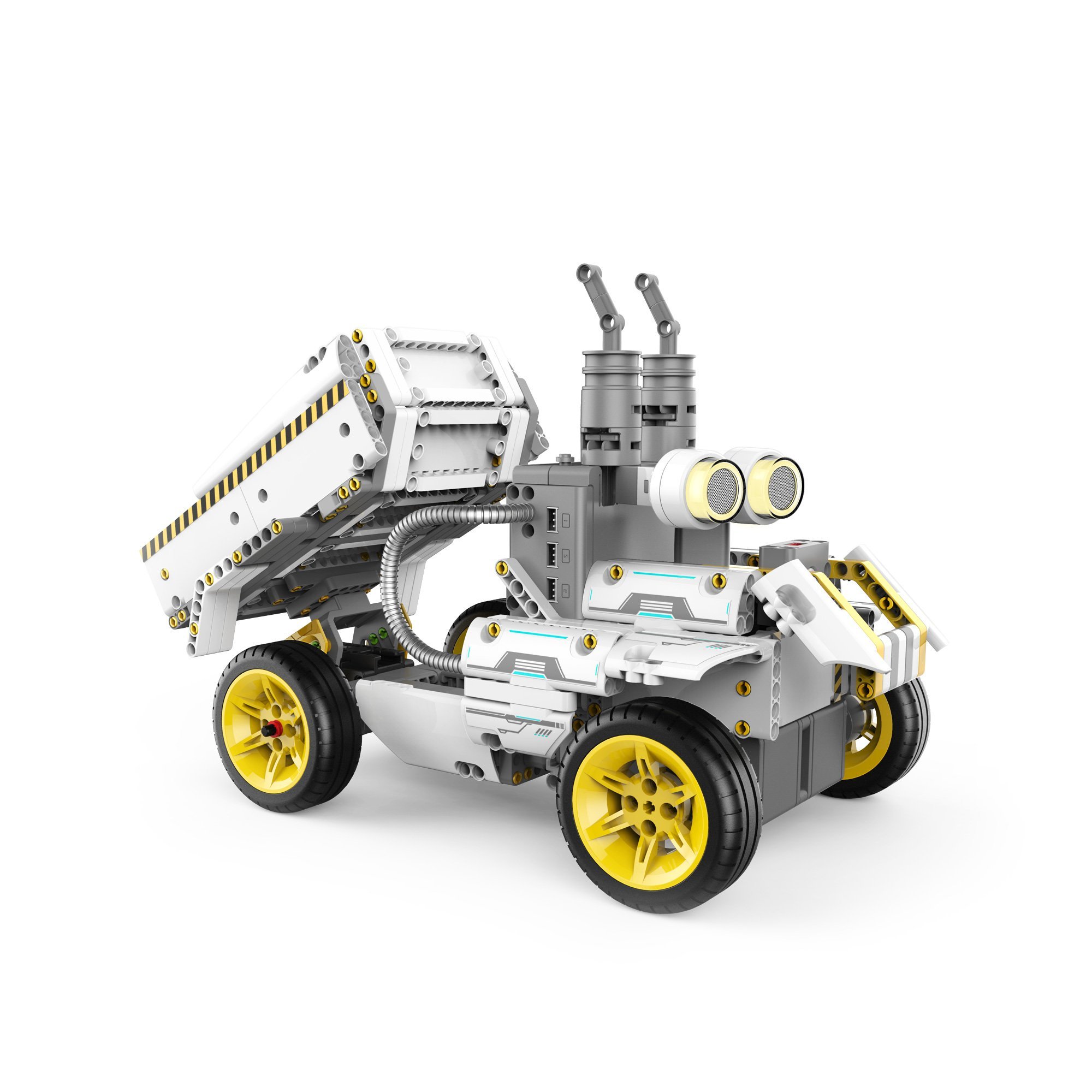

JIMU Robot TruckBot Educational Robot
The JIMU robot TruckBot kit is the perfect kit to learn robotic construction but also programmable. This Ubtech robot is a hybrid between toy robot, educational robot and contains 410 parts that can be easily interlocked to create two different robot models with which children can have fun but also learn programming very simply.
This robot is fun, interactive, fun and works with 4 AA 1.5V batteries included in the box.
TruckBot programmable construction robot
This toy and educational robot takes its entertainment role very seriously and it starts right from the construction stage. It is done in a simple, intuitive and fun way thanks to construction instructions given in 3D via the free JIMU Robot application. A modern and different experience for fun and educational construction: each step is indicated so that even novices can create their own robot.
The JIMU robot TruckBot contains 410 plug-in parts with connectors and allows you to create two proposed construction robots or a unique model straight out of your imagination. This JIMU Robot offers many possibilities to discover throughout the construction and programming process:
- Interactive, codable, interactive, assembly robots for learning and playing on the theme of construction
- 410 plug-in parts, interchangeable to build a GravelBot, DozerBot, or a unique creation

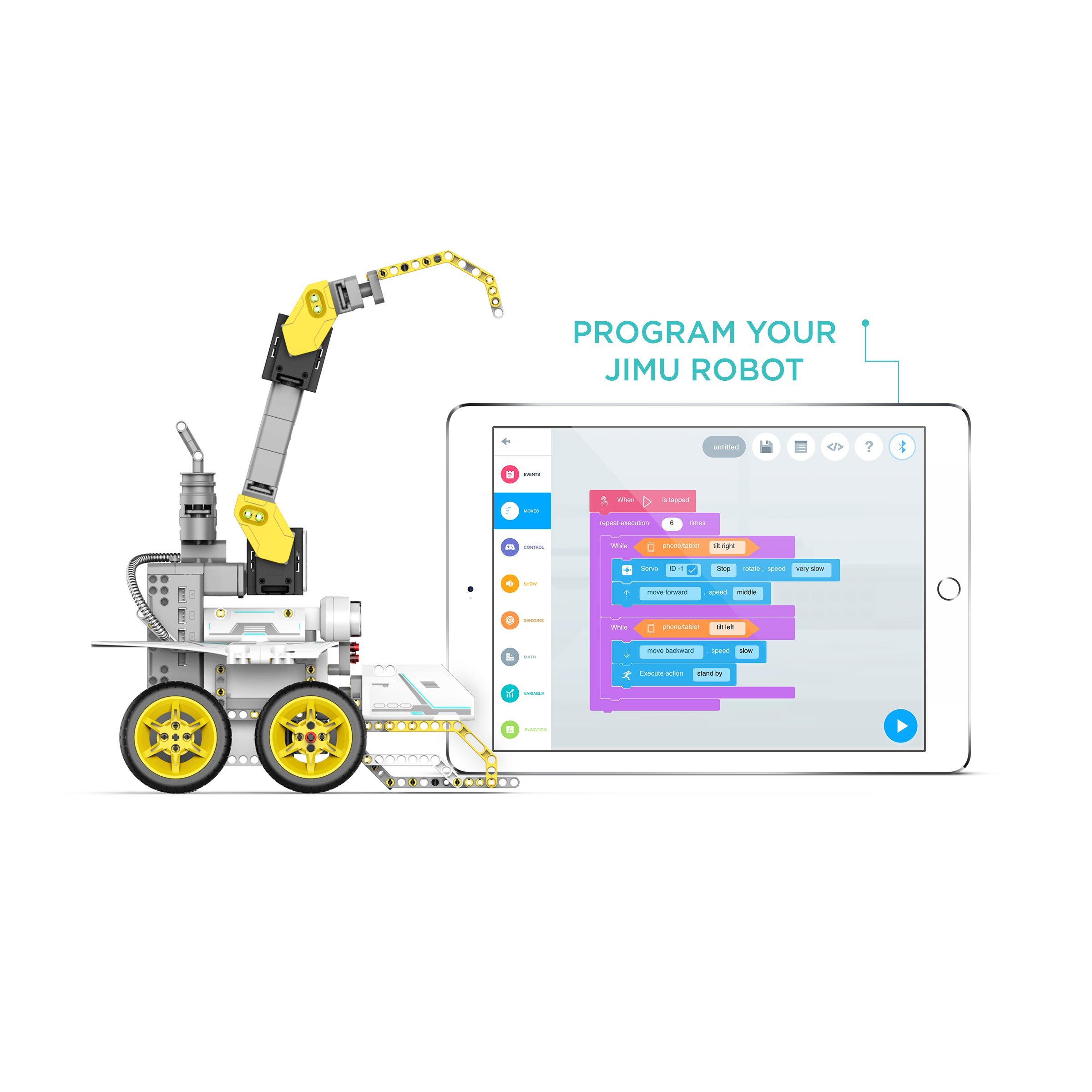

- Program your robot to drive, explore, move, and much more using Blockly coding in the JIMU application
- Create custom actions with the PRP function (Installation, Recording, Playback)

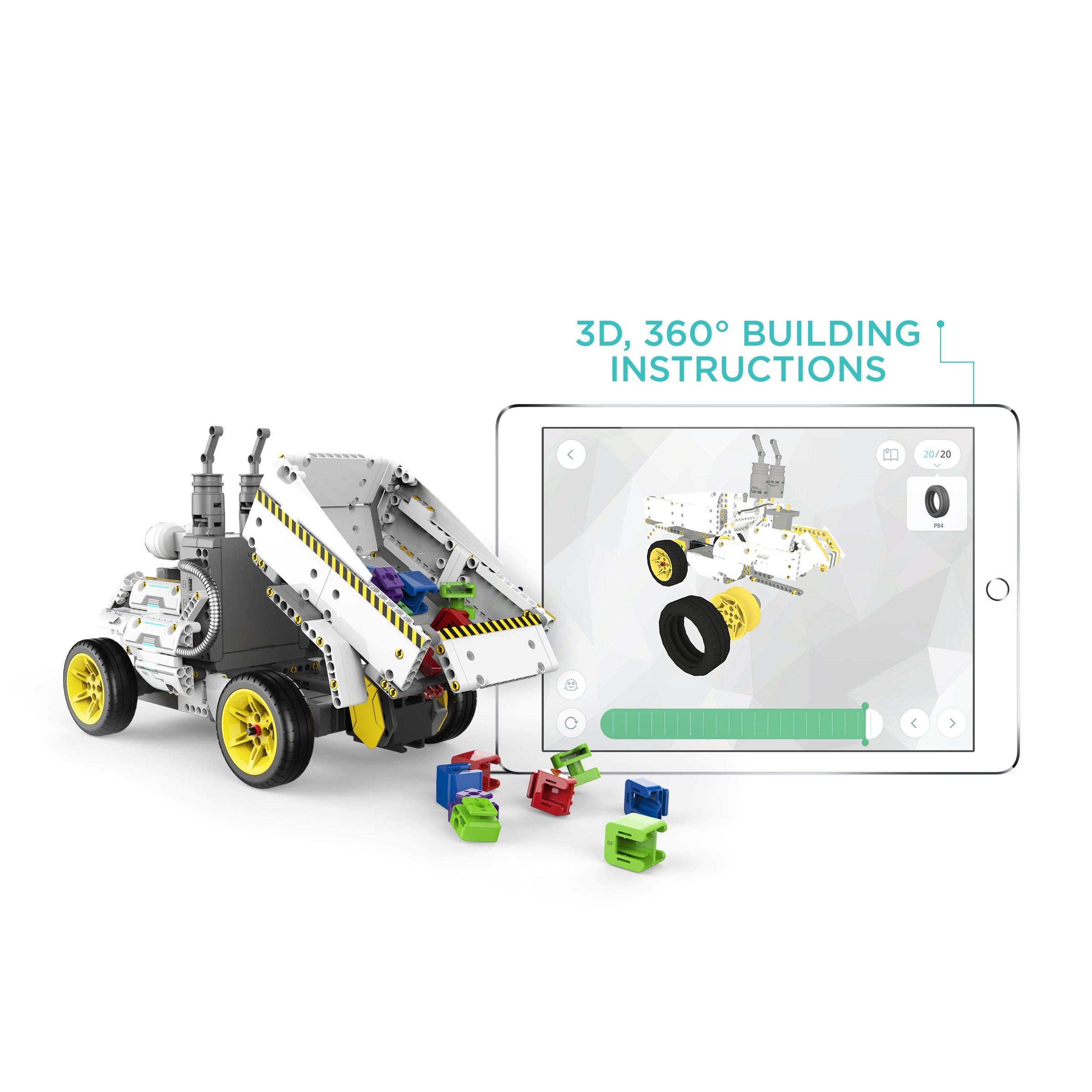

- No tools required - our 3D animated 360° construction instructions make it easy
TruckBot by JIMU Robot: technical specifications
DC6V (4 alkaline batteries) Working current: 0.5A
2A Working temperature:
5 ° C
60 ° C CPU master chip: ARM processor
Cortex
M4 32 bits, 64 MHz Memory: 32Mbit Communication: UART & BLE Peripheral interface Charging port: none Switching port: 3PIN * 1 Motor and servo port and sensor: 3PIN * 8 Battery Type of battery: Alkaline battery Voltage: 6V Servo Amount: 2pcs Output torque: 4kg.cm Working voltage: 6.5
9.6V Working current: 80
200mA Locked rotor current: 1700mA Speed: 0.1sec / 60 ° Accuracy: without load 1/3 °, load 1 ° Lifetime: 150H Motor Quantity: 2pcs Working voltage: 7.4 V DC (6 ~ 10 V DC) No-load current: ≤180mA Locked rotor current: ≤1.5A Output torque: ≥2kgf.cm No-load speed: 140 ± 10% rpm Ultrasonic sensor Quantity: 1pcs Power: .80,8W Ultrasonic frequency: 40KHz Measurement angle: ≤30 ° Measurement distance: 3CM ~ 400CM Color: white + grey Size: 50 MM * 48 MM * 24 MM Working temperature:
10 ~ 50 APP Support Android version 5.0 and higher; iOS version 9.0 and higher Accessory Quick Start Guide * 1, Parts List * 1, Double A alkaline battery * 4
- 410 PLUG-IN PARTS WITH CONNECTORS
- 2 ROBOTIC SERVOMOTORS WITH FLUID MOVEMENTS
- 2 DC MOTORS WITH FAST MOVEMENTS
- 1 ULTRASONIC SENSOR WITH RVB LIGHTS
- 1 MAIN CONTROL BOX
- 4 X ALKALINE BATTERIES AA 1.5 V
